    MPO MTP Fiber Optic Patch Panel , 144 Fiber 12 Core Optical Fiber Patch Cord

    Ask Lasest Price
    Brand Name : KCO
    Model Number : MPO-1U-144-LC
    Certification : RoHS, ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 2~7 days after get payment
    • Product Details
    • Company Profile

    MPO MTP Fiber Optic Patch Panel , 144 Fiber 12 Core Optical Fiber Patch Cord

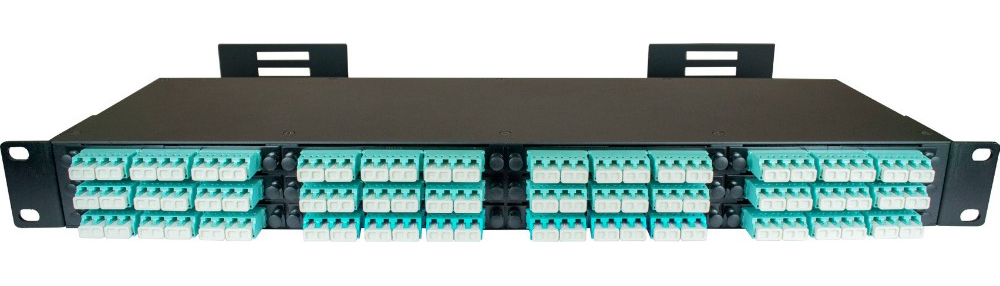

    144 Core 1U MPO Fiber Optic Patch Panel / MPO LC Fiber Optic Fanout Patch Cable Rack Mount


    Our advatanges:

    - Kocent Optec Limited is one of lead pass fiber optic product supplier in China.

    - Kocent Optec Limited with more than 10 years of experiences in fiber optic industry, we provide OEM and ODM service for all type of MPO/MTP rack mountable patch panel.

    - With full set of production line for steel tape production (to make all type of ODF) and production line for MPO patch cord, we supply the MPO/MTP patch panel with full loaded of patch cable and adapter.

    - All installation charge is free.


    Descriptions:

    Fiber Capacity of panel12-144 core(12 24 48 port usually)
    Panel ConnectorSC LC ST FC
    TypeFixed
    Dimension19'' 1U/2U/3U/4U...
    MaterialCold Rolled Steel or Aluminum
    Storage Temperature-45~+65℃
    Thickness1.0 1.2 mm
    AccessoriesCable ties, mounting ear screws, and spiral wrap tube
    MPO type

    SM: G652D, G657A1, G657A2

    MM: OM1, OM2, OM3, OM4, OM5

    CoverLSZH
    Length0.3m, 0.5m

    Quick informations:

    - Connector 1: MPO, MTP fanout patch cable

    - Connector 2: LC, FC, ST, SC or customized 8 to 24 strands cable

    - Cable length: 0.3m, 0.5m, 1.0m, 1.5m or customized

    - Patch panel size: 480x245x1U(mm)

    - Capacity: 144 cores

    - Maximum upload with 12 pcs of face plate


    Features:
    - 19" standard size , easy install
    - Light weight, strong strength, good anti-shocking and dustproof
    - Well cable management, cable can be distinguished easily
    - Roomy space ensure fiber bent ratio
    - Provides a complete system solution for connectivity
    - Provide higher patch field density in fewer rack units saving valuable space
    - Assures flexibility and ease of network deployment and moves, adds, and changes


    Product detail:


    MTP/MPO Connector Specifications:

    TypeSingle ModeSingle ModeMulti Mode
    (APC Polish)(UPC Polish)(PC Polish)
    Fiber Count8,12,24 etc.8,12,24 etc.8,12,24 etc.
    Fiber TypeG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
    Max. Insertion LossEliteStandardEliteStandardEliteStandard
    Low LossLow LossLow Loss
    ≤0.35 dB≤0.75dB≤0.35 dB≤0.75dB≤0.35 dB≤0.60dB
    Return Loss≥60 dB≥60 dBNA
    Durability≥500 times≥500 times≥500 times
    Operating Temperature-40℃~+80℃-40℃~+80℃-40℃~+80℃
    Test Wavelength1310nm1310nm1310nm
    Insert-pull test1000 times<0.5 dB
    Interchange<0.5 dB
    Anti-tensile force15kgf

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
