12FO Fiber Optic Distribution Box / 1U 12core Fiber Optic ODF Unit
For 19'' Distribution Frame
Description:
- ODF unit box, fiber optic splicing and distribution box, also
named ODF fiber management system.
- It is used for cable inputting, fixing, protecting, and splicing
with pigtails. The product is specially designed for fiber
distribution in fiber optic communication service center.
- It can be installed in the distribution frame, and can be also
assembly with digital distribution unit, and audio distribution
unit together in one fiber optic composite cabinet.
- The product is with flexible configuration, easy to install and
maintain, convenient to manage.
- It is the necessary device in termination of fiber optic network,
and can realize the distribution at the intermediate route.
- The fiber optic distribution Unit is designed to use in the
standard 19 inch fiber optic distribution frame.
- It can be 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and
even 144 cores.
- The high of unit box can be 1U, 2U, 3U, 4U or 6U. We can supply
full loaded with adapter and pigtail of diber optic ditribution
unit.
- With common adapter port, we can use many type of fiber optic
adapter on it such as SC, LC, FC square, ST, E2000, etc.
Quick Information:
| Part number | KCO-ODFU-12 |
| Size | 485x300x44.5mm |
| Capacity | 12 cores (for SC), 24 cores (for LC) |
| Material | Steel |
| Cable | Outdoor cable, indoor cable, ftth cable |
| Cable diameter | Max. 22.0mm |
| Adapter | SC, LC, FC, ST, E2000, etc |
| Pigtail | SC, LC, FC, ST, E2000, etc |
Dimension:
| P/N | Capacity | Dimension | Weight |
| KCO-ODFU-12 | 12 cores | 485x300x45mm | 3.9kg |
| KCO-ODFU-24 | 24 cores | 485x300x75mm | 4.7kg |
| KCO-ODFU-48 | 48 cores | 485x300x140mm | 6.9kh |
| KCO-ODFU-72 | 72 cores | 485x300x198mm | 9.2kg |
| KCO-ODFU-96 | 96 cores | 485x300x252mm | 11kg |
| KCO-ODFU-144 | 144 cores | 485x300x340mm | 14kg |
Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc
Features:
- It is composed of case body, fiber optical splice tray and
adaptor fixing frame.
- It is devised into two parts, one links with optical cables for
fusion connection between optical cable and fiber pigtail and
another links with patch cord.
- Combine fusion and connection, surplus fiber holding, and patch
cord holding in integration
- Surplus fibers can be twisted around two special plastic rings,
which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types
of adaptors, easy for operation and avoid any unexpected damage to
fiber.
- Cable can lead in from the bottom of the box, the entry is under
the protection of special rubber parts.

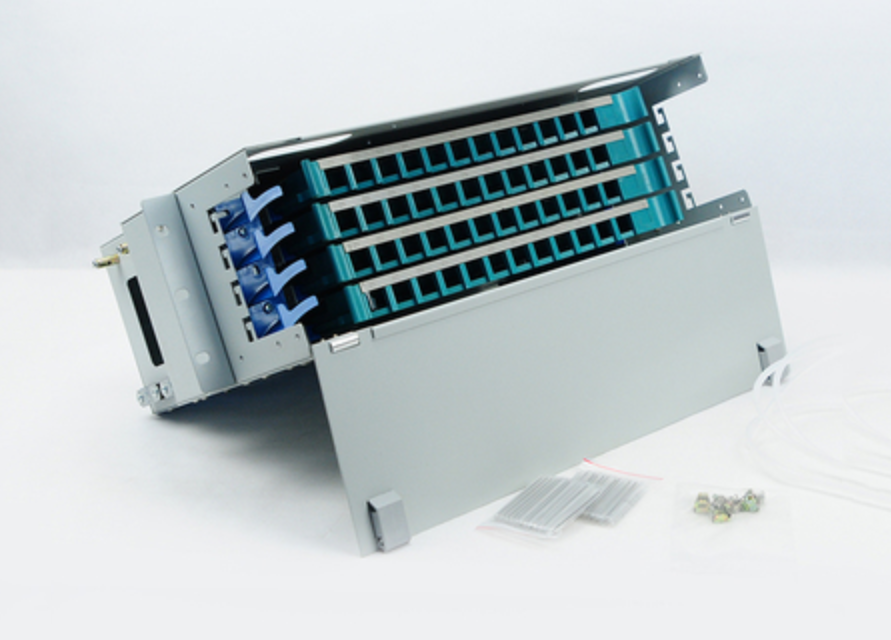

Product picutures:
Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa
Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)
