    FAT Fiber Optic Terminal Box 16 Cores GPX147 KCO-NAP-0216S Mechanical Sealing Structure

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-NAP-0216S
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FAT Fiber Optic Terminal Box 16 Cores GPX147 KCO-NAP-0216S Mechanical Sealing Structure


    KCO-NAP-0216S Outdoor Optica Fibra Distribution Box / 16 Cores GPX147 FAT Box

    Quick information:

    - Production name: Outdoor fibre optic distrinution box

    - P/N: KCO-NAP-0216S

    - Color: Light Gray

    - Material: ABS+PC

    - Size: 260*215*115mm

    - Weight: About 1.20kgs

    - Packing: 1pc/carton box

    - Install way: Pole mount, wall mount

    - Water-proof class: IP65

    Descriptions:

    - The outdoor fiber optic distribution spitter box KCO-NAP-0216S is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

    - The outdoor fiber optic distribution spitter box KCO-NAP-0216S is design to use for outdoor application.

    - The fiber access termination box is able to hold up to 16 subscribers.

    - It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

    - It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    - It maximum can install 1 pcs 1*8 mini type fiber optic plc splitter.

    - Its connector port is compatibility with Huawei mini SC APC water proof connector.

    - The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

    - It is suiable to use for FTTH, FTTA, FTTB, FTTO telecommunication project.


    Application:
    - FTTA, FTTH, FTTB, FTTC, FTTO
    - Telecommunication Network
    - Local Area Network
    - CATV


    Feature:

    - 16 outports for drop cable

    - 1 Pcs of 1*116 Splitter can be installed as an option

    - Can be used indoor and outdoor, wall mount and pole mount

    - Water-proof design with IP-65 Protection Level.

    - All stainless metal plate and anti-rusting bolts, nuts

    - Fiber bend radius control more than 40mm

    - Suitable for the fusion splicer or mechanical splice

    - Mechanical sealing structure and mid-span cable entry.

    Specification:
    ModelKCO-NAP-0216S
    IP Protection Grade65
    Raw MaterialABS+PC
    Number of splice trays1
    Maximum Cable Diameter (mm)18
    Max capacityPLC1*8, PLC1*16, 16SC
    End-use temperature-40~+85℃
    Adapterwaterproof SC simplex
    Weight1.2kg
    ColorLight Gray
    Dimensions260*215*115mm

    Technical data:
    1. Environmental requirement
    Working temperature: -40℃~+85℃
    Relative humidity: ≤85% (+30℃)
    Atmospheric pressure: 70KPa~106Kpa
    2. Main technical datasheet Insertion loss: ≤0.15dB
    UPC return loss: ≥50dB
    APC return loss: ≥60dB
    3. Thunder-proof technical datasheet
    The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.
    The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

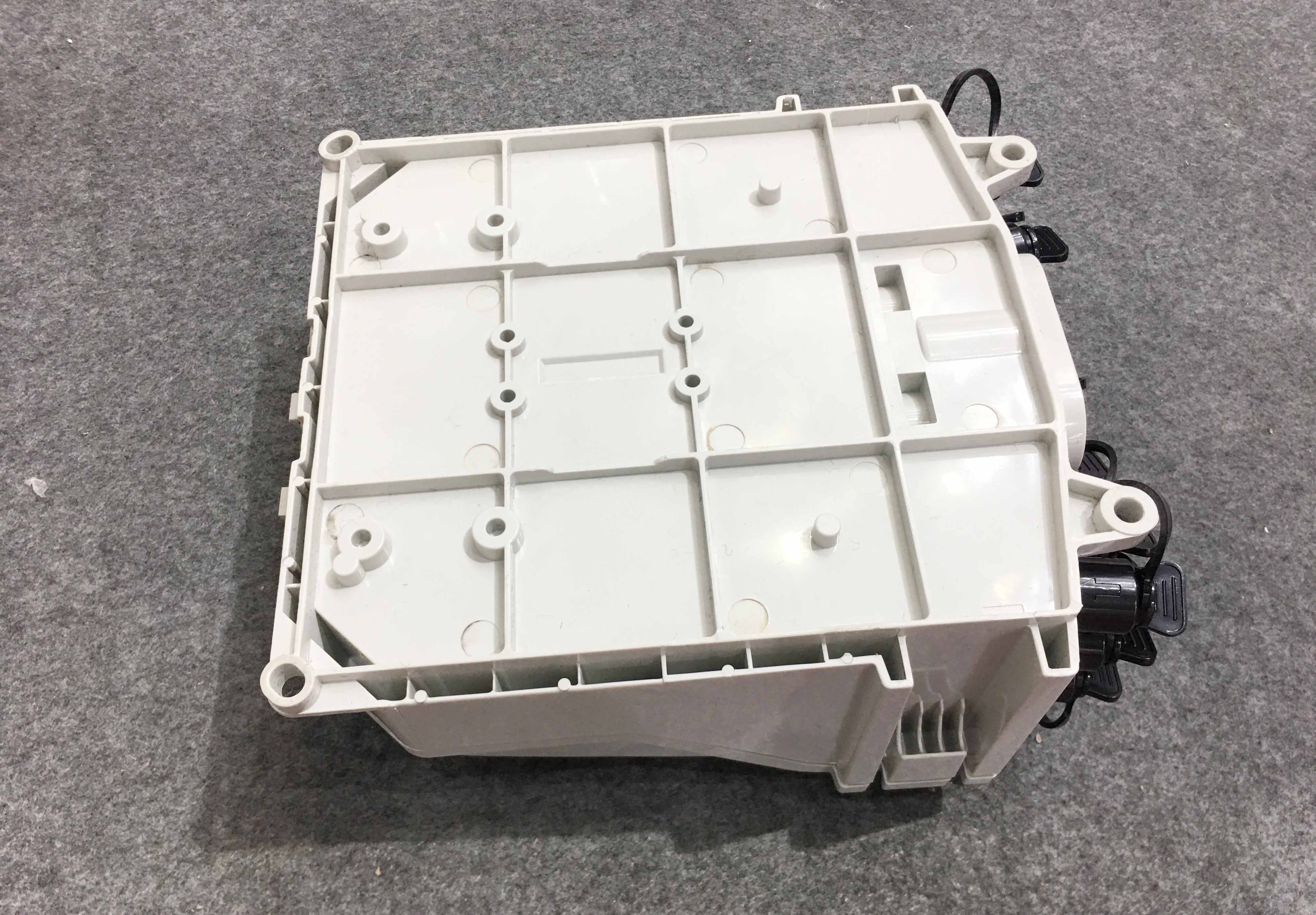

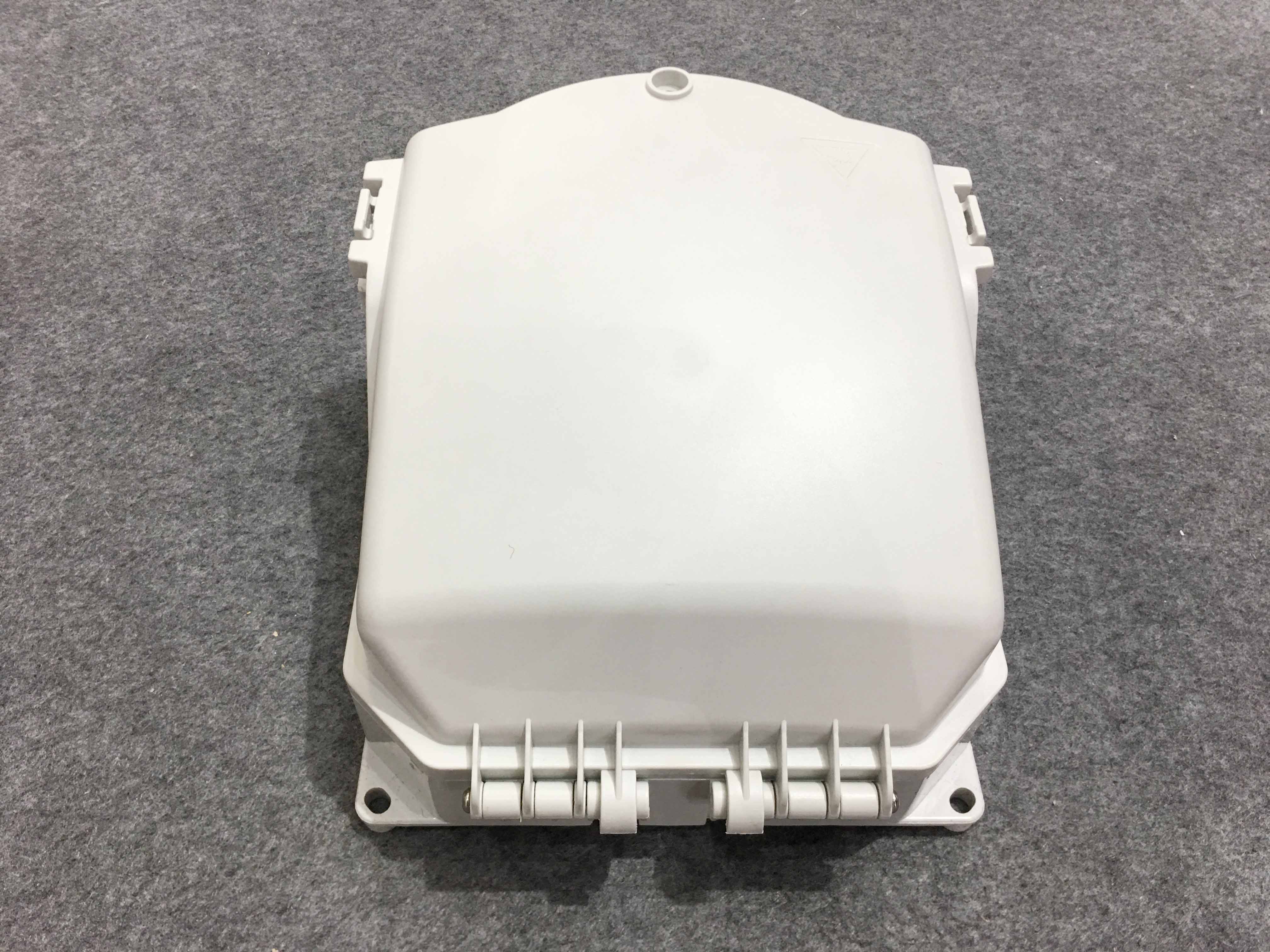

    Products photos:


    Related Products:

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
