    Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-GYXTC8S
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material


    2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW Fiber Optic Cable

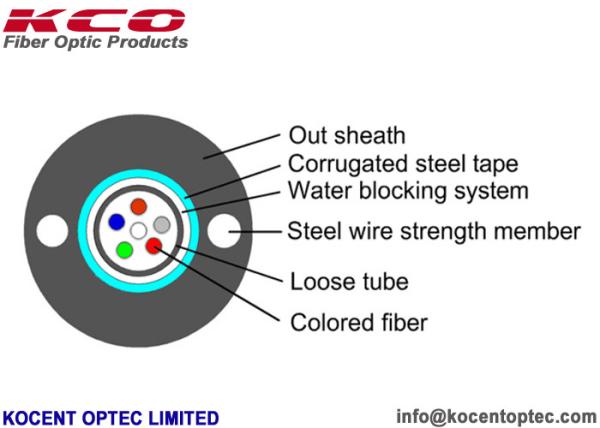

    Description


    - The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.

    - Two parallel steel wires are placed at the two sides of the steel tape.

    - The 250μm fiber is positioned in a loose tube made of a high modulus plastic.

    - The tubes are filled with a water-resistant filling compound.

    - The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.


    Application

    Usable in Duct / Aerial


    Features

    - High strength loose tube that is hydrolysis resistant

    - Special tube filling compound ensure a critical protection of fiber

    - Crush resistance and flexibility

    - Good mechanical and temperature performance

    - PSP enhancing moisture-proof

    - Two parallel steel wires ensure tensile strength

    - Small diameter, light weight and friendly installation

    - Storage / Operating Temperature: -40℃~+70℃


    Fiber Parameter

    No.ItemsUnitSpecification
    G.652D
    1Mode Field Diameter1310nmμm9.2±0.4
    1550nmμm10.4±0.5
    2Cladding Diameterμm124.8±0.7
    3Cladding Non-Circularity%≤0.7
    4Core-Cladding Concentricity Errorμm≤0.5
    5Coating Diameterμm245±5
    6Coating Non-Circularity%≤6.0
    7Cladding-Coating Concentricity Errorμm≤12.0
    8Cable Cutoff Wavelengthnmλcc≤1260
    9Attenuation (max.)1310nmdB/km≤0.36
    1550nmdB/km≤0.24

    Cable Parameters

    ItemsSpecifications
    Fiber Count2~24
    Colored Coating FiberDimension250µm±15µm
    ColorBlue, Orange, Green, Brown, Gray, White
    Loose TubeDimension2.10mm±0.05mm
    MaterialPBT
    ColorNatural
    Strength MemberDiameter1.0mm
    MaterialSteel
    Outer JacketDimension8.0mm±0.1mm
    MaterialPE
    ColorBlack

    Mechanical and Environmental Characteristics

    ItemsUniteSpecifications
    Tensio (Long Term)N600
    Tension (Short Term)N1500
    Crush (Long Term)N/10cm300
    Crush (Short Term)N/10cm1000
    Min. Bend Radius (Dynamic)mm20D
    Min. Bend Radius (Static)mm10D
    Installation Temperature-20~+60
    Operating Temperature-40~+70
    Storage Temperature-40~+70

    Technical Parameter

    Fiber CountCable Diameter (mm)Cable Weight (kg/km)

    Tensile Strength

    Long/Short

    Term (N)

    Crush Resistance

    Long/Short

    Term (N/100mm)

    Bending

    Radius Static/Dynamic

    (mm)

    2~126.0651000/30001000/300010D/20D
    14~248.0681000/30001000/300010D/20D

    Transmission Characteristics
    G.652G.65550/125μm62.5/125μm

    Max Attenuation

    (dB/km) (+20℃)

    850 nm3.03.3
    1300 nm1.01.0
    1310 nm0.360.4
    1550 nm0.240.23
    Cable Cute-off Wavelength (nm)≤1260≤1450

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
