    PVC / LSZH Cover Fiber Optic Patch Cord 5G FTTA LC Duplex OM5 MM 50/125 3D Test

    Ask Lasest Price
    Brand Name : KCO
    Model Number : LC-DX-OM5-2.0mm-xm-LSZH
    Certification : RoHS, ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 2~7 days after get payment
    • Product Details
    • Company Profile

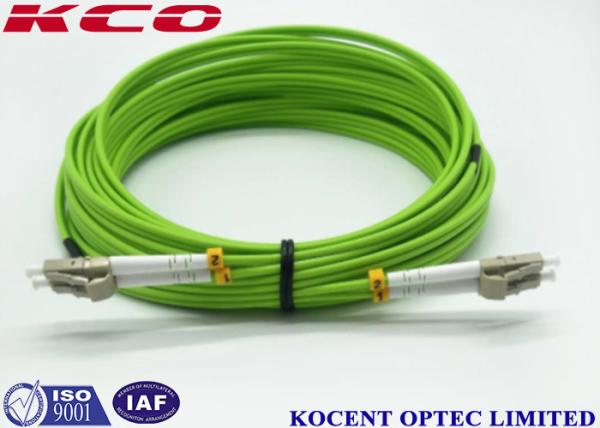

    PVC / LSZH Cover Fiber Optic Patch Cord 5G FTTA LC Duplex OM5 MM 50/125 3D Test

    LC Duplex OM5 MM 50/125 3D Fiber Optic Patch Cord 5G FTTA Patch Cable


    Kocent Optec Limited provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here. For most of them, the SC, ST, FC, LC, MU, MTRJ, E2000, APC/UPC connectors are all available, even we supply MPO/MTP fiber cables

    Our PVC/LSZH Fiber Patch Cables are standard fiber optic cables terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends, such as LC-LC, LC-SC, LC-ST, SC-ST, SC-SC, ST-ST etc.


    Description:

    - Fiber optic patch cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends.
    For the fiber patch cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.

    - OM5 wideband multimode fiber is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.
    - OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

    OM5 Fiber cable assembly:
    - OM5 multimode 50/25 fiber cable assemblies, including LC, SC, ST, FC, E-2000, MPO, MTP connectors, from simplex, duplex to multi core break out cables.
    - Custom made OM5 cables with different length, cable jacket, connector types.
    - OM5 50/125 multimode fiber cables are designed for used in high efficiency data centers and interconnected buildings.
    - The OM5 multi-mode fiber specifications follows the TIA-492AAAE in the ISO/IEC 11801 Edition 3 and the American National Standards Institute cabling standard ANSI/TIA-568.3-D as well as IEC 60793-2-10 edition 6.
    - OM5 multimode fiber cable is fully compatible to previous multimode standards OM3 and OM4 yet the OM5 can achieve much higher speed with less fiber cores.
    - OM5 uses the color Lime Green


    Specification:

    ConnectorLC to LC or other
    Fiber Type50/125um, MM, OM5
    PolishUPC to UPC
    Fiber TypeDuplex (simplex, multi-cores)
    Insertion loss≤0.2dB
    Return loss≥25dB
    Operating Temperature-40~70°C
    PolarityA(Tx) to B(Rx)
    Jacket Outer Diameter2.0mm/ 3.0mm
    Jacket ColorLime Green
    Wavelength850/1300nm
    Jacket MaterialPVC/LSZH
    Cable Retention90N
    Minimum Bend Radius (mm)10D (installed) - 20D (loaded)
    Storage Temperature-45°C~85°C
    Strength MemberAramid

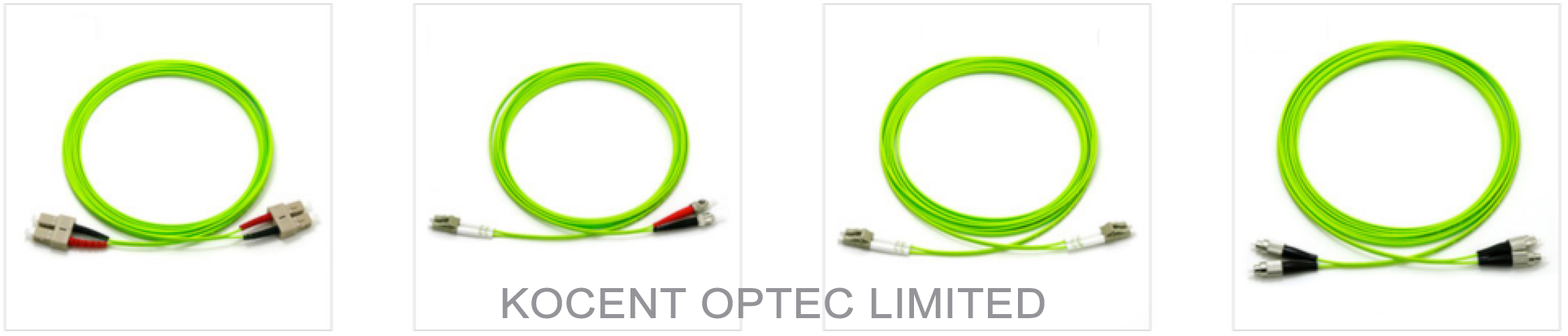

    Product photos:



    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
