    FULLAXS Armored Fibre Optic Patch Cable 2 Core Spiral Cover Low Insertion Loss

    Ask Lasest Price
    Brand Name : KCO
    Model Number : FULLAXS
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    FULLAXS Armored Fibre Optic Patch Cable 2 Core Spiral Cover Low Insertion Loss


    2core FULLAXS Armored Outdoor Fiber Optic Patch Cord Spiral Cover Anti-rodent FTTA


    Introduction:

    - KOCENT OPTEC LIMITED (Hereinafter referred to as KCO) is located in Shenzhen (China), was founded in 2007, which is a professionally engaging in research and developing, manufacturing and marketing passive fiber optic products. Such as Fiber Optic Terminal Box, Fiber Optic Splice Closure Box, Fiber Optic Splitter, Fiber Optic Patch Cord, Fiber Optic other components, and so on.

    - With several years development, KCO has established a professional technical team, strict quality control system and a high-tech production line. And we strictly execute RoHS, 5S and ISO9001.

    - Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, Fullax, H connector, ...

    - With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

    - FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

    - With multi-core once connected and blind insertion;connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

    - Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

    - Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.


    Cable constructions:

    Type 1: SUS Spiral Steel Amoured +LSZH+Kevlar+ 2×Buffered 0.9mm fiber (4.8mm);

    Type 2: SUS Spiral Steel Amoured + LSZH+Kevlar+ 2×2.0mm cable (7.0mm)

    Other cable construction welcome to customerize.


    Features:

    - The connectors are comply with IEC, Telcordia-GR-326-Core standards;

    - Different size & color boot option;

    - Low insertion loss; High return loss;

    - 100% interferometer measurement;


    Application:

    - Telecommunication networks;

    - Local area networks;

    - CATV;

    - Active device termination;

    - Data center system networks;

    - PON;

    - Military exercise;

    - Performance and so on.

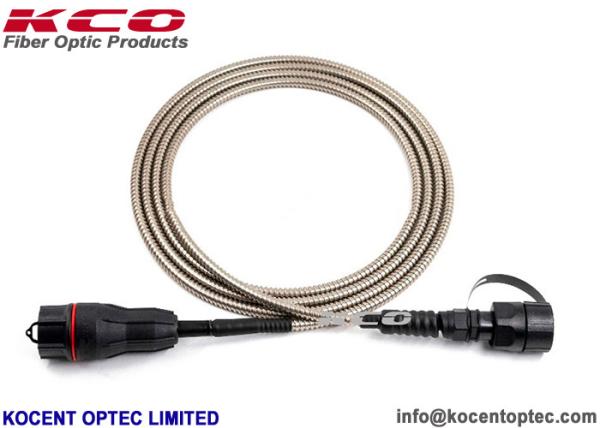

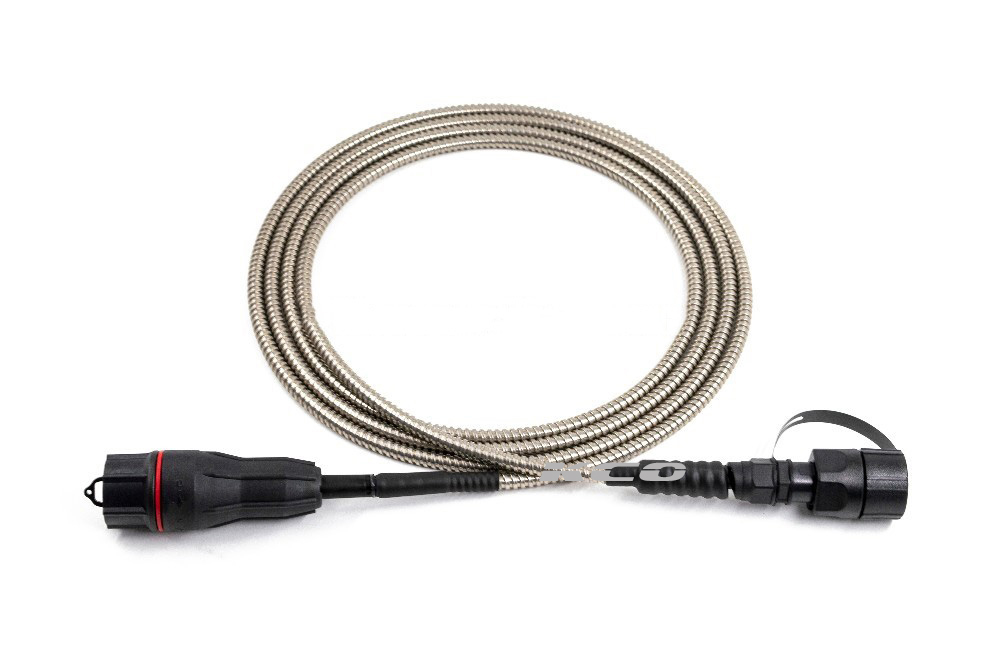

    Products photo:

    Specifications:

    ParametersStandard Fiber Cable Assemblies
    ConnectorSide A: SC with armored
    Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
    Fiber count

    2 cores
    4 cores
    6 cores
    8 cores
    12 cores

    Fiber Type

    SM
    G.652D
    G.657A (A1, A2, B3, ...)

    MM
    OM1
    OM2
    OM3
    OM4
    OM5)

    Jacket Materials

    LSZH
    TPU
    PE

    Cable diameter

    4.8mm
    5.0mm
    5.5mm
    6.0mm
    6.5mm
    7.0mm

    Testing Wavelengths

    SM:
    1310±30nm
    1550±30nm

    MM:
    850±30nm
    1300±30nm

    Insertion Loss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB(PC/UPC/APC)
    ≤ 0.3dB(UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB (PC/UPC)
    ≥55dB (APC)
    ≥35dB (UPC)
    Exchange ability≤ 0.2dB
    Cable AssembliesPigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
    Operating Temperature-14℃~+ 85℃
    Storage Temperature-40℃~+85℃


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
