2000m 4.8mm FTTA Outdoor Field Optical Fiber Cable Drum Reel
Rolling Car
ODVA DLC Huawei NSN Ericson
- Cable reel: Portable optical cable disk (also called handle wire spool, handle
wire winch, mini portable cable laying ), which is mainly used in
the television relay car, wound fiber, signal line, power cable and
other cables; Wheel plate light and durable; Surface spray
treatment, easy to use.
- System construction
The product mainly consists of winding wheel, wire frame, winding
handle, handle, and bearing seat.
-. Functional characteristics
- Manual recharging line: the function of winding and winding by
clockwise or counterclockwise winding handle.
- The rotating shaft is equipped with bearing sleeve, which can
easily be used to realize the collection line of the handle.
- Easy to move: with handle, easy to move.
- It is equipped with a preferable handle, and the handle strength is
durable.
- Equipped with brake device, the brake can be jammed at any time.
- Both side with bearing support line, which can be used for long
term and never deformation.
Features:
- Tight buffer fibre ease of stripping
- Tight buffer fibre have excellent flame-retardant performance
- Aramid yarn as strength member make cable have excellent tensile
strength
- Excellent performance of anti-torsion
- All dielectric structure protect it from electromagnetic
influence
- Scientific design with serious processing art
- The jacket anti-abrasion,anti-aging,anti-oil and flame-retardant
etc.
Descriptions:
- With the continuous development of optical fiber communication
technology, 3G commercial trial network, high-speed local area
networks and optical access network such as the market that is a
sustained manner. Especially in the 3G, 4G, and WiMax base stations
and fiber-optic distributed zoom technology, ODLC fiber optic cable
connector assemblies are rapidly becoming the standard connector
interface.
- Low Insertion Loss & PDL
- Factory-terminated and Tested
- ODLC fiber optic connectors for the new generation wireless base
stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products
that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Features:
- IP65 protection, salt-mist proof
- Easy, reliable and cost-effective installation
- The connector of side-A is duplex LC, and side-B can be LC, SC or
FC
- Thread structure guarantees the trusted connection
Retractable cable reel, handle cable reel:
- Cable reel: Portable optical cable disk (also called handle wire
spool, handle wire winch, mini portable cable laying ), which is
mainly used in the television relay car, wound fiber, signal line,
power cable and other cables; Wheel plate light and durable;
Surface spray treatment, easy to use.
- System construction: The product mainly consists of winding wheel,
wire frame, winding handle, handle, and bearing seat.
- Functional characteristics
- Manual recharging line: the function of winding and winding by
clockwise or counterclockwise winding handle.
- The rotating shaft is equipped with bearing sleeve, which can
easily be used to realize the collection line of the handle.
- Easy to move: with handle, easy to move.
- It is equipped with a preferable handle, and the handle strength is
durable.
- Equipped with brake device, the brake can be jammed at any time.
- Both side with bearing support line, which can be used for long
term and never deformation.

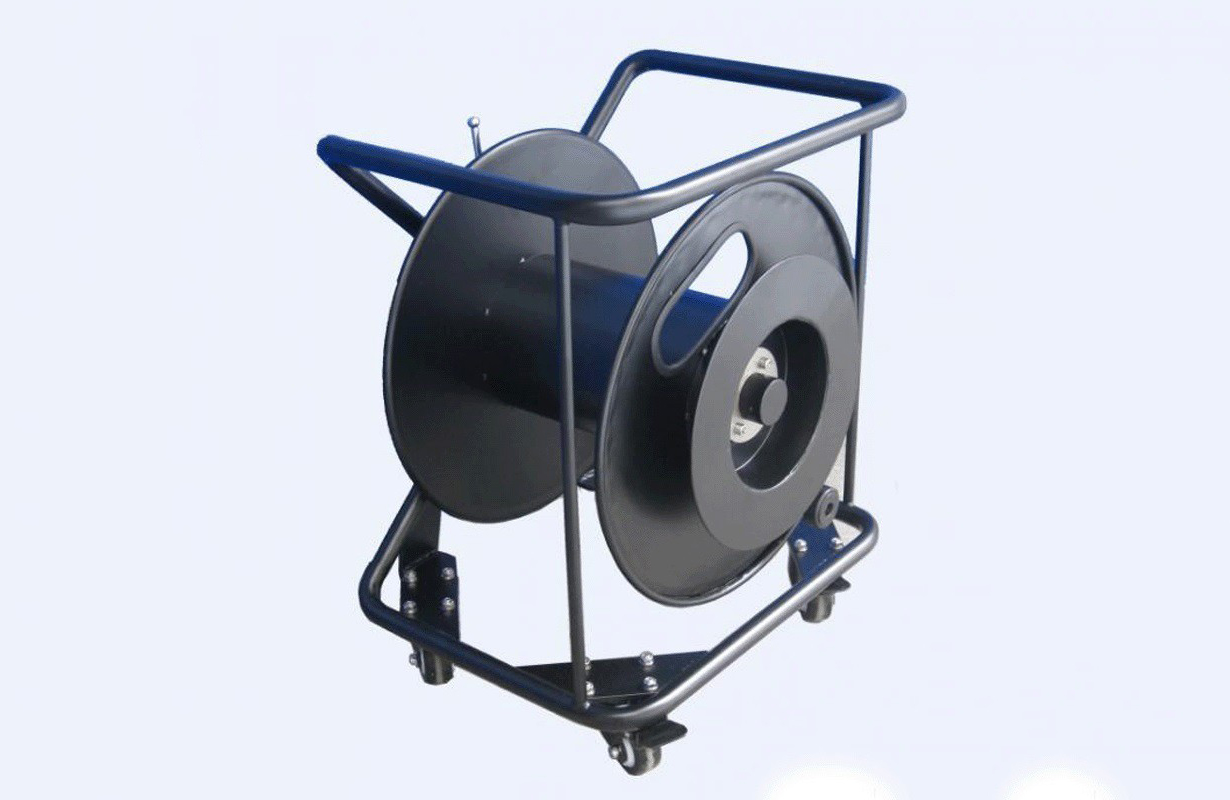

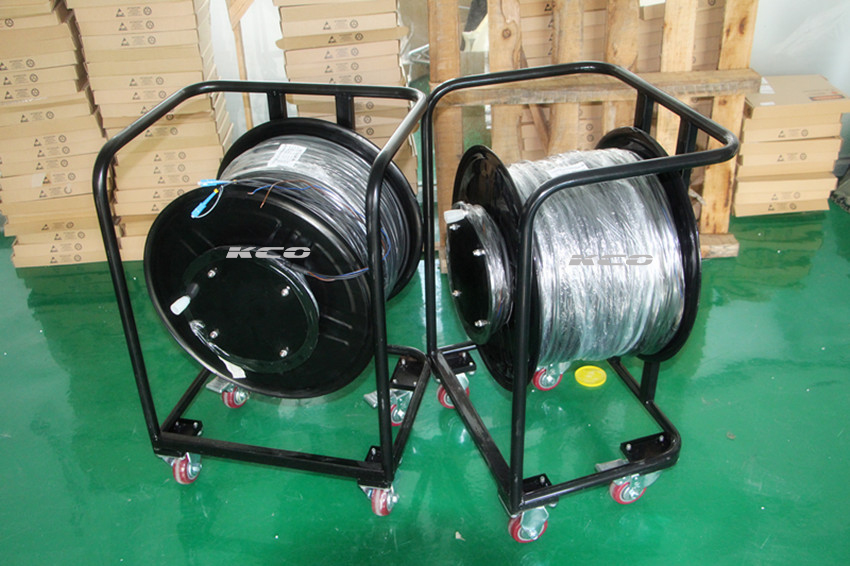

Products photo:
Size:
| Out Size with reel | 400mm×500mm×730mm |
| weight | 15kg |
| disk OD | 430mm |
| disk I D | 120mm |
| Inner width | 360mm |
| Packaged carton size | 515mm×415mm×790mm |
| Material | Steel |
| Color | Black/ Army Green |
| Cable Length | 7.0mm | 1000m |
| 4.8mm | 1500m |
| 3.0mm | 2000m |
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side A: SC with armored |
| Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC),
NSN, Ericson, Huawei, ... |
| Fiber count | 2 cores
4 cores
6 cores
8 cores
12 cores
24 cores
48 cores |
| Fiber Type | SM
G.652D
G.657A (A1, A2, B3, ...) |
| MM
OM1
OM2
OM3
OM4
OM5) |
| Jacket Materials | LSZH
TPU
PE |
| Cable diameter | 4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm |
| Testing Wavelengths | SM:
1310±30nm
1550±30nm |
| MM:
850±30nm
1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 | ≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB (PC/UPC) |
| ≥55dB (APC) |
| ≥35dB (UPC) |
| Exchange ability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord |
| Operating Temperature | -14℃~+ 85℃ |
| Storage Temperature | -40℃~+85℃ |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.

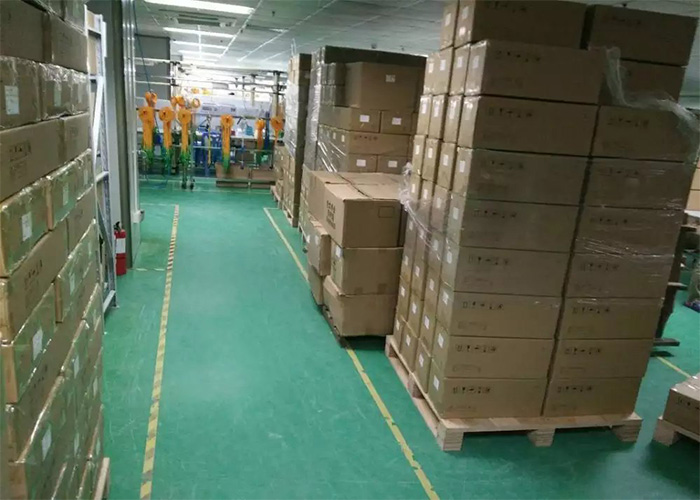

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
