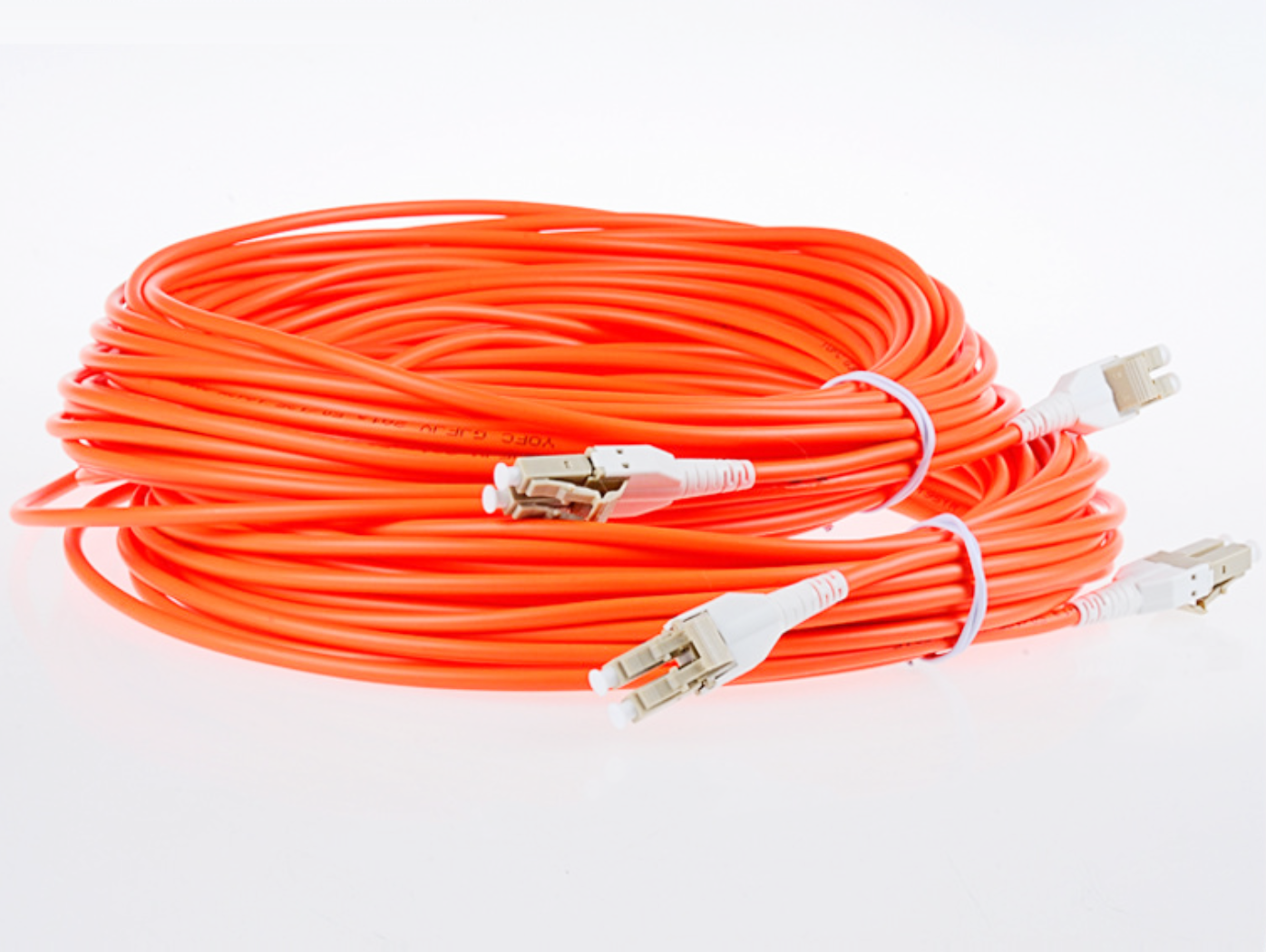

LC Uniboot Multimode OM2 50/125 Fiber Optic Patch Cables LSZH PVC
10m 15m 20m 30m 40m
Quick Information:
Name: Uniboot LC Multimode Fiber Optic Patch Cable
Model Number: Uniboot LC
Inserion Loss: <0.2db
Return Loss: SM/UPC≥50dB,
SM/APC≥60dB
MM≥35dB
Cable jacket size: 3.0mm, 2.0mm
Cable Color: Orange
Cable material: PVC, LSZH
LC Uniboot Connector:
As the most compact of their kind in the industry, LC Uniboot
connectors are available in single, multimode, and APC
applications.
The extended longer latch on top of the connector body makes it
easier to disengage from the adapter, even in high-density
packaging.
In addition, LC Uniboot connectors utilize stainless stop-ring and
crimp-ring structures to provide stronger retention force between
connector and cable.
Design:
LC Uniboot is LC Duplex Switchable Connector, is a unique design
that allows the use of round style, 2mm or 3mm jacketed cable
Instead of the traditional zipcord duplex cable for a more compact
design.
The housing of the LC Duplex Switchable Connector can be taken
apart In the field without the use of any special tooling. This
duplex LC allows the fiber polarity to be switched at the time of
cable assembly Installation without having to re-terminate the
connectors.
The single piece design fits all duplex and simplex adapters. By
using a single cable with two fibers, installers are able to cut
their cable count and weight in half. This design is commonly used
in data centers where cable counts are high and space limited.
Descriptions:
Uniboot LC is a duplex LC connector with a single boot, dubbed the
LC Uniboot.
The connector's design allows a single round duplex 3 mm cable to
be used for a duplex connector.
The single piece design fits all duplex and simplex adapters.
The Uniboot LC connector features a compact, pull-proof design with
RJ-45 style interface.
All material is RoHS compliant.
By using a single cable with two fibers, installers are able to cut
their cable count and weight in half.
Thedesign is suitable for use in data centers where cable counts
are high and space is limited.
Uniboot Fiber-Optic Cables, Full Duplex Fiber-Optical cables with
LC, SC or LC/SC connectors and ITU-T G.651 Compliant 50/125μm or
62.5/125 μm core diameter.
The Multimode graded index optical fiber patch-cord is ideal for
interconnection of SAN switches, networking equipment and Fibre
Channel devices that require up to 10Gbps data transmission.
10Gbps laser-optimized Fiber Optical cable for VCSEL.
Specifications:
| General Specifications |
| Flame Rating | LSZH/FRNC |
| Cable Assembly Type | 2 Fibres |
| Fibre Category | SM, OM3, OM4 |
| Design |
| Connector Type | LC Uniboot |
| Ferrule | Ceramic |
| Polish | UPC |
| Housing Material | PEI and Stainless stell |
| Boot | Blue, Green, Grey |
| Boot Colour | Blue, Green, Grey, White |
| Temperature Range |
| Operation | -40℃~85℃ |
| Installation and assembly | -40℃~85℃ |
| Storage | -40℃~85℃ |
| Mechanical Specifications |
| Durability | IL≤0.2Db 500times |
| Tensile strength jacketed cable | 44 N |
| Optical Specifications |
| Insertion Loss, Typical | 0.15 dB |
| Insertion loss, max. | 0.3 dB |
| Reflectance, typical | ≤-55dB |
Applications:
- Datacenter Transveivers
The LC connector has become the standard for SFP transceivers,
uniboot LC connector is specially fit to
XFP transceivers, because it can reduce the cable diameter and save
the dada center space. So it is more and more popular in datacomm.
- Bundle for fiber cable distribution in dada center
+ Uniboot LC bundles were widely used in data center, the bundles
usually set along the yellow channel.
+ Uniboot LC bundle connect and distribute the all kinds of
equipments in dada center, such as routers,
switches, servers and memories.
