    SX MM Fiber Optic Patch Cord , DX St To Lc Fiber Jumper 60dB Return Loss

    Ask Lasest Price
    Brand Name : KCO
    Model Number : LC Duplex
    Certification : RoHS, ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 2~7 days after get payment
    • Product Details
    • Company Profile

    SX MM Fiber Optic Patch Cord , DX St To Lc Fiber Jumper 60dB Return Loss


    OM5 50/125 Fiber Optic Patch Jumper LC DX SX MM Lime Green 50m 70m 100m PVC LSZH


    Description:
    OM5 wideband multimode fiber is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.

    5 reasons to use OM5 fiber:
    - The OM5 fiber specification has been issued by the communications industry association as tia-492aaae, and is in the final voting stage at IEC as IEC 60793-2-10 version 6.
    - The OM5 and tia-492aaae specifications will be recognized in the upcoming ISO/IEC 11801 version 3 and American national standards association wiring standards ANSI/ tia-568.3-d.
    - OM5 fiber is at least as good as OM4 in supporting all traditional applications, and it is fully compatible and interoperable with OM3 and OM4 fiber.
    - The OM5 is designed to support at least four low-cost wavelengths in the 850-950 nanometer range, enabling optimized support for emerging short-wavelength division multiplexing (SDWM) applications that reduce the number of parallel fibers by at least four times, can use just two fibers (instead of eight) to continuously transmit 40Gb/s and 100Gb/s, reduce the number of fibers, and achieve higher speeds.
    - The OM5 has been sold worldwide, and pre-end-to-end fiber optic jumper provided by Sun Telecom pujin has been installed in a variety of network environments, including campuses, buildings and data centers.
    Compared with traditional OM3 and OM4 fiber, OM5 has significant advantages in supporting SWDM applications. In the future, SWDM technology may also be used to achieve Ethernet speeds of 200, 400 and 800Gb/s in multimode fiber.

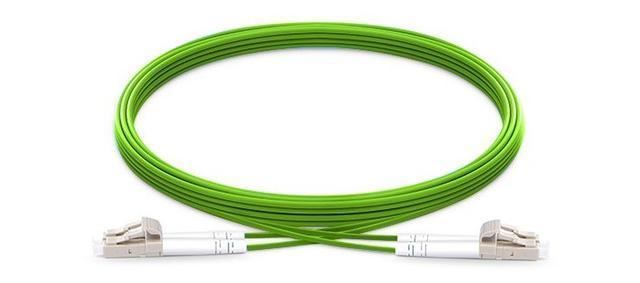

    Product Photo:



    Specification:

    ConnectorLC to LC or other
    Fiber Type50/125um, MM, OM5
    PolishUPC to UPC
    Fiber TypeDuplex (simplex, multi-cores)
    Insertion loss≤0.2dB
    Return loss≥25dB
    Operating Temperature-40~70°C
    PolarityA(Tx) to B(Rx)
    Jacket Outer Diameter2.0mm/ 3.0mm
    Jacket ColorLime Green
    Wavelength850/1300nm
    Jacket MaterialPVC/LSZH
    Cable Retention90N
    Minimum Bend Radius (mm)10D (installed) - 20D (loaded)
    Storage Temperature-45°C~85°C
    Strength MemberAramid

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:

    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
