    8 Core Fiber Optic Terminal Box FTB OTB /FTTH Wallmount Termination Box SC APC Steel Tape

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB08S-SCAD
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    8 Core Fiber Optic Terminal Box FTB OTB /FTTH Wallmount Termination Box SC APC Steel Tape


    8core Fiber Optic Termination Box FTB OTB Wallmount FTTH SC/APC duplex


    Over View:

    - KCO-FTB08S Fiber optic terminal box is design for 8 port of terminal box, it is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
    - KCO-FTB08M-SCU is use for 8 cores splicing and management. It is full load with SC/UPC adapter and SC/UPC pigtail.
    - The adapter port can make SC port, LC port, FC port, ST ports, ... to meet customer request.
    - They are suitable for indoor wall mounted using.
    - Mini size and light weight, it can use indoor with wall mount application or also do face plate.
    - Suitable for Fiber to the home project.

    Technical request:

    - Material: high quality 0.6 mm thickness steel plate, plastic optical fiber fused fiber plate, material is qualitative soft, good toughness.

    - Operating environment: -25~+40°C relative humidity: (/=85% (+30°C)

    - Insulation resistance: Cable terminal box metal components and fiber optic cable core metal is strong, fiber optic cable between the

    metal accessories, cable metal components and between the insulation resistance should be greater than 2*104MΩ.

    - Dielectric intensity: Cable terminal box metal components and fiber optic cable core metal is strong, fiber optic cable between the

    metal accessories, fiber optic cable between metal artifacts and to under the dc voltage of 15 kv, 1 min not breakdown.

    Application:
    - Indoor usage.
    - Used for wall-mounted applications

    - Local Area Network

    - Fiber to the home (FTTH)

    - Wide Area Network

    - CATV Network

    - FTTX System

    - Test Instruments

    Specification:
    ItemKCO-FTB08S
    NameSC/UPC single mode fiber optic terminal box
    Size250*250*45mm
    Weight0.45kg
    Thickness0.6mm
    Cable port1
    Adapter port8
    ColorBlack/Grey/White

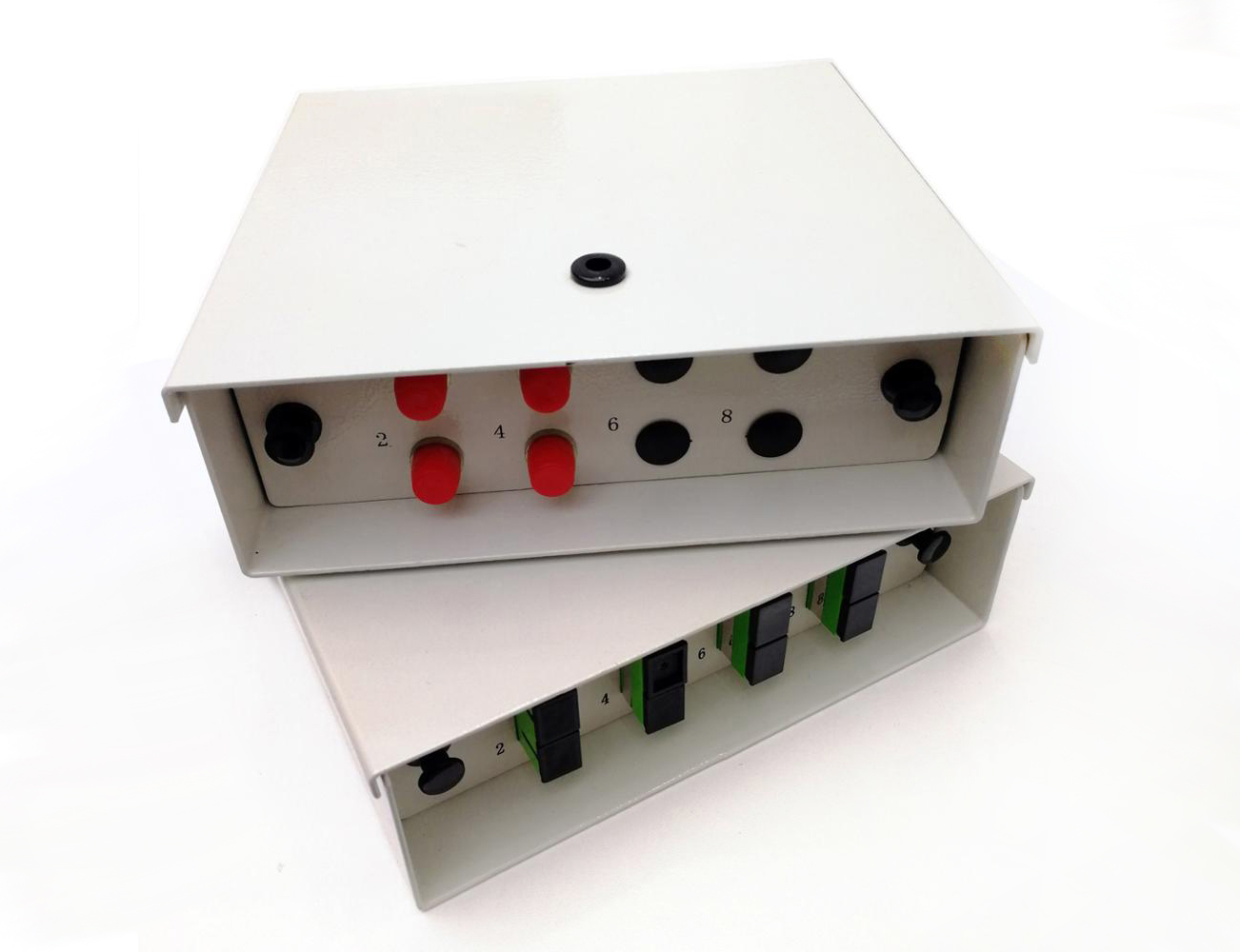

    Product Photos:

    Size:

    ModelCapacityDimensionRemarkAdapter and pigtail
    KCO-FTB08M-SCU8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*SC/UPC adapter and 8* SC/UPC Pigtail
    KCO-FTB08M-SCA8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*SC/APC adapter and 8* SC/APC Pigtail
    KCO-FTB08M-DLCU8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*Duplex LC/UPC adapter and 8* LC/UPC Pigtail
    KCO-FTB08M-DLCA8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*Duplex LC/APC adapter and 8* LC/APC Pigtail
    KCO-FTB08M-FCU8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*FC/UPC adapter and 8* FC/UPC Pigtail
    KCO-FTB08M-FCA8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*FC/APC adapter and 8* FC/APC Pigtail
    KCO-FTB08M-STU8 cores115x95x35 mm2*cable ports, 8*adapter portsFull load with 8*ST/UPC adapter and 8*ST/UPC Pigtail

    Relation products:


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
