KCO-ODB-72A 72core 96cores
Outdoor Wall-mountable Metallic Optical Terminal Fiber Distribution
Box
Overview:
- Kocent Optec Limited provides OEM and ODM service for all type
all size of steel tape metallic fiber optic terminal box.
- Our steel tape metallic fiber optic terminal box series include:
+ Indoor wall mount fiber optic distribution box: 12 cores, 24
cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Outdoor wall mount fiber optic distribution box: 12 cores, 24
cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber optic distribution frame: 144 cores, 288 cores, 576 cores,
720 cores, 960 cores, 1152 cores, ...
+ Fiber optic rack mount terminal box: 12 cores, 24 cores, 36
cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber optic ODF Unit Box: 12 cores, 24 cores, 36 cores, 48 cores,
72 cores, 96 cores, 144 cores
+ Fiber Optic Patch Panel: Fix type, rotating type, sliding type
- The wall-mountable terminal box series is the auxiliary equipment
of the terminal wiring in the optical fiber transmission and
communication network.
- The terminal box is mainly used for the fixing of fiber optic
cable terminal, the splicing of fiber optic cable and pigtail and
the storage and protection of residual fiber.

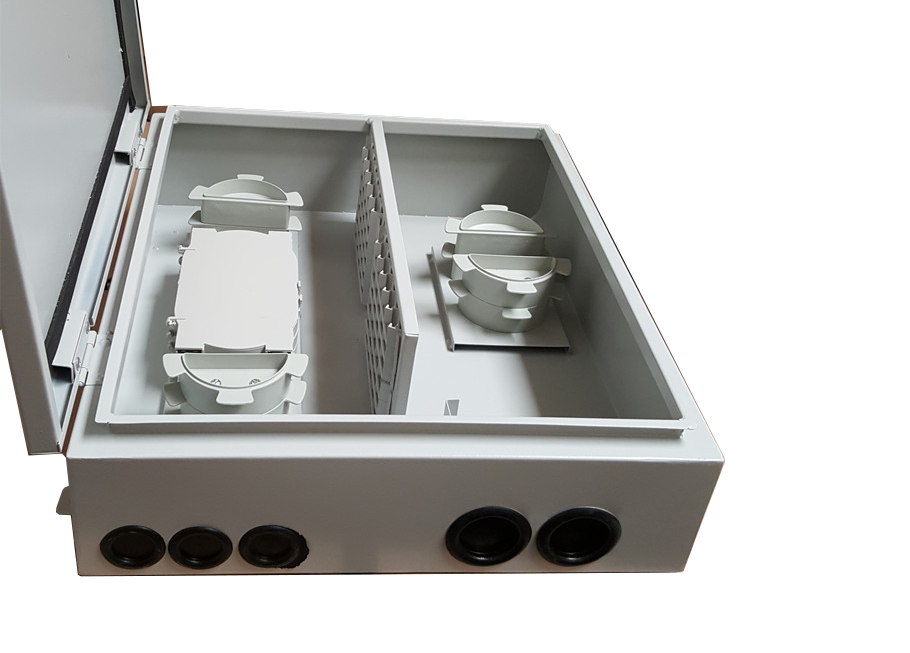

Product Photo:
Over View:
- The Fiber Optic Distriution Box is available for small capacity
communication system, wall mounting, reasonable and compact
structure, harmonized with machine room.
- The Fiber Optic Distriution Box is composed of two parts, one
links with optional cables for fusion connection between optical
cables and fiber pigtail and another links with patch cords.
- The Fiber Optic Distriution Box provide fusion and storage
appliance for optical cables.
- Reliable protection appliance of fixing, stripping and earthing
for optical cables.
- Whole range protected design for fiber lay to ensure the bending
radius=40mm.
- Provide various accessories to avoid any unexpected damage to the
fiber.
- Suitable for the protective connection between cables and
pigtails.
- Suitable for the connection between optical cables and optical
communication device.
- Small volume, unique structure, easy installation, for indoor
use.
- With common type of adapter plate, the box is suitable with all
type of adapter such as FC, LC, SC, ST, E2000, ...
- Double doors design, more easy and convenient for maintain.
Application:
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted and pole mount applications
- Used in FTTH, Telecommunications, CATV ect.
Quick Information:
Name: 48 Fibers Outdoor Fiber Optic Distribution Box (FDB type)
Part number: KCO-ODB-72A
Capacity: 4 cores SC/FC/ST, 96 cores LC
Tray numner: 2 trays
Material: Steel tape
Thickness: 1.0mm/1.2mm
Size: 400*4000*100mm
Colow: Grey, Black (optinal)
|
Environmental Requirement | | |
| |
| |
Thunder-proof Technical Data | The grounding device is isolated with the cabinet, isolation
resistance is no less than 2 104 MΩ/500V (DC);IR≥2 104 MΩ/500V |
The withstand voltage between grounding device and cabinet is no
less than 3000V (DC )/min, no puncture,no flashover; U≥3000V |
Technical Data:
Insulation resistance | The insulation resistance between the metallic terminal of the
optical cable terminal and the metal reinforcing core of the
optical cable, between the metallic components of the optical
cable, between the metallic component of the optical cable and the
ground is greater than 20000MΩ (the test voltage is 500VDC) |
Dielectric strength | cable terminal box metal components and fiber optic cable between
the metal core, the light between the metal components of the
optical cable between the metal components and ground in the 15KV
DC voltage 1min without breakdown, no arcing phenomenon |
Environment temperature | -45℃～+80℃ |
Relative humidity | ≤85％(+30℃) |
Ordering information:
| P/N | Cores | Tray number | Adapter | Pigtail | Pigtail Diameter | Pigtail Length | Splitter |
| KCO-ODB-48A | 48 cores | 2 | SC/UPC | SC/UPC | 0.9mm | 0.5m | 1x2 |
| KCO-ODB-72A | 72 cores | 3 | FC/UPC | FC/UPC | 2.0mm | 1.0m | 1x4 |
| … | … | … | ST/UPC | ST/UPC | 3.0mm | 1.5m | 1x6 |
| | | LC/UPC | LC/UPC | Fan-out 0.9mm | 2.0m | 1x8 |
| | | E2000/UPC | E2000/UPC | Break out 2.0mm | … | 1x12 |
| | | SC/APC | SC/APC | … | | 1x16 |
| | | FC/APC | FC/APC | | | 1x24 |
| | | LC/APC | LC/APC | | | 1x32 |
| | | E2000/APC | E2000/APC | | | … |
| | | … | … | | | |
Kocent Optec Limited supplys all capacity of terminal box, such as
4ports, 8 ports, 12ports, 36ports, 48ports, ... And can loading
with telecom grade of pigtail and adpater. Please contact with our
sales team to get more detail about this series of terminal box.
