    4 8 12 16 Ports Fiber Optic Termination Box / Wallmount OTB Fiber Optic Terminal Box

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB04D
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    4 8 12 16 Ports Fiber Optic Termination Box / Wallmount OTB Fiber Optic Terminal Box


    KCO-FTB04D Indoor Fiber Optic Terminal OTB Wall Mountable Face Plate 4 SC/UPC Adapter Ports


    Over View:

    - Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
    - OTB or FTB Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
    - KCO-FTB04D is use for 4 cores splicing and management. The adapter port can make SC port, LC port, FC port, ST ports, ... to meet customer request.
    - New design: the lock button design is easy to open and close the door, convenient to install and manage the fibers. They are suitable for indoor wall mounted using.
    - The adapter port can make SC port, LC port, FC port, ST ports, ... to meet customer request.
    - They are suitable for indoor wall mounted using.
    - Mini size and light weight, it can use indoor with wall mount application or also do face plate.
    - Suitable for Fiber to the home project.
    Application:
    - Suitable for Pigtail, ribbon and bunch cable connect distribution
    - Used for indoor wall-mounted applications
    - Used in FTTH,
    - Telecommunications,
    - CATV ect.
    Features:
    - Cold-roll steel, electrostatic painting
    - Suitalbe for different adapters: FC, SC, ST, LC …
    - 4~16 fibers splicing module inside
    - 4~16 adapters can be loaded
    - Hinge and convenient press-pull button lock design
    - Indoor using
    Design Drawing:
    4 8 12 16 Ports Fiber Optic Termination Box / Wallmount OTB Fiber Optic Terminal Box

    Size:

    ModelCapacityDimensionRemark
    KCO-FTB04D4 cores140x130x36 mm1pc cable port, 4 adapter ports
    KCO-FTB08D8 cores200x165x40 mm2pcs cable ports, 8 adapter ports
    KCO-FTB12D12 cores245x200x60 mm3pcs cable ports, 12 adapter ports
    KCO-FTB16D16 cores245x200x60 mm3pcs cable ports, 16 adapter ports

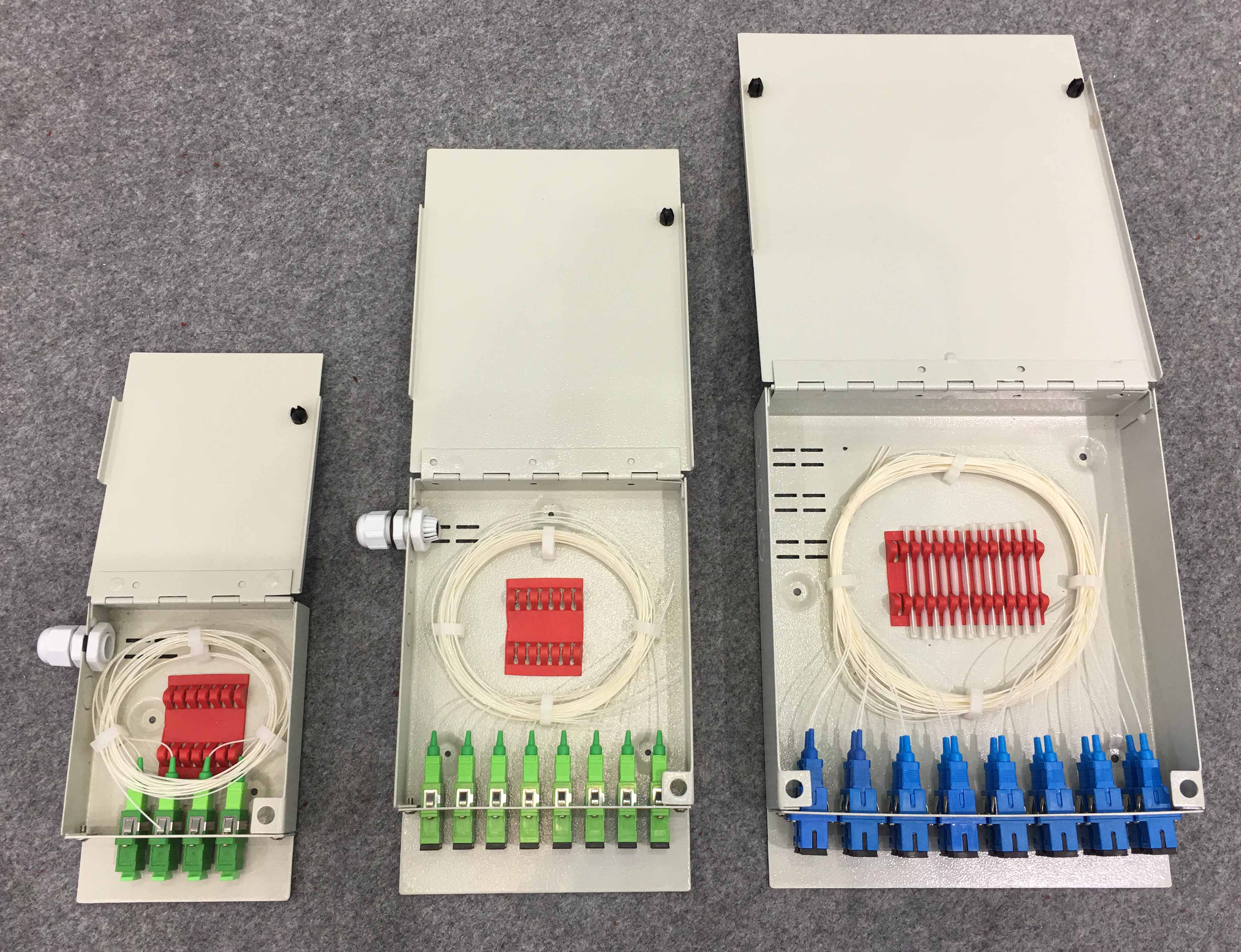

    Product photo:


    OEM/ODM Service:

    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
