    Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB04M-SCU
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape


    Indoor Wallmount Fiber Optic Terminal Box 4port Full-load With SC/UPC Mini Size Metallic Face Plate


    Over View:

    - KCO-FTB04M Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
    - KCO-FTB04M-SCU is use for 4 cores splicing and management. It is full load with SC/UPC adapter and SC/UPC pigtail.
    - The adapter port can make SC port, LC port, FC port, ST ports, ... to meet customer request.
    - They are suitable for indoor wall mounted using.
    - Mini size and light weight, it can use indoor with wall mount application or also do face plate.
    - Suitable for Fiber to the home project.
    Application:
    - Suitable for Pigtail, ribbon and bunch cable connect distribution
    - Used for wall-mounted applications
    - Used in FTTH, Telecommunications, CATV ect.
    Features:
    - Cold-roll steel, electrostatic painting
    - Suitalbe for different adapters: FC, SC, ST, LC …
    - 4~8 fibers splicing module inside
    - 4 adapters can be loaded
    - Hinge and convenient press-pull button lock design
    - Indoor using
    Specification:
    ItemKCO-FTB04M-SCU
    NameSC/UPC single mode fiber optic terminal box
    Size115*95*35mm
    Weight0.3kg
    Thickness0.6mm
    Cable port2
    Adapter port4
    ColorBlack/Grey

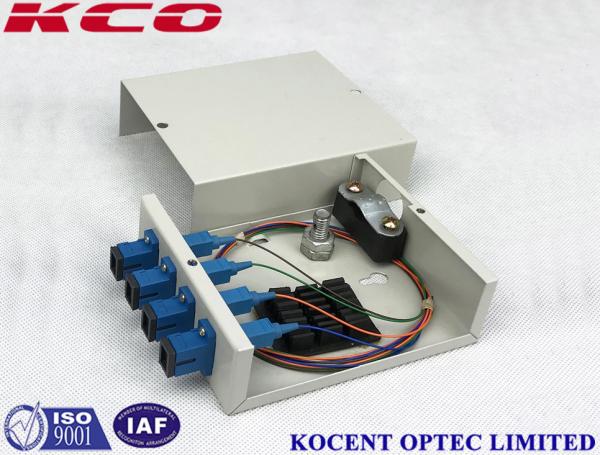

    Product Photos:

    Size:

    ModelCapacityDimensionRemarkAdapter and pigtail
    KCO-FTB04M-SCU4 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*SC/UPC adapter and 4* SC/UPC Pigtail
    KCO-FTB04M-SCA4 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*SC/APC adapter and 4* SC/APC Pigtail
    KCO-FTB04M-DLCU8 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*Duplex LC/UPC adapter and 8* LC/UPC Pigtail
    KCO-FTB04M-DLCA8 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*Duplex LC/APC adapter and 8* LC/APC Pigtail
    KCO-FTB04M-FCU4 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*FC/UPC adapter and 4* FC/UPC Pigtail
    KCO-FTB04M-FCA4 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*FC/APC adapter and 4* FC/APC Pigtail
    KCO-FTB04M-STU4 cores115x95x35 mm2*cable ports, 4*adapter portsFull load with 4*ST/UPC adapter and 4*ST/UPC Pigtail

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
