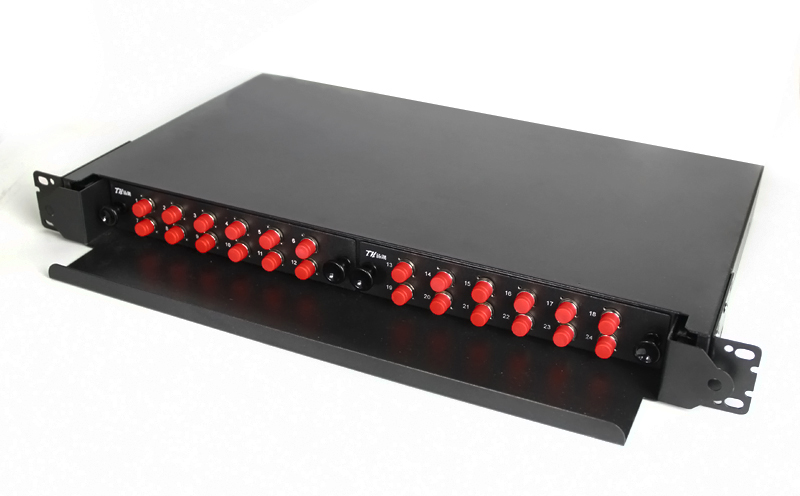

Drawer Type Fiber Optic Terminal Box Rack Mountable Patch Panel

Upload With FC adapter and FC Pigtail

Environment conditions:

- Working temperature: -25°C - 55°C

- Relative humidity: ≤85% (30°C)

- Air pressure: 70 - 106KPa

- Standard working wavelength: 850, 1,310, 1,550nm

- Connector loss: ≤0.5dB

- Back wave loss: PC≥40dB, UPC≥50dB,APC≥60dB

- Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc

- Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC

Product introduction:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountalbe fiber optic terminal box design to use to building or pillar wall mounting. It can use for indoor or outdoor application.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.

Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc

Product picutures:




Parameters:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
