KCO-FDP-16M 1*16 LGX Splitter Box 16 Ports 96 Cores Outdoor Fiber Optic FTB Termination Box

Product detail:

- KCO-FDP-16M 1*16 LGX Splitter Box 16 Ports 96 Cores Outdoor Fiber Optic FTB Termination Box is special design to install the LGX type of fiber optic PLC Splitter. It can install one piece of 1*8 LGX Splitter or 1*16 LGX Splitter or 2pcs of 1*8 LGX Splitter. It is FTTH drop cable fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.

Installion way:

- Wall Mount

- Pole Mount

- FTTH pre-installation and filed installation

- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable

Accessories:

- Splice cassette and cable management tool

- Installation nuts and bolts,

- Protection sleeves hose clamp,

- Cable tube,

- Wrench,

- Cover,

- Holder,

- Rubber seal for cable entrance

- Cable tie, ...

Specification:

Goods name		Optical Fiber Access Terminal Distribution Box
ITEM		KCO-FDB-16M
Nos of Adaptor		16 ports of SC adapter port
Dimensions		L: 340mm, W: 220mm, H: 95 mm
Max Capacity		Splice 96 Fibers (4trays, 24 fibers/tray)
Weight		1.80kg
Cable input port		Max. 2 ports (2*3 mm or indoor cable)
Cable output capacity		Max. 16 ports ( outdoor figure-8 FTTH self-supporting drop cable)
Protection Level		IP65
Atmospheric pressure		70KPa~106 KPa
Operation Temperature		-40 ~ +85°C
Main Technical	Insertion loss:	≤0.2dB
	UPC return loss	≥60 dB
	APC return loss	>1000 times

Features

- ABS+PC high quality material, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP67.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

- 2 cable input ports and 16 ftth drop cable output port.

- With fiber optic adapter plate, can install SC, FC, ST, LC, E2000, ... adapter.

- Mechanical sealing structure and mid-span cable entry

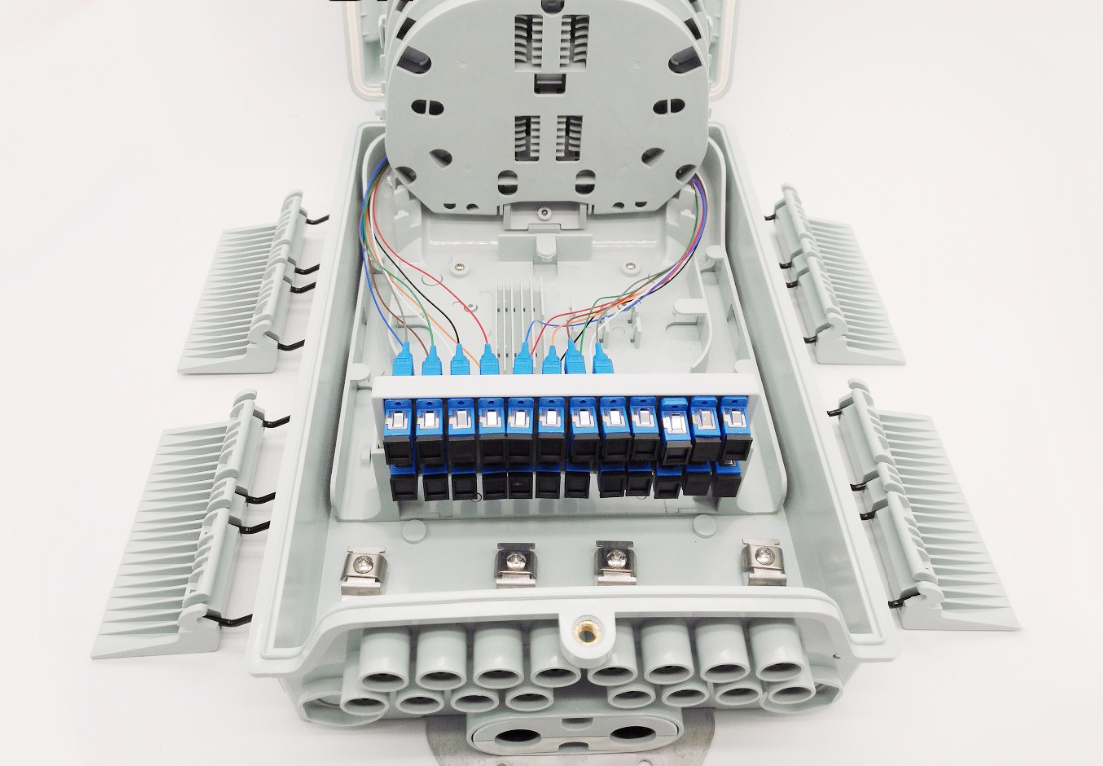

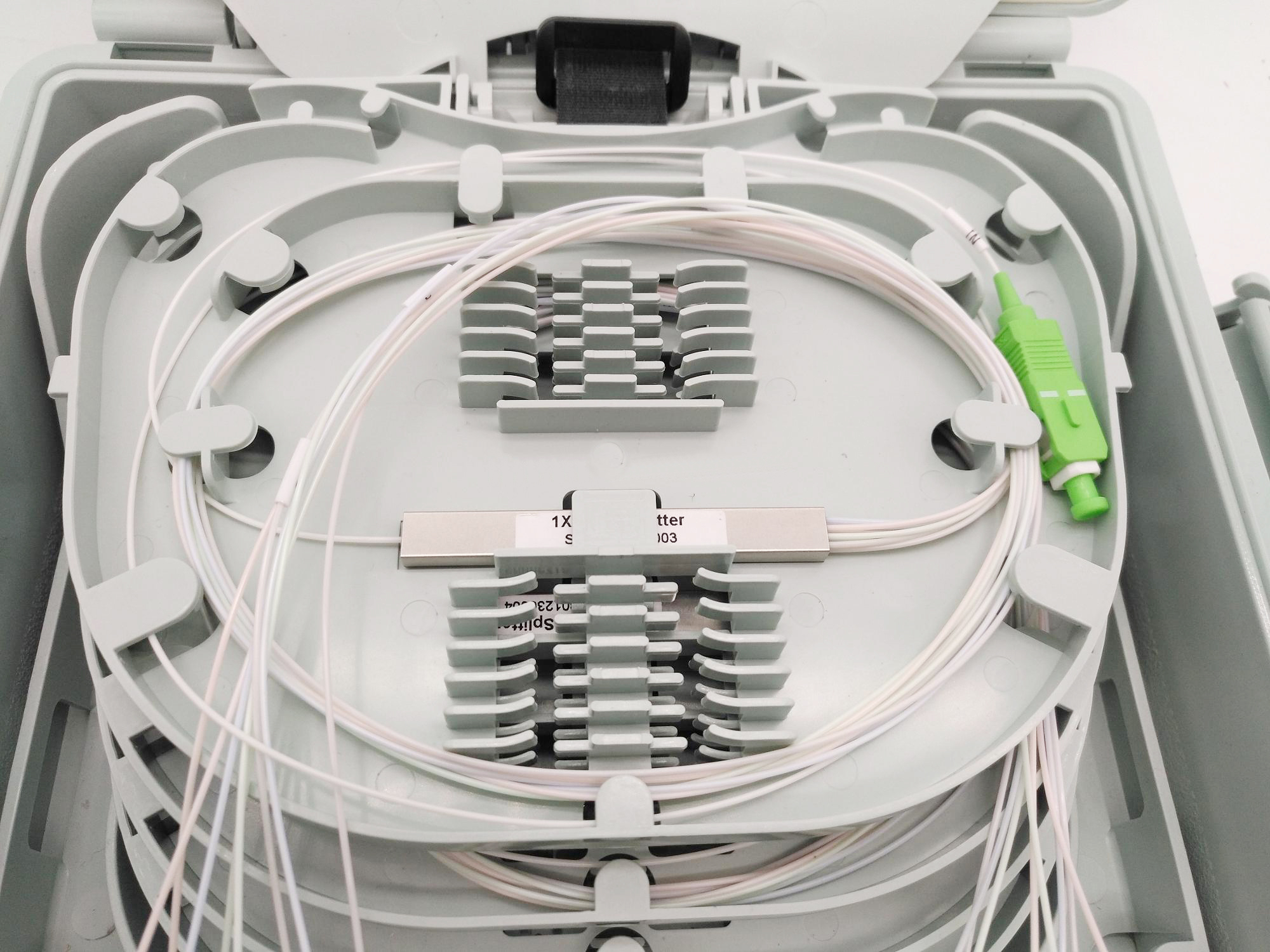

Product photo:

Ordering information:

Item	Capacity	Splitter	Connector	Adapter	Logo
KCO-FDB-16M	16 cores	1*2	SC/UPC	SC/UPC	KCO
		1*4	SC/APC	SC/APC	customized
		1*6	FC/UPC	FC/UPC	…
		1*8	FC/APC	FC/APC
		1*12	ST/UPC	ST/UPC
		1*16	LC/UPC	LC/UPC
		1*24	LC/APC	LC/APC

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
