    KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-ODP-12W
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade


    KCO-ODP-12W Optical 12 24 Ports PC ABS Material Waterproof Fiber Access Terminal Box

    FAT Distribution Box


    Descriptions:

    Fiber optic splitter termination box offers a cost-effective way for the FTTH access network. And there are different types in the market. According to the configuration types of PLC splitter, there are three common types of splitter termination box: plug-in type PLC splitter termination box, blockless PLC splitter termination box and ABS PLC splitter termination box. Here is a simple introduction to them.


    Specifications:

    ModelKCO-ODP-12W
    MaterialPC+ABS
    Dimension260*210*95mm
    Cable Entry1 uncut cable entrance: 10-16.5mm
    Drop cable port12 ports
    Applicable cable diameter2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
    Max. Capacity12 Fibers, 1 tray x 12F
    AdapterMax. 12pcs SC simplex (LC, FC, MT optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. micro plug-in 1x12 Splitter
    ColorGray White or Black
    IP GradeIP55
    Operating Temperature-40°C~+80°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet

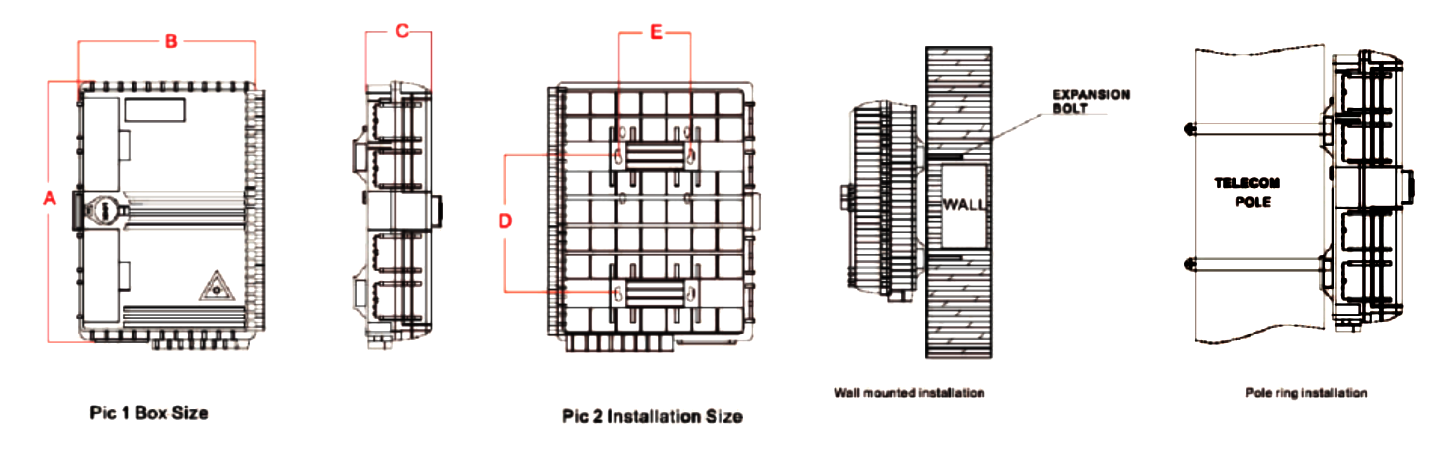

    Installation way:


    Products photos:


    Features:
    - Wall mounted for indoor or out door, white color, graceful style and good adaptability to environment.
    - Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
    - Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.
    - Fit for 1x4 , 1x8 and 1x16 PLC splitter assembly.
    - It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole.
    - The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
    - Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance.
    - Distribution panel can be flipped up, feeder cable can be placed in a cup joint way, easy for maintenance and installation.


    Specification:

    - Made of high-impact plastic:ABS+PC (ROHS standard)

    - Color: White

    - Cable Diameter: 11~13.5mm

    - Can hold up to 16 drop cables

    - Can hold up to 16 SC Adapters

    - 2 inlet ports,16 outlet ports

    - Great for wall mounting or pole mounting

    - Pretection class-IP67

    - RoHS compliance

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.



    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
