8 16 32 Port Fiber Optic Distribution Box KCO-FDB08B Outdoor IP65
Water-proof SC/APC
Description:
KCO-FDB08B is specially designed for FTTH access applications and
implements connection and distribution of backbone
cables and subscriber cables in outdoor harsh environments or
outside of the premises and on poles.
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4 & 1X8 & 1*16 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Up to 8 FTTH drops.
Wall and pole mountable.
2 inlet ports, 8 outlet ports.

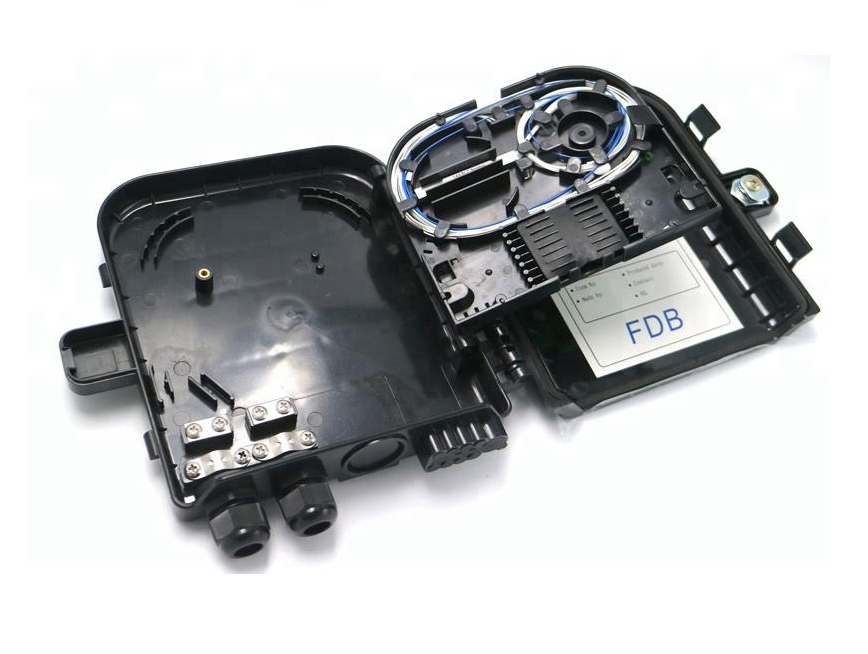

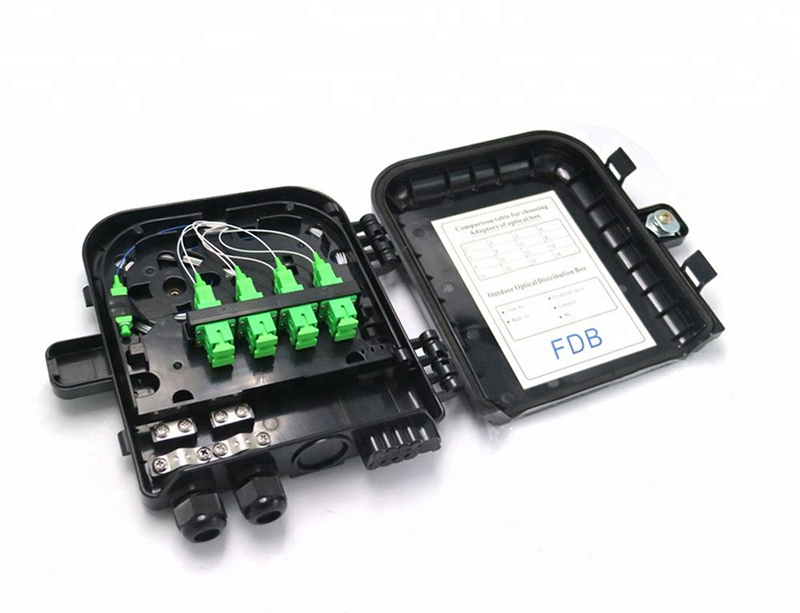

Product photo:
Features
- Outdoor wall mount or corridor
- IP65 protected with special gasketing
- Plastic and rubber hub, pleasant appearance, small size, suitable
for different FTTX access application
- Polycarbonate, UV-Resistant
- Bow-type drop cable can be spliced or mechanically spliced, and
redundant length can be stored in the hub
- Single bow-type drop cables fixed piece by piece, convenience for
construction and maintenance
- Applicable to tap-off application of backbone optical cables
- Perfect fiber route design to ensure bend radius of fibers
- 100% Compatible to Bellcore GR-326 standards
- LC Duplex and SC Simplex Adaptors can be installed inside
Product details
| Product name | Outdoot fiber optic distribution box FDB Box |
| Connector Type | Singlemode or multimode |
| Size | 225*220*55MM |
| Adapter | SC, FC, LC, ST, E2000, ... |
| Connector | SC, FC, LC, ST, E2000, ... |
| Material | ABC, PC, PC+ABS |
| Application | Outdoor FTTH project |
| Color | Grey / White/ Black |
| Warranty | limited life |
| Product Keywors | FDB108, FDB08, FDB box, KCO-FDB08B |
| Weight | About 0.8kg |
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
Used in FTTH,
Telecommunications,
CATV etc...
