    10Gbps SFP Fiber Optic Transceiver 850nm Multimode LC Duplex Port

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : SFP 10G MM
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    10Gbps SFP Fiber Optic Transceiver 850nm Multimode LC Duplex Port


    10Gbps SFP Fiber Optic Transceiver 850nm Multimode LC Duplex Port


    Descriptions:


    - The SFP-BIDI transceiver modules are high performance, cost effective modules supporting data-rate of 10Gbps and 40km transmission distance with SMF.

    - This optical fiber module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    - This high quality optical fiber module is compatible with SFP Multi-Source Agreement (MSA) and SFF 8472. For further information, please refer to SFP MSA.


    Product informations:


    P/NAXS85-192-M3BrandKCO
    Product typeSFP+Speed10.3Gbps
    Wave length850nmLongest transfer distance300m
    Optical portLC duplexWorking temperature0 to 70°C
    Fiber typeMultimodeDigital diagnosis functionyes
    Emission light power-6~-1dBmReceiving sensitivity<-11.1dBm

    Features:


    - Up to 1.25Gbps bi-directional data links

    - High Quality Optical Fiber Module

    - Compliant with SFP MSA and SFF-8472 with single LC receptacle

    - 1310nm FP laser and PIN photo detector for 40km transmission

    - Digital Diagnostic Monitoring: Internal Calibration or External Calibration.

    - Low EMI and excellent ESD protection.

    - Laser safety standard IEC-60825 compliant.

    - Compatible with RoHS

    - 1310nm FP Laser and PIN photodetector

    - Up to 20km transmission on SMF

    - +3.3V single power supply.


    Applications:

    - SDH STM and SONET system

    - Fiber Channel

    - Switch to Switch interface

    - Switched backplane applications

    - Router/Server interface

    - Other optical transmission systems

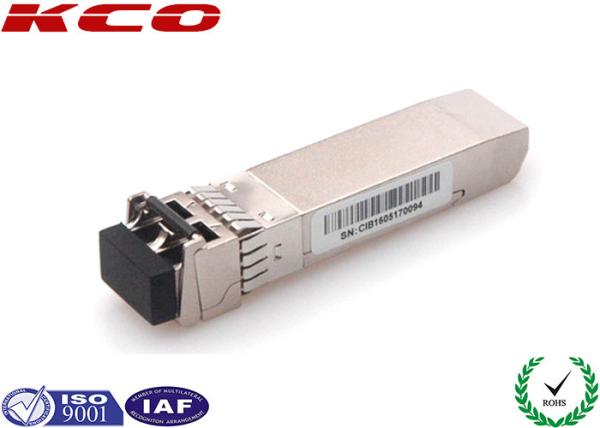

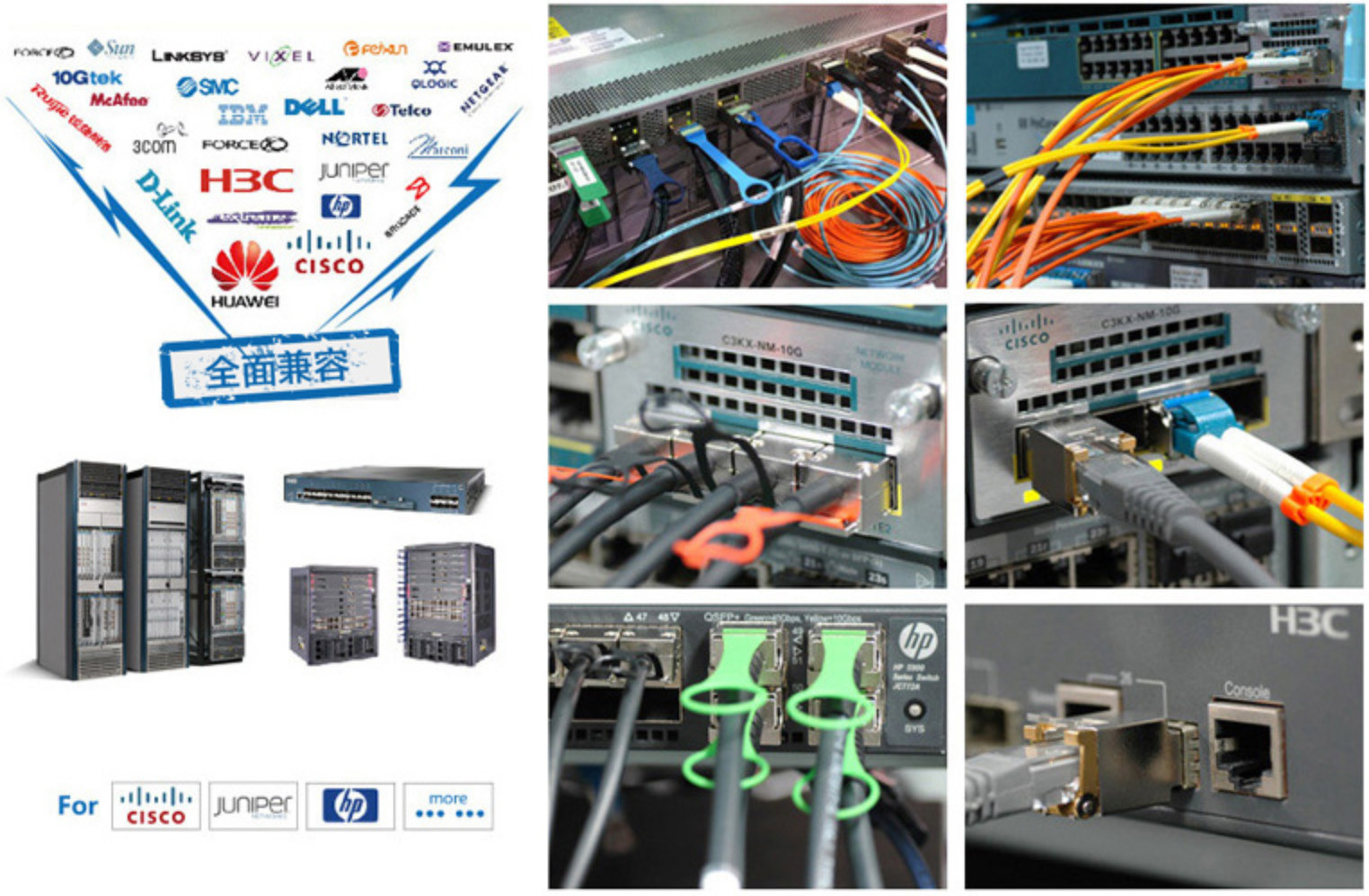

    Product pictures:

    10Gbps SFP Fiber Optic Transceiver 850nm Multimode LC Duplex Port

    10Gbps SFP Fiber Optic Transceiver 850nm Multimode LC Duplex Port
