    Electrical Lc Single Fiber SFP Module 40KM 1310nm Duplex Port

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : SFP-10G-L40D
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 80,000pcs/month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Electrical Lc Single Fiber SFP Module 40KM 1310nm Duplex Port


    Fiber Optic Transceiver SFP+ 40KM for 10G 1310nm with LC Duplex Port SM with DDM


    Descriptions:


    Fiber Optic Transceiver SFP+ 40KM for 10G 1310nm with LC Duplex Port SM with DDM


    - The SFP-10G-L40D fiber optic transceiver modules are high performance, cost effective modules supporting data-rate of 10Gbps and 40km transmission distance with SMF.

    - This optical fiber module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    - SFP+ for SM duplex LC connectors and 40KM, with DDM and compatible with CISCO & HUAWEI etc

    - This high quality optical fiber module is compatible with SFP Multi-Source Agreement (MSA) and SFF 8472. For further information, please refer to SFP MSA.


    Features:

    - High Quality Optical Fiber Module

    - DDM: Internal Calibration or External Calibration.

    - 1310nm FP Laser and PIN photodetector

    - Low EMI and excellent ESD protection.

    - Laser safety standard IEC-60825 compliant.

    - Up to 40km transmission on SMF

    - +3.3 single power supply.

    - Compatible with RoHS

    - Up to 10Gbps bi-directional data links

    - 1310nm FP laser and PIN photo detector for 20km transmission

    - Compliant with SFP MSA and SFF-8472 with single LC receptacle


    Applications:


    - Fiber Channel

    - Router/Server interface

    - Switch to Switch interface

    - SDH STM and SONET system

    - Switched backplane applications

    - Other optical transmission systems


    Product informations:


    P/NSFP-10G-L40DBrandKCO
    Product typeSFP+Speed10.3Gbps
    Wave length1310nmLongest transfer distance40km
    Optical portLC duplex ConnectorWorking temperature0 to 70°C
    Fiber typeMultimodeDDMyes
    Emission light power-6~-1dBmReceiving sensitivity<-11.1dBm

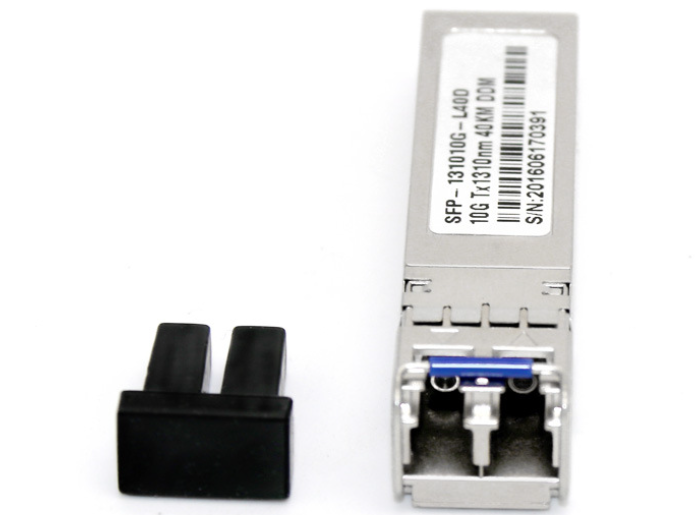

    Product pictures:



    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL from ShenZhen, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea shipping from China
