Fixed FTTH LC UPC Fiber Optic Attenuator 5dB Plug Type Male To Female

Overview:

We are KOCENT OPTEC LIMITED, We can supply optical fiber optic attenuator with different type such as LC, SC, ST, FC, etc . We also can supply OEM, ODM servicer for optical fiber optic attenuator. Please contact with us by phone or by e-mail to get more informations about them.

LC/UPC single mode fiber optic attenuator descroptions:

Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber. The basic types of optical attenuators are fixed, step-wise variable, and continuously variable. Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning. Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive. Inline style attenuators are incorporated into patch cables. The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

The LC fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 20dB.

Quick Detail:

- Attenuation range: 0-30 dB

- Connector: FC, SC, ST, LC, MU, etc

- Model Number: LC

- Model Name: Adapter Type,Plug Type

- Color: Blue, green, metal

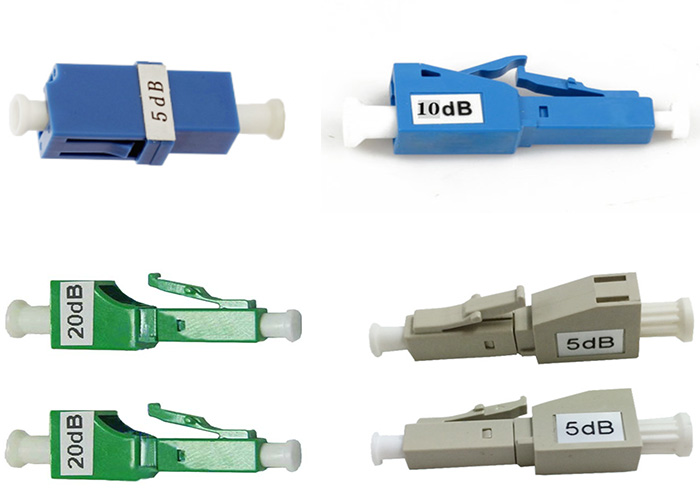

LC fiber optic attenuator types:

LC fiber optic attenuators Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Based on IEC/Telcordia Bell GR-326-Core Tested

- Metal ion doped fiber

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths

LC fiber optic attenuators Applications:

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test

LC fiber optic attenuators Specifications:

LC fiber optic attenuators packing ways:

OEM Service:

Label and package customized is always ready.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

Kocent Optec Limited is one of the largest and best LC fiber optic attenuators manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized LC fiber optic attenuators in stock with our factory. Also, free sample is also available if necessary.

KOCENT OPTEC LIMITED connect you to future.

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 10 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customer. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passiver product such as PLC splitter, fiber optic patch cable/ pigtail, fiber optic adapter, fiber optic un-assembly connector (we can supply the connector part with ferrule and without ferrule), fiber optic protection sleeves (large stock goods, always ready to delivery any time), fiber optic splice closure, fiber optic terminal box, fiber optic distribution frame, indoor and outdoor fiber optic cable, etc. With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 10 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable. All of patch cable is tested 100% with IL less than 0.2dB before shipment and also can pass 3D testing.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost. Customer can choose to send by internaltion express, by air, and by sea.
