KCO-05A Dome Type 1*64 SC/UPC Fiber Optic Splitter Splice Closure FTTH FTTB IP67 PP ABS

Application

The product can be applied in the straight line and branch line connections of optical cables within the diameter of 17mm(φ), all types and structures, when laid overhead, in the pipeline, underground. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

- The case body is made from imported high-intensity engineering plastics (ABS/PP) and formed the shape with mould plastics under high pressure.

- It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

- The case body and cable entrance are sealed with adhesive rubber strip (non-vulcanized) and sealed tape. - - Reliable sealing capability.

- It can be re-opened and easy to maintain.

- Unique disposition of 4 different cable loops (φ12.5, φ17, φ20, φ22, φ26) enables user to choose different outer diameter according to actual conditions, It enhances the reliability of the cable entrance sealed.

- Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

- Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.

Quick detail about horizontal fiber optic splice closure:

- Name: Splitter Splice Closure 1 in 6 out

- Part number: KCO-05A

- Size: 550*200mm

- Weight: about 5.0kg

- Cable entry port: 1 ports

- Cable out port: 6 ports

- Capacity of fibers: 288 cores

- Splice tray number: max. 6 trays

- Can Install: 1x2 Splitter, 1x4 Splitter, 1x8 Splitter, 1x12 Splitter, 1x16 Splitter, 1x24 Spitter, 1x32 Splitter, 1x64 splitter etc

- Material: ABS / PP Plastic

- Packing: 6pcs/ carton box

- Packing size: 58*68*45cm

- Cable Diameter: 7.0-22.0mm

- Working temperature: -30℃ to 60℃

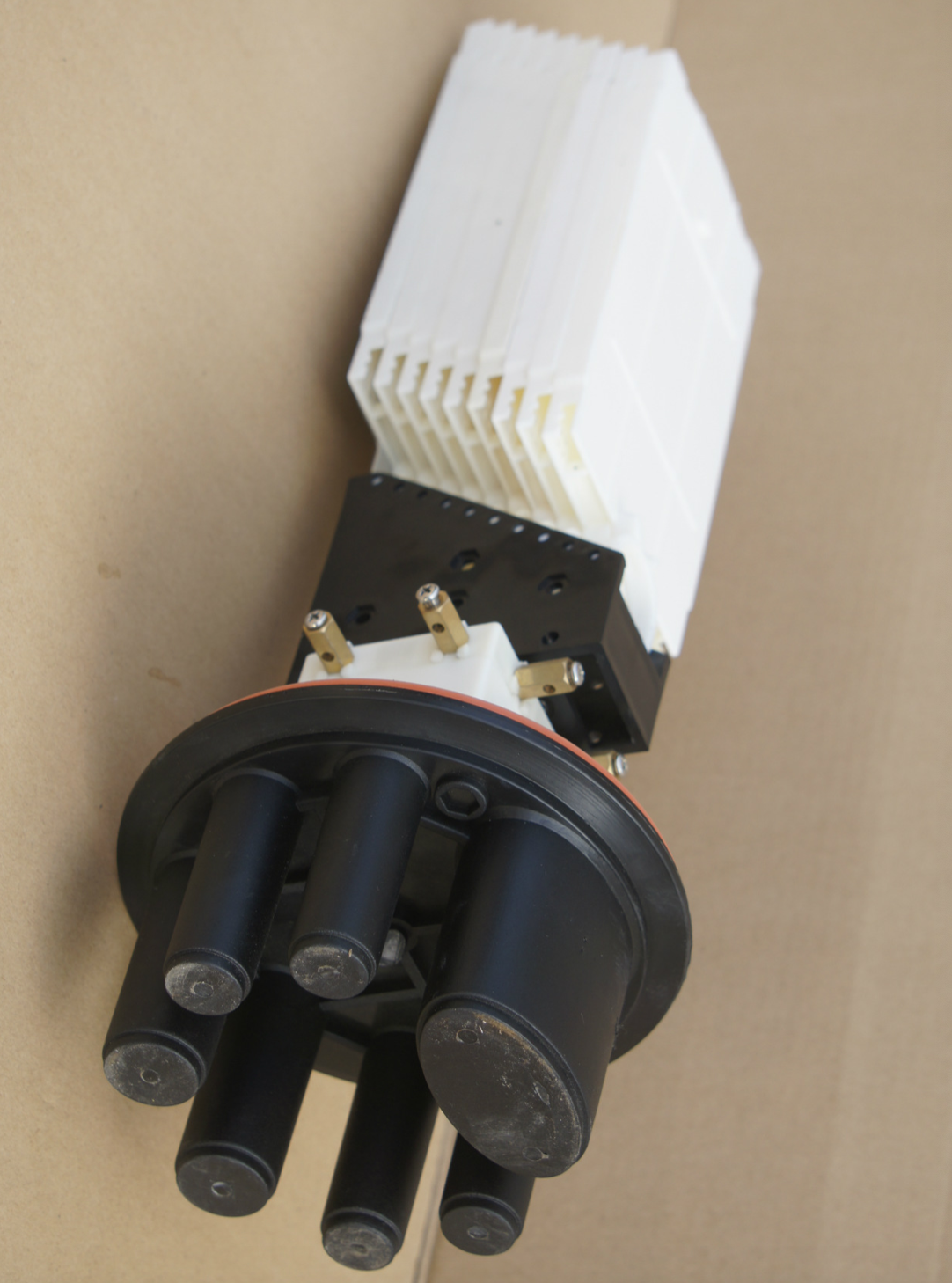

Product pictures:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
