    CATV Fiber Optic Splitter , PLC Splitter Module 2x16 Plastic SC UPC Connector

    Ask Lasest Price
    Brand Name : KCO
    Model Number : PLC-LCA-2x16 or PLC-SCA-2x16
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50,000 pcs/ month
    Delivery Time : 3~7 days after payment
    • Product Details
    • Company Profile

    CATV Fiber Optic Splitter , PLC Splitter Module 2x16 Plastic SC UPC Connector


    CATV Fiber Optic PLC Splitter Coupler 2x16 Plastic Module SC UPC Connector



    2x16 fiber optic plc splitter is also called 2x16 plc fiber optic splitter or 2x16 plc optical fiber splitter or 2x16 optical fiber plc splitter. We can produce 2x16 ABS plastic box Module fiber optic PLC Splitter with connector and without connector!


    2x16 ABS Plastic Module Fiber Optic PLC Splitter Applications:

    - Fiber to The Point (FTTX).

    - Fiber to The Home (FTTH).

    - Local Area Networks (LAN).

    - Cable Television (CATV).

    - Test Equipment.

    - Passive Optical Networks (PON).

    - Gigabit Passive Optical Networks (GPON).


    Fiber Optic PLC Splitter Options:

    - 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.

    - 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.

    - Un-connectorized.

    - Fiber jacketing outside boxes 2mm and up to 3mm.

    - ABS box type or inside metal box/module cassette type.

    - SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect connector options.

    - Custom connector configurations and combinations.


    Fiber Optic PLC Splitter Features:

    - Low insertion loss.

    - Low Polarization Dependent Loss.

    - Excellent Environmental Stability.

    - Excellent Mechanical Stability.

    - Telcordia GR-1221 and GR-1209.

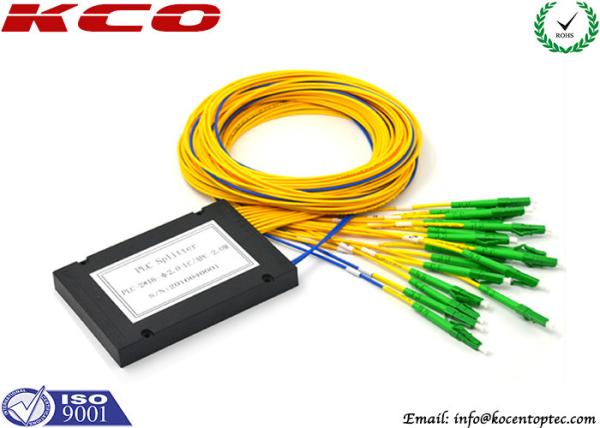

    Product Picture:

    CATV Fiber Optic Splitter , PLC Splitter Module 2x16 Plastic SC UPC Connector


    Fiber Optic PLC Splitter Specifications:


    Fiber length1m or custom length
    Connector TypeCustom specified
    Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
    Directivity (dB) Min *55
    Return Loss (dB) Min *55 (50)
    Power Handling (mW)300
    Operating Wavelength (nm)1260 ~ 1650
    Operating Temperature(°C)-40~ +85
    Storage Temperature(°C)-40 ~ +85
    Port Configuration1x21x41x81x161x321x64
    Insertion Loss(dB) Typical3.67.110.213.516.520.5
    Insertion Loss (dB) Max4.07.310.513.716.921.0
    Loss Uniformity (dB)0.60.60.81.21.52
    PDL(dB)0.20.20.20.250.30.35
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
    Port Configuration2X22X42X82X162X322X64
    Insertion Loss(dB) Typical3.87.410.814.21721
    Insertion Loss (dB) Max4.27.811.214.617.521.5
    Loss Uniformity (dB)11.41.522.52.5
    PDL (dB)0.20.20.40.40.40.5
    Wavelength Dependent Loss(dB)0.80.80.80.80.81
    Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81

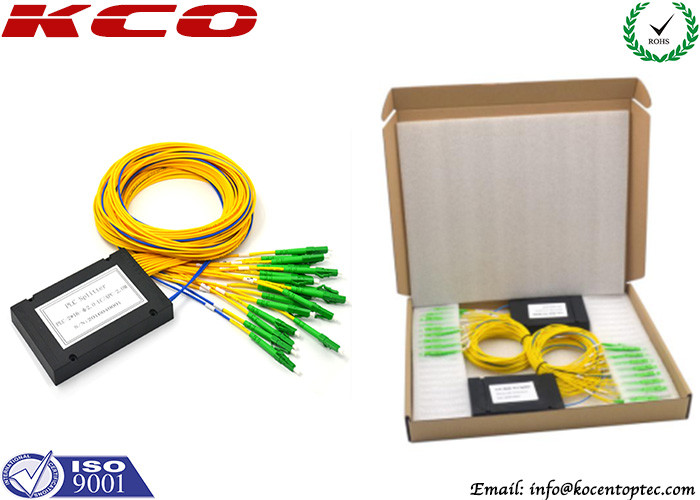

    Our 2x16 ABS Plastic Module Fiber Optic PLC Splitter Packing:


    CATV Fiber Optic Splitter , PLC Splitter Module 2x16 Plastic SC UPC Connector


    OEM/ODM Service is ready:


    CATV Fiber Optic Splitter , PLC Splitter Module 2x16 Plastic SC UPC Connector


    Kocent Optec Limited is one of the largest and best 2x16 fiber optic PLC splitter ABS module 2.0mm manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 2x16 fiber optic plc splitter ABS module 2.0mm in stock with our factory. Also, free sample is also available if necessary.
