GPON EPON FTTH 1x2 2x2 Optical Fiber Splitter Mini Tube Blockless
Type G657A Fiber
Fiber Optic Splitter 1*2 1*4 1*8 1*12 1*16 1*24 1*32 1*64
KOCENT OPTEC LIMITED supply standard quality of 1*2 fiber optic plc
splitter with different length from 0.3m to 2.0m with 0.9mm
diameter of pigtail.
Terminal connector help you add any type of terminal connector such
as SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, etc.
Quick information:
Goods name: Blockless Mini Tube Fiber Optic PLC Splitter
Split way: 2 ways, 1x2 or 2x2
Fiber type: G652D, G657A
Pigtail diameter: 0.9mm
Cable length: 0.3m to 2.0m
Cable cover: PVC, LSZH
Terminal connector: None
Fiber optic PLC Splitter Description:
- PLC splitter are based on Planar Waveguide Technology.
- They provide a cost effentive and space saving networking
solution.
- They are key components in FTTx networks and are responsible to
distribute the signal from central office to numbers of promises.
- They have very wide range of operatng wavelength from 1260nm to
1620nm.
- With it’s compact size, these splitters can be utilized in
in-gruond and earial pedestals as well as rack mount system.
- It is used for small spaces can be easily placed in a formal
joint boxes and splice closure, in order to facilitate welding,
does not need specially designed for spave reserved.
- Our PLC splitter family features either ribbon or individual
fiber output.
- We provides whole series of 1xN and 2xN splitter products that
are tailored for specific applications.
- All splitters provide guaranteed optical performanve and high
reliability that meet GR-1209-CORE and GR-1221-CORE requirement.
Fiber optic PLC Splitter Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.
Fiber optic PLC Splitter Features:
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
- Telcordia GR-1221 and GR-1209.
Fiber optic PLC Splitter Options:
- 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.
- 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.
- Un-connectorized.
- Fiber jacketing outside boxes 2mm and up to 3mm.
- ABS box type or inside metal box/module cassette type.
- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect
connector options.
- Custom connector configurations and combinations.

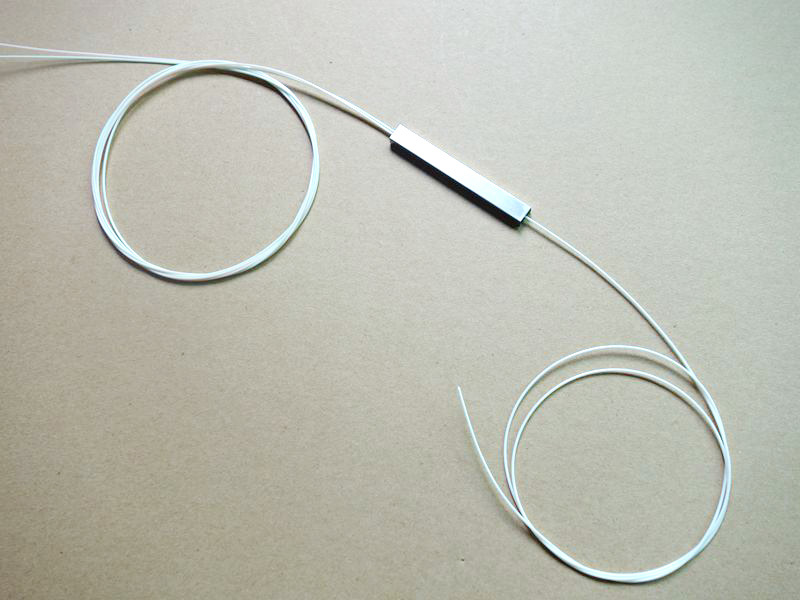

Product picture:
Fiber optic PLC Splitter Specifications:
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
