0.9 mm 1*8 Fiber Optic Splitter / Passive Fiber PLC Splitter 1X8
With Fan Out Kits
Overview:
- Mini type of fiber optic splitter can be a steelless tube or also
can make with a fanout kits to match customer request.
- PLC splitter are based on Planar Waveguide Technology.
- It is used for small spaces can be easily placed in a formal
joint boxes and splice closure, in order to facilitate welding,
does not need specially designed for spave reserved.
- They are key components in FTTx networks and are responsible to
distribute the signal from central office to numbers of promises.
- They provide a cost effentive and space saving networking
solution.
- They have very wide range of operatng wavelength from 1260nm to
1620nm. With it’s compact size, these splitters can be utilized in
in-gruond and earial pedestals as well as rack mount system.
- Our PLC splitter family features either ribbon or individual
fiber output.
- We provides whole series of 1xN and 2xN splitter products that
are tailored for specific applications. All splitters provide
guaranteed optical performanve and high reliability that meet
GR-1209-CORE and GR-1221-CORE requirement.
Quick information:
- 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.
- 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.
- Un-connectorized.
- Fiber jacketing outside boxes 2mm and up to 3mm.
- ABS box type or inside metal box/module cassette type.
- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect
connector options.
- Custom connector configurations and combinations.
Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.
Fiber optic PLC Splitter Features:
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
- Telcordia GR-1221 and GR-1209.

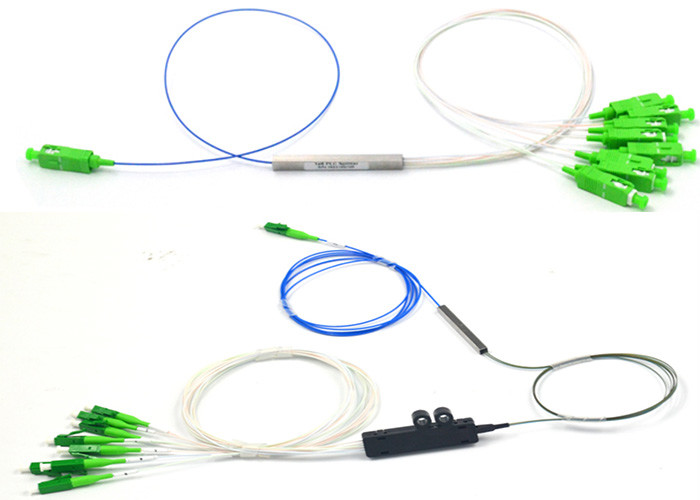

Product picture:
Fiber optic PLC Splitter Specifications:
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
