    1x2 Fiber Optic Splitter , SC APC Passive Optical Splitter 1.0m White Tube

    Ask Lasest Price
    Brand Name : KCO
    Model Number : KCO-Mini-1x2-SCA-White-1.0
    Certification : ISO9001, RoHS, UL
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 20000pcs/month
    Delivery Time : 5-days
    • Product Details
    • Company Profile

    1x2 Fiber Optic Splitter , SC APC Passive Optical Splitter 1.0m White Tube


    1*2 1x2 Fiber Optic Splitter PLC SC/APC 0.9mm 1.0m LSZH White Tube


    Description:

    - Fiber optic PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN.

    - PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.

    - Our PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.



    Features

    - Low insertion loss and PDL

    - High channel number

    - Compact size

    - High reliability

    - Wide operating wavelength and temperature range

    - Excellent channel uniformity

    - Telecordia GR-1221 and GR-1209

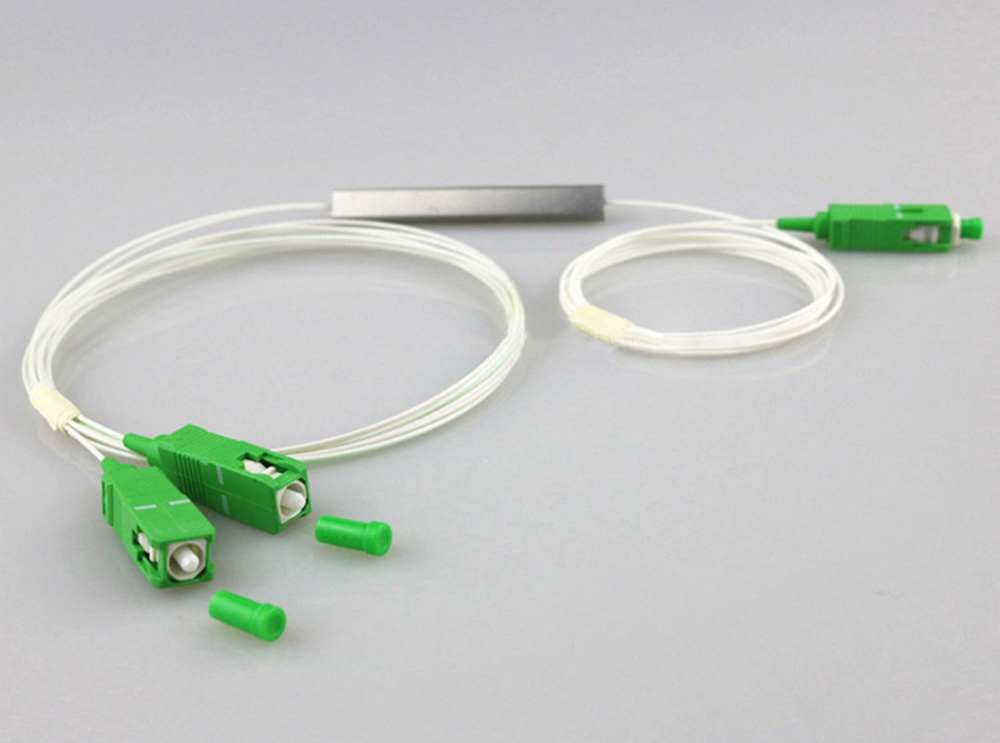

    Products photo:




    Specifications (1XN):


    Port Configration1X21X41X81X161X321X64
    Operating Wavelength (nm)1260 ~ 1650
    Insertion Loss (dB)Typical3.56.810.213.116.220.2
    Max4.07.410.513.516.921.0
    Channel Uniformity (dB)0.50.71.01.41.82.0
    PDL (dB)0.20.20.30.30.30.4
    WDL (dB)0.30.30.30.50.50.8
    TDL (-40ºC ~ 85ºC )(dB)0.50.50.50.80.81.0
    Dimensions for Fan-out (mm)60(L)x7(W)x4(H)60(L)x12(W)x4(H)80(L)x20(W)x6(H)
    RL (dB)> 55dB
    Directivity (dB)> 55dB
    Fiber TypeG652D or G657A
    Operating Temperature Range-40ºC ~ 85ºC



    Q: What is your best price?

    A: Based on the quantity of our products and the quantity of your order, we would quote the best matcing price all the time.


    Q: Can you provide OEM and ODM serveice?

    A: KCO with more than 10 years of experience in OEM service, we get many OEM order about fiber optic products. If you have request to make a your own design with your own LOGO of fiber optic product, please contact with our sales team to get best support.


    Q: What is your MOQ?

    A: Sample not quantity request, bulk order: at least 100pcs/ model.


    Q: What is the lead time of my order?
    A: Sample order: 3-5days, mass production order: 1-2weeks.


    Q: Can I get a free sample?
    A: New customer is not acceptable.


    Q: How about the warranty?
    A: 1 year for most products.


    Q: How do you ship the goods to us?

    A: - Sample / Small Order: DHL / TNT / UPS / Fedex / EMS / Aramex / SF Express, ...

    - Mass Production Order: by air / by sea

    - Standard Export Port: Ningbo / Shenzhen

    Q: Can you list some of your main customers?

    A: Dosmetical customers include: Huawei, ZTE, Fiberhome, China Telecom, China Mobile, ... Abroad customers include: TE, Commscope, Cisco, Cerizon, Smart, ...


    Q: Why choose KCO to cooperate?

    A: - Reliable and exprerienced communication equipment manufacturer for more than 10 years.

    - First-class production line and strict quality management system.

    - Professional procedure system and bulk production capacity to guarantee fast delivery time.

    - Most competitive price to meet your budget.

    - Professional RD team to design and innovate new products ased on our rich experience.

    - Fast and Effective after sales service.
