CPRI Armored ODVA DLC PDLC Outdoor Fiber Optic Patch Cord Cable
Assemblies FTTA
We can provide ODLC PDLC outdoor fiber optic patch cable assemblies
for 2 cores, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, ect.
Also OEM Service is available, such as inside fiber, connector,
cable length, color, cover materials, package all can be
customized. All our ODLC PDLC outdoor fiber optic patch cable
assemblies meet RoHS, UL Compliant, and 100% test Insert loss
before shipment.
Quick Details:
- Type: ODVA DLC/ ODVA DLC fiber optic patch cord
- Mode: Single mode and Multimode OM1, OM2, OM3, OM4, OM5
- Cable Fan-out: 0.5M, 1M, or customized
- Ferrule End-face: PC, UPC, APC
- Cable core: 2 cores, 4 cores, 6 cores...or customized
- Cable length: 1M, 2M, 3M,100M….or customized
Description:
The PDLC connectors, together with the support optical cable, are
becoming the standard interface specified in 3G, 4G and WiMax Base
Station remote radios and Fiber-to-the Antenna applications.
Features:
- FTTA , WiMax base station, CATV outdoor Application.
- Optional Diameter: 4.8mm, 7.0mm or Customized.
- Optional Jacket: LSZH, PE; Armored or Non Armored.
- IP67 Waterproof protection.
- Standard Duplex LC connector, well connected with standard LC
adaptor.
- Available Single mode and Multimode.
- IP67 protection, salt-mist proof, humidity proof, dust proof.
- Aluminum housing, compact design.
- Broad temperature range and wide range of indoor and outdoor
cables.
- Easy Operation, reliable and cost-effective Installation.
Applications:
- FTTx: FTTA, FTTB, FTTC, FTTH, FTTO, ...
- Telecommunication networks
- CATV, LAN, MAN, WAN, Test &Measurement
- Optical access network
- Fiber optic communication networks

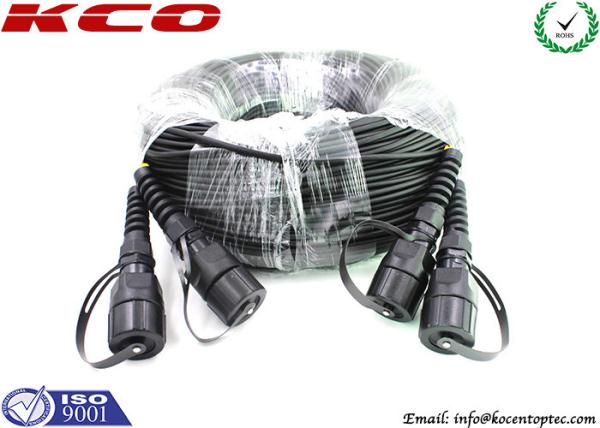

ODLC PDLC outdoor fiber optic patch cable assemblies product
pictures:
Specification of ODLC PDLC outdoor fiber optic patch cable
assemblies:
| Item | Single mode, Multimode |
| Ferrule End-face | PC | UPC | APC |
| Insert attenuation | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥45dB | ≥50dB | ≥55dB |
| repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C (LSZH/PE) |
| Outer diameter | 1.6mm(fan-out cable part), 4.8mm, 7.0mm |
ODLC PDLC Assembly Performance:
| Item | Data |
| Insertion Loss | ≤0.2dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥65dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
| Authentication | Meet with RoHS |
Outdoor fiber optic cable Specification:
| Item | Data |
| fiber | OS2,OM1,OM2,OM3,OM4 |
| Tension member | Aramid Kevlar, Armored Tube |
| Max. attenuation | SM: ≤0.34dB/km at 1310nm, ≤0.20dB/km at 1550nm MM: ≤0.60dB/km at 1300nm, ≤2.3dB/km at 850nm |
| Tensile resistance (short term) | 500N (no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| Inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
Our ODLC PDLC outdoor fiber optic patch cable assemblies packing
ways:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable,
package bag, label or any where. It is no any problem. Our OEM and
ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
