Outdoor FTTA water-proof IP67 ODVA LC duplex fiber optic patch
cable Sealed Circular
About ODVA fiber optic patch cables:
- ODVA fiber optic cables are IP67-rated rugged cables, they are
used in FTTA, industrial, military, and many similar indoor/
outdoor harsh environments.
- ODVA LC fiber patch cables are duplex type cables, the connector
features its spring loaded metal protection shutter and high
precision fiber ferrules.
- ODVA LC is available in both single mode and multimode versions
with custom cables.
- ODVA Connectors are designed to exceed the requirements of ODVA.
The connectors meet IP67 environmental sealing ratings and are the
ideal choice for a low cost, easy to use solution in Industrial,
Fiber to the Antenna (FTTA), or any other harsh environmental
applications. Our offering includes SC/Simplex (1-fiber), LC/Duplex
(2-fiber) and MPO male or female (1 to 12-fibers).
- ODVA Duplex LC fiber patch cable assemblies IP67 are available in
both single mode and multimode version, this ODVA LC is a typical
outdoor use fiber cable, suitable for different temperature and
weather, especially ideal for FTTA and harsh environment use.
- IP 67 ODVA LC duplex cables are designed as per IEC 61076-3-106
interfaces standard, integrated with our quality LC fiber
connectors with low optical loss
- With a rugged and armored PU/LSZH jacketed optical cable body.
- ODVA LC patch cable is available in 9/125 LC/UPC, 50/125
OM2/OM3/OM4 LC/UPC and 62.5/125 OM1 LC/UPC.
- Cable assemblies can be custom made in ODVA Duplex LC to Breakout
dual LC, or ODVA LC to other popular connectors.
- The Optical Fiber Single mode LC Duplex ODVA-LC cables are
perfect solution for industrial and harsh environment use to
prevent from the moisture, sunshine, gases and liquid.
- They are with strong armored structure cable, together with
circular sealed connector body and dust caps, they can function
under any weather conditions.
Specifications:
- Rugged IP67 rated enclosure
- Exceptional optical performance in a high density LC standard
compliant connector.
- Integrated caps on the connectors and shutters in the couplers
provide both laser eye safety and end face protection during
mating/demating
- Bayonet-style self-aligning, keyed housing
- Ease of use in all mating situations
- Cable Type OFNR
- Multimode and Singlemode
- Ferrule Material Zirconia
- Outside Cable Diameter 7.0mm
- Flammability Rating OFNR (Riser) Jacket
- Cost effective solution for in house termination
- IP67 Water immersion and Dust protection for hash environment
- Wide range of operational temperature for outside plant -40℃/+70℃
- Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to
3.0mm jacketed subunits
- Chemical Resistance
- Intermatable to other Industrial LC adaptor per IEC 61076-3-106
- Simple assembly requiring no special tools
- Durable mechanical mating, minimum of 500 matings

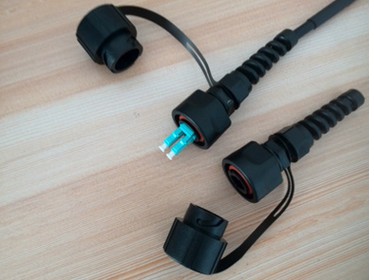

Product pictures:
Technical Data:
| Parameter | Unit | LC duplex | LC duplex | LC duplex | LC duplex |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Repeatability | dB | ≤0.1 |
| Durability | dB | ≤0.2dB typical change, 1000 matings |
| Operating temperature | ºC | -20 ~ +75 |
| Storage temperature | ºC | -40 ~ +85 |
Technical Test Data:
| Test item | Test condition |
| Wet-resistance | Temperature:85ºC/relative humidity 85％/14days/insertion loss≤0.1dB |
| Temperature change | Temperature: -40ºC~+75ºC/relative humidity 10％-80％ /42
repetitions/14days/ insertion loss≤0.1dB |
| Water resistance | Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
| Vibrancy | Swing 1.52mm/frequency 10Hz～55Hz,/ X,Y,Z three directions:2 hours
/insertion loss≤0.1dB |
| Load bend | 0.454kg load/100circles insertion loss≤0.1dB |
| Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
| Tensility resistance | 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
| Strike | High 1.8m,three directions ,8 in each direction/insertion
loss≤0.1dB |
| Reference standard | Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord
or pigtail.
