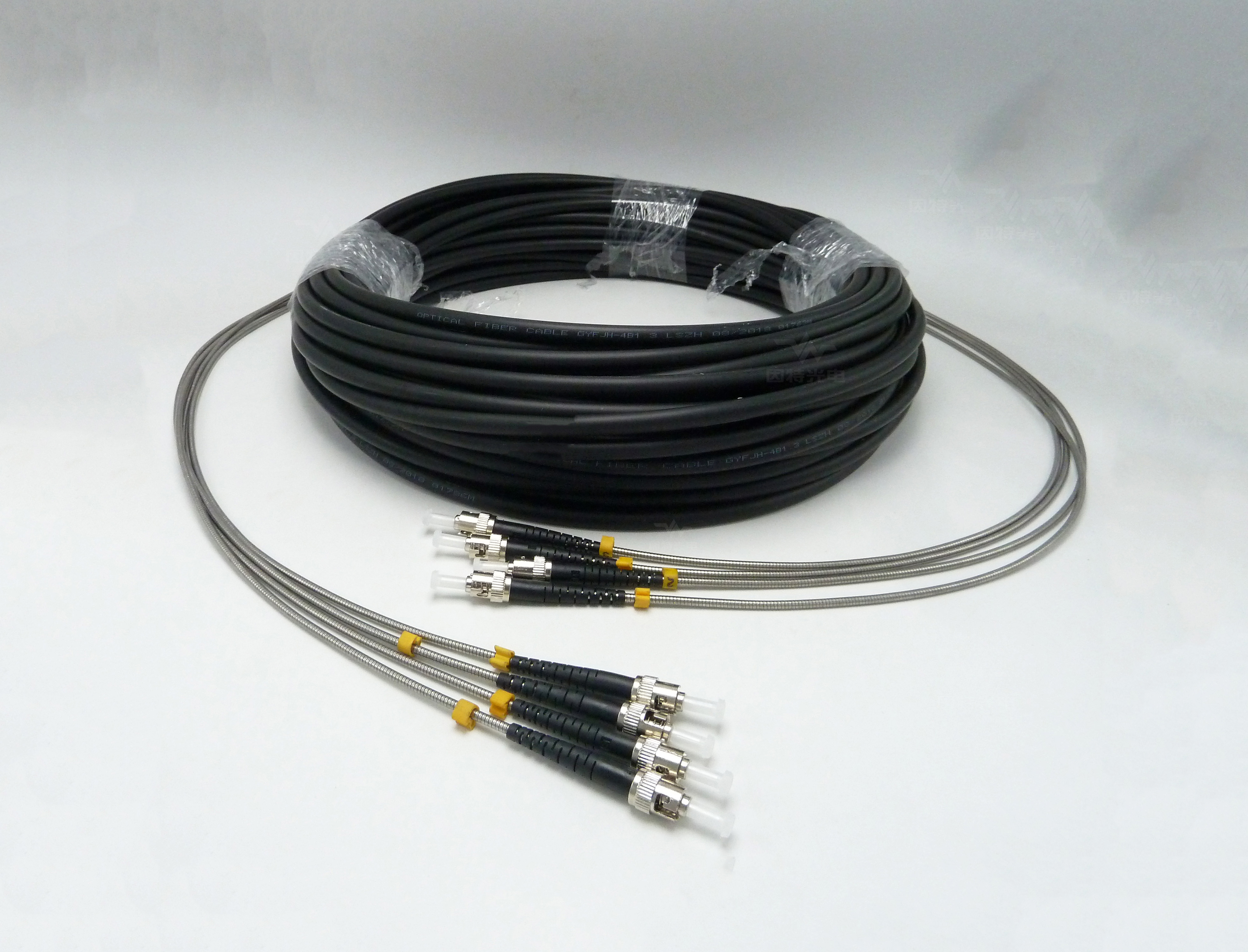

ST 2fo CPRI RRU FTTA Optical Fiber Patch Cord Amored Non-armored
Field Army TPU LSZH
CPRI fiber patch cable for the new generation wireless base
stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the
FTTA(fiber to the top of the tower) program requirements for
outdoor environment conditions and adverse weather conditions.
Especially in the 3G, 4G, 5G and WiMax base stations and
fiber-optic distributed zoom technology, CPRI fiber patch cable are
rapidly becoming the standard connector interface.
KOCENT OPTEC LIMITED provides OEM and ODM service for all types of fiber optic patch
cord.
Special in army field outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC
patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI
patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4
patch cord.
We supply all kinds of field operations fiber optic patch cord with
different types of water-proof connector, use for Telecom 3G, 4G,
5G, LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we
supply Telecom standard of goods to our customer.
Application:
1- Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS,
CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to
link the base station with the remote unit at the antenna mast.
2- Automation and industrial cabling
provides highest reliability and operating safety. The ruggedized
design provides highest mechanical and thermal robustness which
keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
3- Surveillance systems
Security camera manufacturers choose ODC connectors for its compact
size and robust design. ODC assemblies are easy to install even in
areas difficult to access and provide highest installation safety.
4- Naval and ship building
The high corrosion resistance convinced both naval and civil ship
builders to use ODC assemblies for on-board communication systems.
The nickel plated connectors withstand humid and salty environments
and guarantee life times of 20 years and beyond.
5- Broadcast
offers a range of mobile cabling systems and ODC assemblies for
temporary cable installations
required for the broadcasting of sport events, car racing, etc.and
for temporary connections in case of natural hazards.
Parameter:
| Item | Parameter |
| Connector | ST/UPC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥35dB |
| Fiber mode | SM 9/125, OM1 62.5/125, OM2 50/125um, OM3 50/125, OM4 50/125, OM5
50/125 |
| Operating wavelength | 850nm,1310nm, 1550nm |
| Test wavelength | 850nm,1310nm, 1550nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
Quick Informations:
- Connector End 1: ST
- Connector End 2:
ST,
Optional: LC, FC, SC, ST, E2000, ....
- Cable:
Armored,
Optional: non-armored
- Cover:
LSZH,
Optional: TPU, PE
- Outer Diamerter:
7.0mm,
Optional: 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm
- Inner Diameter:
2.0mm,
Optional: 0.9mm, 0.6mm
- Fanout part:
2.8mm armored,
Optional: 3.0mm non-armored, 2.0mm non-armored
- Color: Black
- Length: 5m, 10m, 20m, 30m , 40m, 50m, 60m, 70m, 80m, 90m, 100m,
150m, 200m, 300m, 500m, ...
Features:
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- Plug has tolerance free design, fully free floating on Z-axis
- No Cable buckling during or after installation
- Cost effective metal die cast bulkhead
- Field installable version available
- Water proof, dust proof and corrosion resistant
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meet the requirements of relevant
standards;
- The mechanical characteristics of jacket meet the requirements of
relevant standards;
- Soft, flexible, water blocked, UV resistant, easy to lay and
splice, and with big capacity data transmission;
- Meet various requirements of market and clients
- Bulkhead cutout allows for removal of transceiver through the
bulkhead (no need to open PRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
CPRI Patch Cord Constructions:

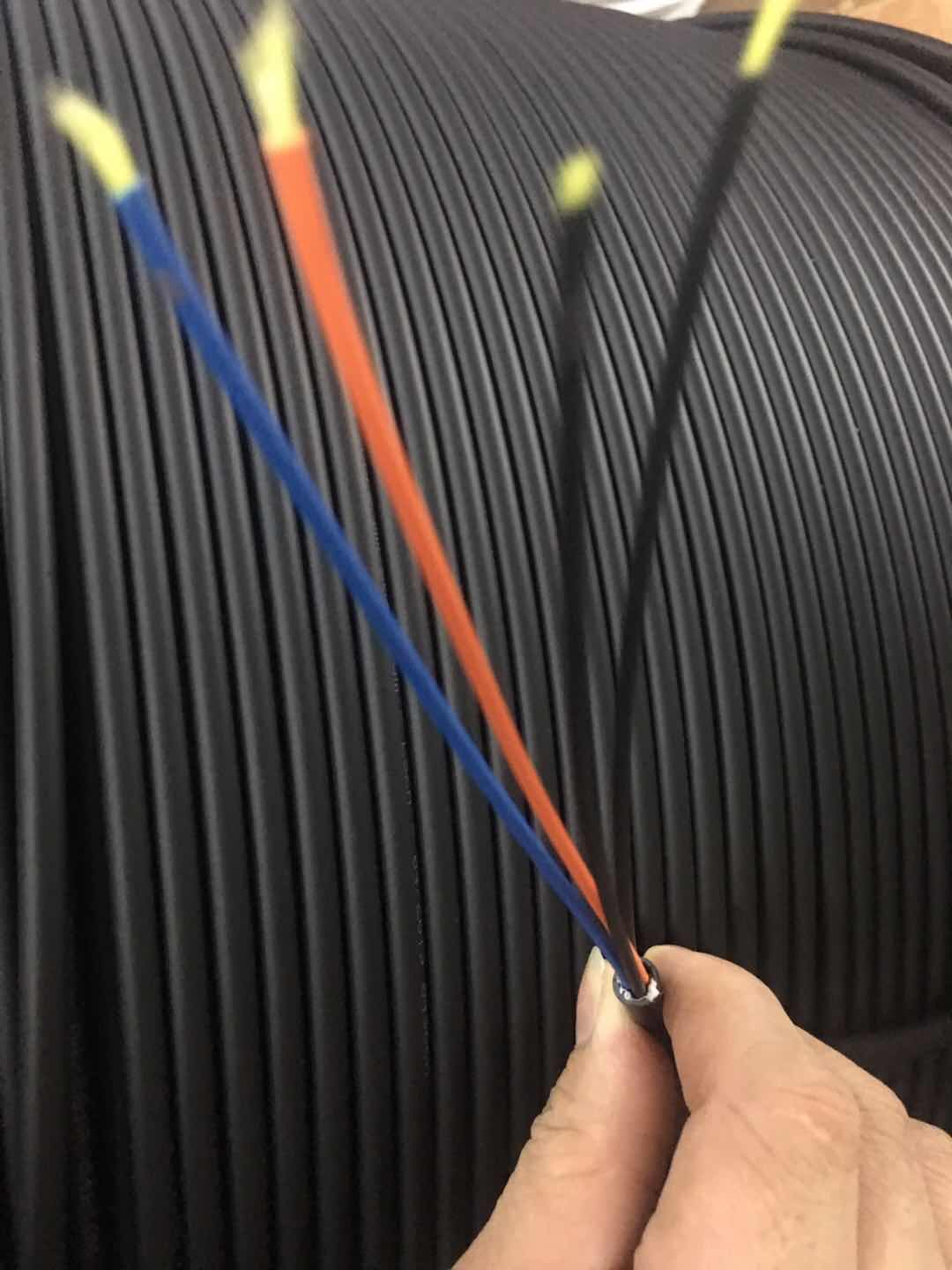

7.0mm Non-armored Field Cable Construction:
7.0mm Armored Field Cable Construction:
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side A: SC with armored |
| Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC),
NSN, Ericson, Huawei, ... |
| Fiber count | 2 cores
4 cores
6 cores
8 cores
12 cores
24 cores
48 cores |
| Fiber Type | SM
G.652D
G.657A (A1, A2, B3, ...) |
| MM
OM1
OM2
OM3
OM4
OM5) |
| Jacket Materials | LSZH
TPU
PE |
| Cable diameter | 4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm |
| Testing Wavelengths | SM:
1310±30nm
1550±30nm |
| MM:
850±30nm
1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 | ≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB (PC/UPC) |
| ≥55dB (APC) |
| ≥35dB (UPC) |
| Exchange ability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord |
| Operating Temperature | -14℃~+ 85℃ |
| Storage Temperature | -40℃~+85℃ |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
