    3 In 3 Out 144 Core Horizontal Fiber Optic Joint Box 144 Fibers IP65 Outdoor FTTA KCO-H33120

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-H33120
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    3 In 3 Out 144 Core Horizontal Fiber Optic Joint Box 144 Fibers IP65 Outdoor FTTA KCO-H33120


    KCO-H33120 3in 3out Fiber Optics Splice Enclosure Box 144 Fibers IP 65 Outdoor​



    Description:

    - KCO-H33120 Fiber optic splice closure is inline type splice closure.

    - Maximum tray nuber: 6 trays

    - Tray splice point number: 24 fiber

    - Maximum capaciry: 144 cores.

    - Fiber optic splice closures are widely apply for the connecting of optical cable.

    - It Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network.

    - Innovative insert plates and fixing bolts, used to fix and seal FOSC, simple installation.

    - The FOSC is suitable for protecting fiber cable splices in straight-through and branching.

    - Good capability of corrosion resistance, anti-aging, anti-UV, fire resistant, impact resistant.

    - Prevent condensation inside box, waterproof, quakeproof, while protecting splice closure during pulling.

    - It ensures long-term reliability and usage under ambient temperature from -40~+65 °C.


    Quick detail:

    - Name: Inline/ Horizontal Type Fiber Optic Enclosure Box

    - Part number: KCO-H33120

    - Material: PC

    - Cable entry port: 3 inports and 3 outports, 6 ports

    - Capacity of fibers: 144 cores

    - Splice tray number: max. 6 trays

    - Cable Diameter: 7.0-22.0mm

    - Working temperature: -40℃ to 65℃

    - Packing: 10pcs/ carton box

    - Size: 420*200*120mm

    - Weight: about 2.2kg

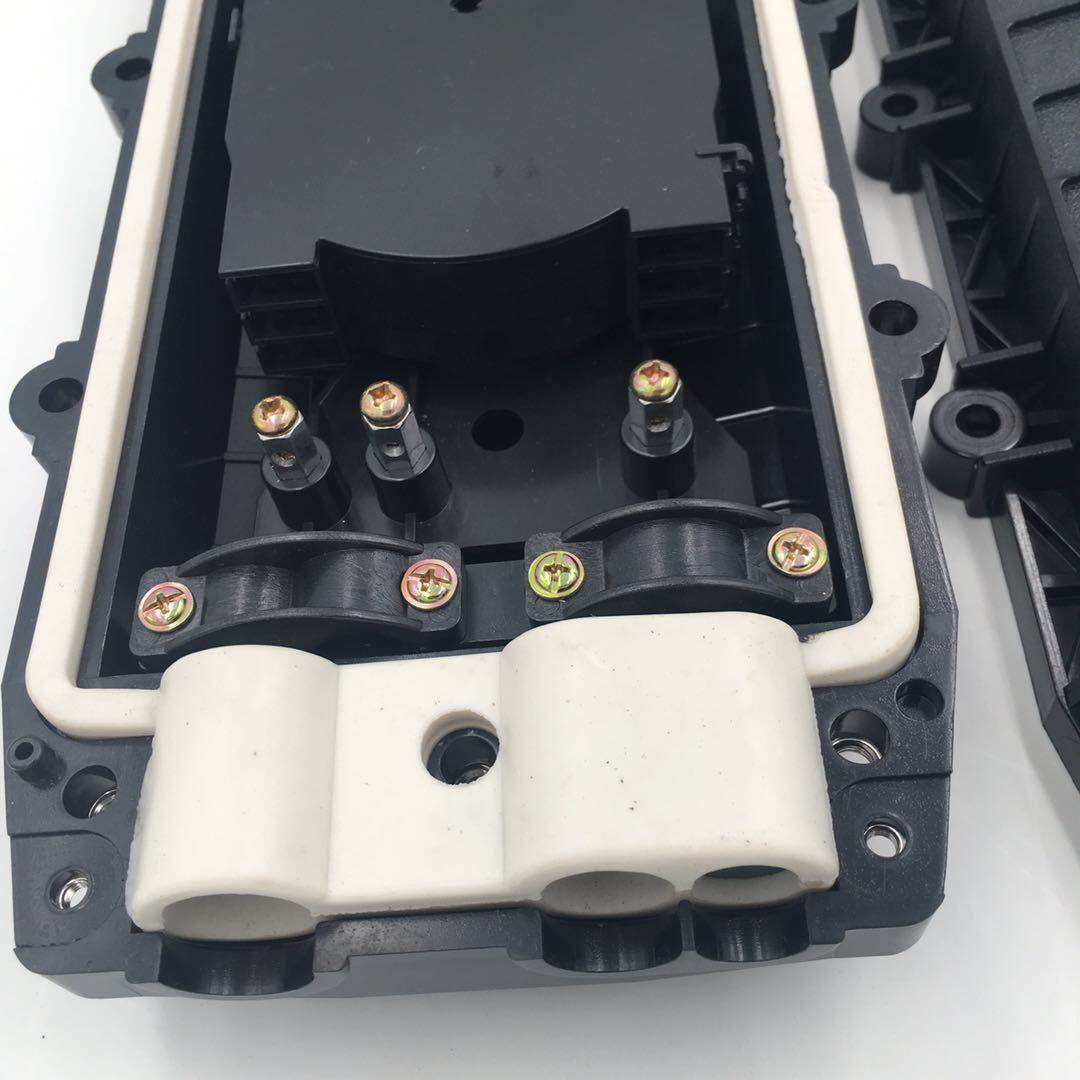

    Product pictures:



    Main parts:

    No.NameQuantityUsageRemark
    1Crust1 setProtecting fiber cable splices in whole
    2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
    3Foundation1 setFix cable,reinforced core and tray
    4Seal fitting1 setAir-proof between cover and bottom
    5Port plug4 piecesSealing empty ports
    6Valve1 setPressure measurement,inspection sealingConfigure by user

    Accessories list:

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
    4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    5Hanging hook1 setFor aerial use
    6Label tape1 pieceSign fiber
    7Spanner1 pieceInstall bolts of shell
    8Desiccant1 bagDesiccating air.

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
