    Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-A-2-2-01
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON


    FTTH GPON Aerial Fiber Optic Joint Closure Connection Box 12 Cores KCO-A-2-2-01


    Descriptions:

    - Name: Aerial Optical Fiber Splice Enclosure Connection Box

    - Application: Outdoor, Aerial

    - Part number: KCO-A-2-2-01

    - The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.
    - All property indexes are in accordance with National YD/T814-1996 Standard.
    - The case body is made from imported high-intensity engineering plastics (ABS or ABS+PC) and formed the shape with mould plastics under high pressure.

    - It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.
    - The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape.

    - Reliable sealing capability.

    - It can be re-opened and easy to maintain.


    Quick informations:

    - Name: Aerial Optical Fiber Splice Enclosure Connection Box

    - Application: Outdoor, Aerial

    - Part number: KCO-A-2-2-01

    - Color: Black

    - Material: ABS / PC Plastic

    - Cable entry port: 4 ports

    - Capacity of fibers: 24 cores

    - Splice tray number: max. 1 trays

    - Cable Diameter: 7.0-22.0mm

    - Working temperature: -40℃ to 65℃

    - Size: 265*215*35mm

    - Weight: about 1.0kg

    - Packing: 20pcs/ carton box


    Applications:

    - Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

    - Widely used in FTTH access network
    - Telecommunication networks
    - CATV networks
    - Data communications networks
    - Local area networks


    Features:

    - Great corrosion resistance
    - Suitable for any harsh environment
    - Anti-lighting

    - Great water-proof function.

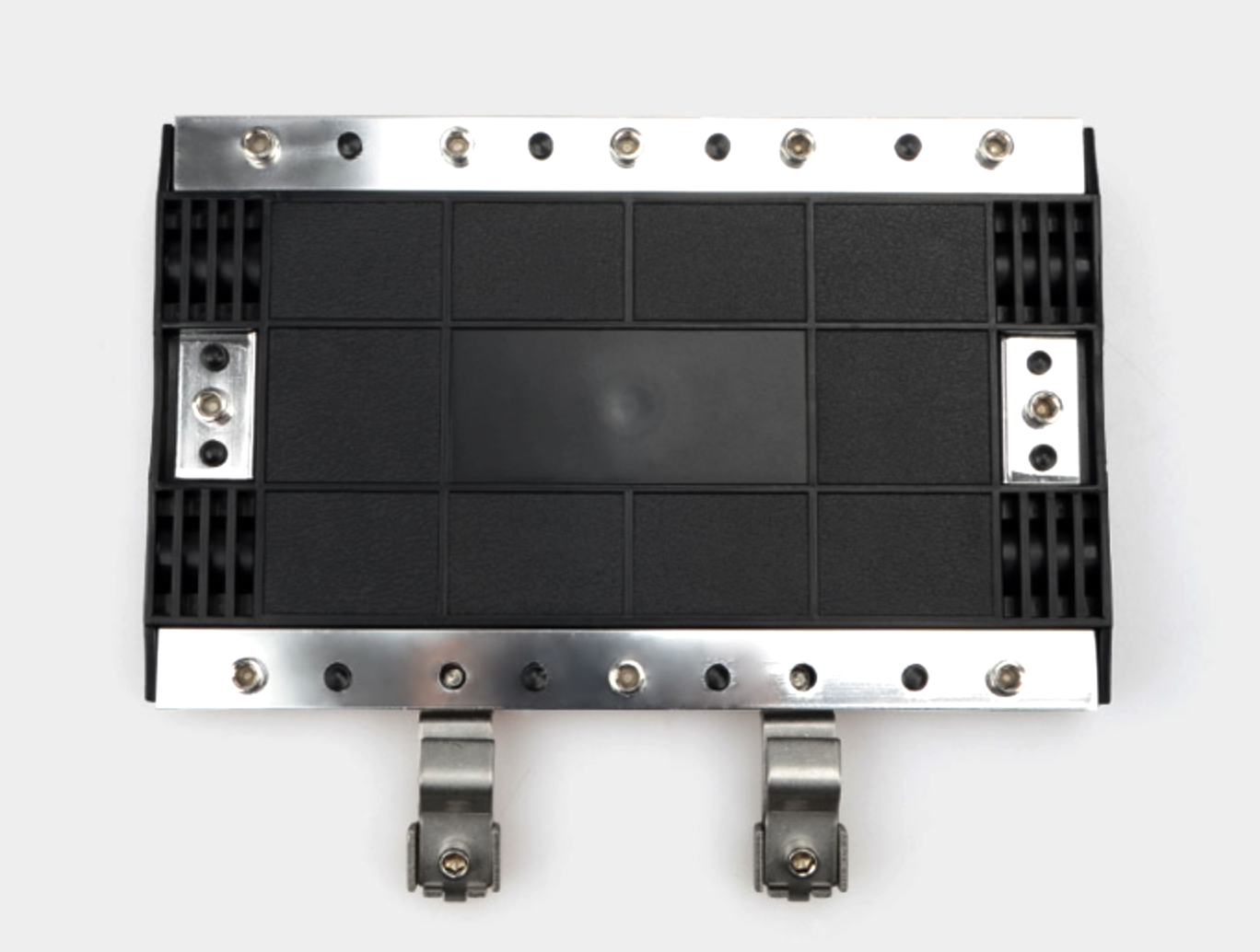

    Product pictures:


    Main parts:

    No.NameQuantityUsageRemark
    1Crust1 setProtecting fiber cable splices in whole
    2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
    3Foundation1 setFix cable,reinforced core and tray
    4Seal fitting1 setAir-proof between cover and bottom
    5Port plug4 piecesSealing empty ports
    6Valve1 setPressure measurement,inspection sealingConfigure by user

    Accessories list:

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
    4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    5Hanging hook1 setFor aerial use
    6Label tape1 pieceSign fiber
    7Spanner1 pieceInstall bolts of shell
    8Desiccant1 bagDesiccating air.

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
