Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered

    Buy cheap Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered from wholesalers

    Buy cheap Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered from wholesalers
    • Buy cheap Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered from wholesalers
    • Buy cheap Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered from wholesalers

    Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-Non-Metallic-Field-12fo
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Multi Optical Cable Non Metallic Om3 Om4 Military Army Field Tight Buffered


    Military Army Field Fiber Optic Cable Non Metallic SM MM OM3 OM4 6.0mm TPU sheath

    4fo 8fo 12fo 24fo


    Common:

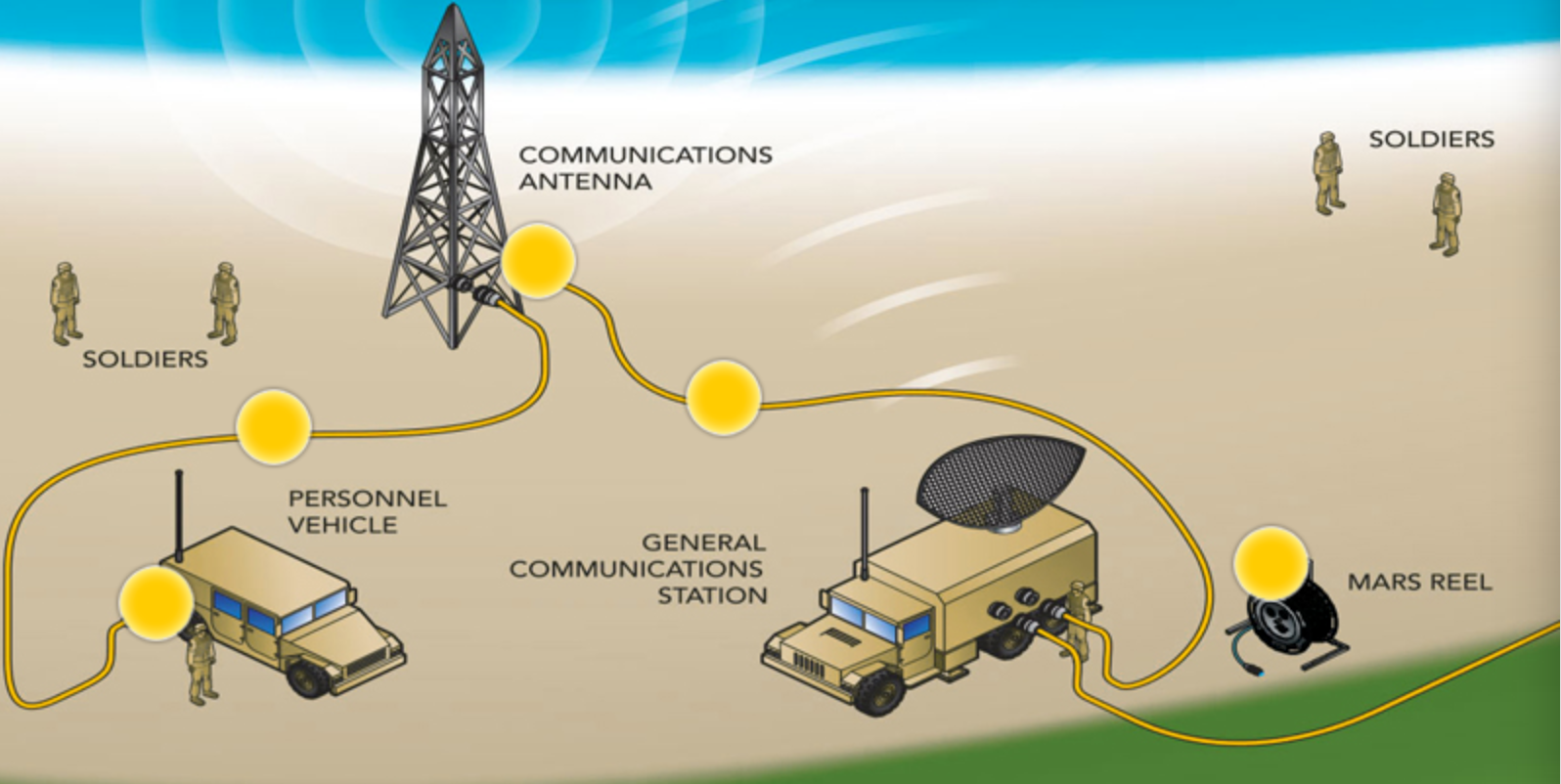

    - Today’s military personnel face a multitude of challenges due to the ever changing operation theater.

    - Military Army Field Fiber Optic Cable Non Metallic SM MM OM3 OM4 6.0mm TPU sheath 4fo 8fo 12fo 24fo

    - To improve safety and maximize situational awareness, military forces continue to upgrade communications and monitoring infrastructure.

    - Investing in fiber optic systems as a cost-effective network alternative provides essential communications solutions, including greater bandwidth for real-time voice, data and video applications, all in easily deployable platform.

    - It is equally as critical that these communication systems yield a reliable network between the theater and command control center.

    - Military approved and certified fiber optic cables and harsh environment connectors offer the reliability and performance needed when communications are vital for the success of the mission.

    - Designed for uncompromised dependability in the harshest of conditions, these military-grade physical plant fiber cables and connectivity products have been tested to the most extreme military standards and are "real world" battlefield proven.



    Temperature Range: -20°C~+70°C


    Characteristics:

    - Small outer diameter, light weight.

    - Flame-retardant, easy to strip, low attenuation, highly soft.

    - High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.

    - Direct splicing between tight buffered cables and need no tie-in box or pigtail.

    - Suitable for installation,operation and convenient for maintenance.


    Product Photos:


    Fiber optic cable Technical Parameters:


    Cable CountOut sheath
    Diameter
    WeightMinimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM)(KG)short termlong termshort termlong termshort termlong term(℃)
    2410.5105.001500600100030020D10D-40+60
    3610.5105.001500600100030020D10D-40+60
    4210.5105.001500600100030020D10D-40+60
    4810.5105.001500600100030020D10D-40+60
    6010.5105.001500600100030020D10D-40+60
    7213.5208.001500600100030020D10D-40+60
    9613.5208.001500600100030020D10D-40+60
    14415.5295.001500600100030020D10D-40+60

    Optical Characteristics:
    Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
    A1b:62.5/125
    SinglemodeG.652(A,B,C)B1.1:Conventional fiber
    G.652DB2: Zero dispersion shifted
    G.655B1.2 :Cut-off wavelength shifted
    G.657(A1,A2 ,B3)B4: Main technical data for positive
    dispersion shifted single-mode fiber

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
