12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design

    Buy cheap 12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design from wholesalers

    Buy cheap 12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design from wholesalers
    • Buy cheap 12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design from wholesalers
    • Buy cheap 12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design from wholesalers

    12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : Indoor cable, 12 core cable
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design


    12 Core Distribution Loose Tube Fibre Optic Cable Indoor Single Fiber Armored


    KOCENT OPTEC LIMITED can supply all diameter of single mode, multimode of indoor fiber optic cable such as 0.6mm, 0.9mm, 1.6mm, 1.8mm, 2.4mm, 2.8mm, 3.0mm etc with PVC or LSHZ cover for fiber optic patch cable and fiber optic pigtail production. We can make simplex, duplex or multi-fibers if you want. We also can supply OEM, ODM servicer for fiber optical cable, can help you print your own Brand LOGO on the cable and package. Please contact with us by phone or by e-mail to get more informations about them.


    Indoor fiber optic cable Characteristics:

    - 12 cores distribution loose tube fiber optical cable armored

    - More tight buffered design.

    - Round construction.

    - Hight strength Kevlar yarn member.

    - Saft. Easy to strip.


    Indoor fiber optic cable Applications:

    - Adopted to indoor distribution

    - Suitable for floor connection.

    - As pigtail of communication equipment.

    - Suitable for communication equipment served.

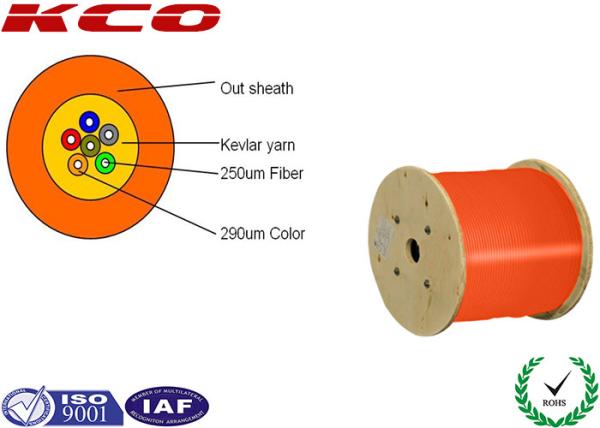

    Infoor fiber optic cable constructions:


    12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design12 Core Fiber Optic Cable Inside Single Fiber Armored More Tight Buffered Design


    Indoor fiber optic cable Technical Parameters:


    Technical Parameters:
    Cable CountOut sheath
    Diameter
    Fiber
    Diameter
    WeightMinimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM)(UM)(KG)short termlong termshort termlong termshort termlong term(℃)
    22.02504.2530015030015020D10D-40+60
    42.02504.2530015030015020D10D-40+60
    63.02507.530015030015020D10D-40+60
    83.02507.530015030015020D10D-40+60
    123.02507.530015030015020D10D-40+60
    243.0250830015030015020D10D-40+60

    Optical Characteristics:
    Fiber SortMultimodeG.651A1a: 50/125Graded-index fiber
    A1b: 62.5/125
    Single modeG.652(A, B, C)B1.1: Conventional fiber
    G.652DB2: Zero dispersion shifted
    G.655B1.2: Cut-off wavelength shifted
    G.657(A1, A2, B3)B4: Main technical data for positive dispersion shifted single-mode fiber

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
