    Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-GCYFY
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct


    Air Blown Micro Duct Jetting Fiber Optic Cable PE Sheath Multimode OM1 OM2 OM3 OM4 OM5


    Description:

    - Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with waterproof compounds.

    - FRP is applied as central strength member.

    - Loose tubes are SZ-stranded around the strength member.

    - Water blocking yarns are used in and over the cable core to prevent it from water ingress.

    - Polyethylene sheath is applied over the cable core as the outer PE sheath.


    Cable Description:

    12/24/36/48//72/96/144 G.652D SM-fibers.

    Loose tubes SZ-stranded.

    Suitable for air blown cable in micro-duct installation.


    Working Condition:

    Transportation and storage temperature:-40℃~+70℃

    Installation temperature: -15℃~+60℃

    Operation temperature: -20℃~+70℃

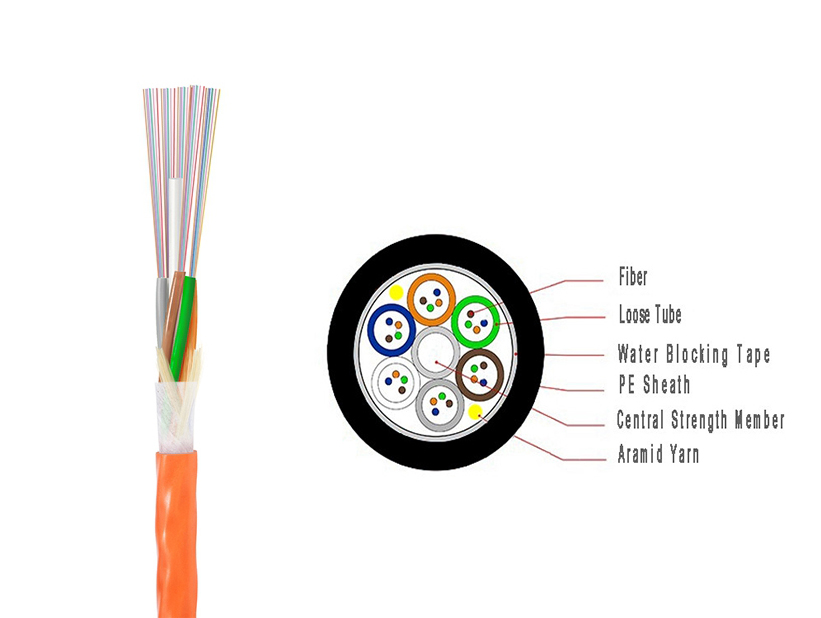

    Construction:


    Parameters of optic fiber cable:


    CategoryDescriptionSpecification
    Geometrical CharacteristicsCladding diameter125.0 ± 1 mm
    Cladding non-circularity£ 1.0 %
    Core concentricity error£ 0.6mm
    Coating diameter245± 10 mm(Before Colored) 250 ± 15 mm (Colored)
    Coating/cladding concentricity error£ 12mm
    Optical CharacteristicsMode field diameter at 1310 nm9.2 ± 0.4 mm
    Point discontinuity£ 0.05dB
    Attenuation at 1310 nm£ 0.34 dB/km£ 0.35 dB/km
    Attenuation at 1383 nm£ 0.34 dB/km£ 0.35 dB/km
    Attenuation at 1550 nm£ 0.21 dB/km£ 0.22dB/km
    Attenuation at 1625 nm£ 0.23 dB/km£ 0.24dB/km
    Dispersion in 1288 – 1339 nm£ 3.5 ps/(nm·km)
    Dispersion in 1271 – 1360 nm£ 5.3 ps/(nm·km)
    Dispersion at 1550 nm£ 18 ps/(nm·km)
    Zero dispersion wavelength1300 – 1324 nm
    Zero dispersion slope£ 0.092 ps/(nm2·km)
    Cable cut-off wavelength£ 1260 nm
    Polarization mode dispersion individual fiber£ 0.2 ps/Ökm
    Polarization mode dispersion design link value (M=20, Q=0.01%)£ 0.1 ps/Ökm
    Macro-bend loss (100 turns, 30mm radius, 1550/1625nm)£ 0.1 dB
    Mechanical SpecificationProof stress level³100kpsi (0.69 GPa)
    Coating strip force(peak value)1.3~8.9N
    Fiber curl (Radius)³ 4 m

    Cable Production Process:


    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
