TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device

    Buy cheap TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device from wholesalers

    Buy cheap TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device from wholesalers
    • Buy cheap TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device from wholesalers
    • Buy cheap TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device from wholesalers
    • Buy cheap TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device from wholesalers

    TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : TM203N
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 2~4 days after get payment
    • Product Details
    • Company Profile

    TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device


    TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device


    TM203N is 2in1 device that have VFL (Visual Fault Locator) function and OPM (optical power meter) function.

    It is a good device for field operation.

    The VFL function can choose power 1mW, 10mW, 20mW, 30mW, and 50mW.

    OPM function can choose:

    Type A:-70~+10Type C:-50~+26

    We accept OEM service for this product.

    Logo print on lable is free with MOQ 10pcs

    Logo laser print is free for quantity more than 100pcs


    Avantage:

    Self Calibration
    Self Auto Off
    Stable VFL Output
    Set the REF Value
    Real-time display of the power consumption
    Interchangeable connectors: FC/ SC


    Features
    - Self Calibration
    - Self Auto Off
    - High Accuracy, high ,High sensitivity, high linearity-
    - Stable VFL Output
    - Set the REF Value
    - Real-time display of the power consumption
    - Interchangeable connectors: FC/ SC
    - Rubber Out shell, increased the protective properties for field work

    Applications:
    - Fiber Optic CATV Engineering.
    - Optical fiber communication engineering.
    - Research on Optical Fiber Sensing.
    - Production and research of optical devices.
    - Other fiber engineering.


    Specifications

    Optical Power MeterTM203N
    RangeType A:-70~+10Type C:-50~+26
    Wavelength800~1700nm
    Calibrated Wavelength850/1300/1310/1490/1550/1625nm
    DetectorInGaAs
    Accuracy<±3% (-10dBm/22℃)
    Resolution0.01dBm
    Working Temperature ℃-10~+50
    Storage Temperature ℃-20~+70
    Humidity90%(+30℃)
    ConnectorFC/SC(ST LC as optional )
    Power Supply2pcs AA batteries
    Battery Life @ OPM140hours
    Battery Life @ VFL50hours
    Auto-off10minutes
    Weight180g
    Dimensions158×82×29mm
    VFLWave: 650nm
    Output Power: 1/10/20/30/50mw

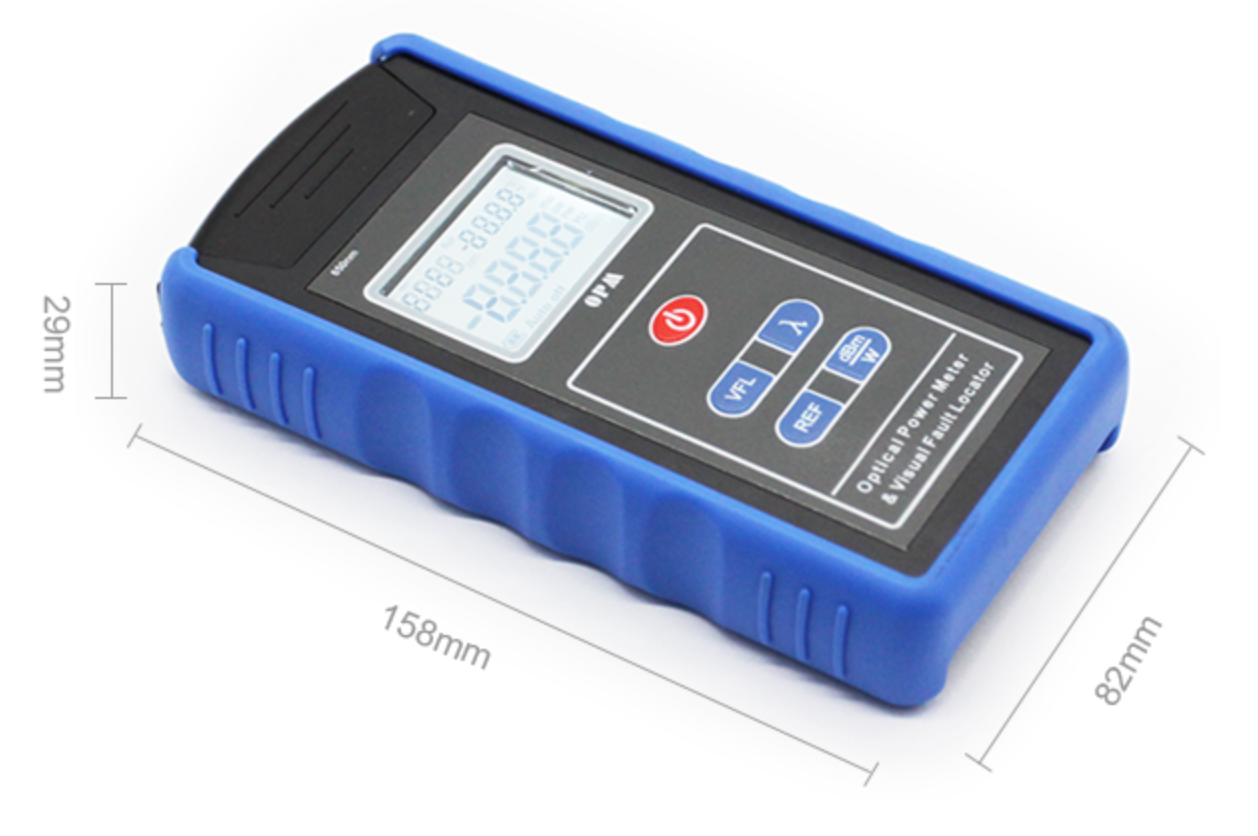

    Product size:


    Product detail:


    Packing list:


    1VFL Power Meter
    1Soft case
    1AA batteries
    1FC Connector
    1SC Connector
    1VFL FC connector
    1Manual
    1BOX


    Packing way:

    - According to export standard

    - By carton box, wooden pallet, ...


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
