KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device

    Buy cheap KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device from wholesalers

    Buy cheap KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device from wholesalers
    • Buy cheap KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device from wholesalers
    • Buy cheap KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device from wholesalers
    • Buy cheap KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device from wholesalers

    KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-200x
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 200,000 pcs/ month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    KCO-400x Fiber Optic Inspection Tool Handheld Microscope Ferrule Cheking Device

    KCO-400x Fiber Optic Inspecntion Tool Handheld Microscope Ferrule Cheking Tool
    Product Description

    This Mini Handle Fiber Microscopes are used for inspecting fiber terminations in the field.
    With their good optical performance and integrated laser safety filters, they provide the most critical view of fiber end faces.
    This renders scratches highly visible and is the clear choice for field termination in sensitive installations.
    Power Source: AAA batteries
    Light Source: white LED
    Rated for 100,000 hours
    Equipped with LED illumination and a Laser filter installed for eye protection
    Provides clear bright images and smooth focus control
    Rubber eyecup for comfortable use. Laser safety filter protects eyesight
    200x, 400x Optical Magnification
    2.5mm and 1.25mm adaptor including


    Specification

    Model listKCO-200/400X
    Optical Magnification200x, 400x
    Size190mm/7.48”L X 45mm/1.77”D
    Weight0.45 Kg
    ColorBlack.
    Power Source3 x 1.5v button batteries (If export limited, we will take out batteries)
    Safety FilterBuilt in IR filter
    Light SourceWhite LED, rated for 100,000 hours
    IlluminationProvide dual-illumination, both coaxial and oblique
    Adapter Interfaceuser interchangeable adapters
    ControlsMomentary on/off switch for light source, Fine Focus control wheel
    AdapterUniversal Adapter (2.5mm) Compatible with ST, FC, SC, 2.5mm DIN
    Switch

    1. Automatic on/off switch for light source
    2. Two minutes delayed on/off switch

    PACKAGE20PCS/CARTON

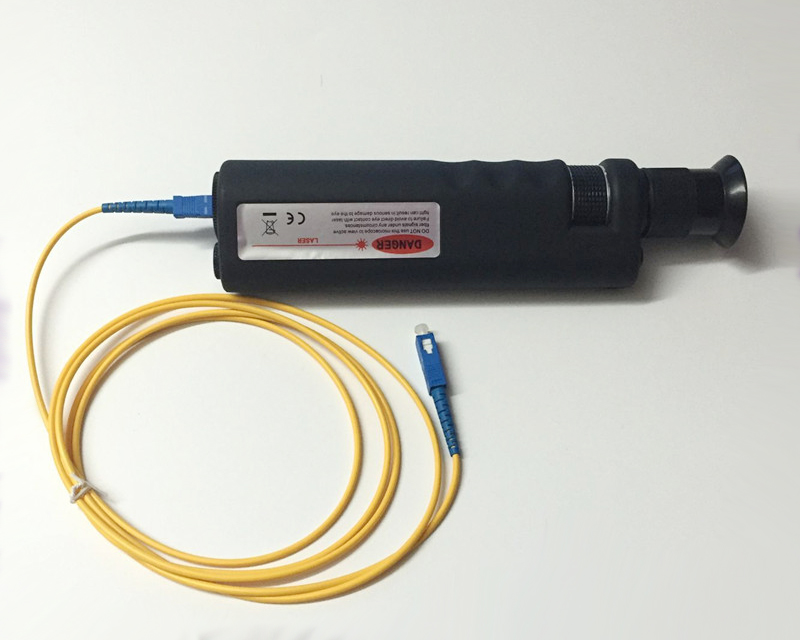

    Product Photo:






    Laser Safety Attention
    1. Do not use any our Fiber Inspection Microscopes to view active fiber signals under any circumstances. Active fiber signals contain high-powered laser light, it can do much harm to the eyes. so we must avoid contracting with the laser light using direct eyes. The failure to avoid direct eyes contact with laser light can result in serious damage to the eye.
    2. Especially, our Fiber Inspection Microscopes may magnify the laser light in active fiber signals; direct eye contact with magnified laser light should be avoided. Laser safety filters, as used in our Fiber Inspection Microscopes, are no substitute for practicing good laser safety.
    3. If you are unfamiliar with laser safety practices, please ask the information from the distributors or seek out professional training. There are many capable trainers working in the fiber optic field who can help.


    Delivery time:

    within 3-5 days after payment

    Packaging & Shipping

    1 x 200x CL series Fiber Scope
    1 x 1.25mm Adaptor (EXTRA) (inside the small pocket of the bag)
    1 x 2.5mm Adaptor (Installed)
    1 x Soft Carrying Case
    1 x English Operation Manual


    OEM/ ODM service:
    If you want to print your own brand LOGO on the pen lable or package, it is no any problem. Our OEM service is always ready for you. Please call us or send e-mail to us with your detail inquiry to get more informations.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
