    AI8 Fiber Optic Splicing Machine Core Alignment FTTH Drop Cable Fusion Machine KCO-AI7

    Ask Lasest Price
    Brand Name : KCO
    Model Number : KCO-AI7
    Certification : ISO9001, RoHS, UL
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000 pcs/month
    Delivery Time : 2~3 working days
    • Product Details
    • Company Profile

    AI8 Fiber Optic Splicing Machine Core Alignment FTTH Drop Cable Fusion Machine KCO-AI7

    KCO-AI7 Fiber Optic Splicer Core Alignment FTTH Drop Cable Fusion Machine OEM


    KCO-AI-7/8 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.
    - The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50%


    Product photos

    Automatic FTTH Optical Fiber Fusion Splicer ai7 optical fiber fusion splicer

    Automatic FTTH Optical Fiber Fusion Splicer ai7 optical fiber fusion splicer

    Automatic FTTH Optical Fiber Fusion Splicer ai7 optical fiber fusion splicer


    Applicable Fiber
    SM (Dan Mo), MM (multimode), NZDS (non-zero dispersion shift, that is, G.655 fiber) and EDF (bait fiber), and other optical fibers
    Actual average loss
    0.02dB (SM), 0.01dB (MM), 0.04dB (NZDS)
    Callback loss
    ≥60dB
    Tension test
    2.0N (200gf) (standard)
    Heat shrinkable sleeve
    20, 40 or 60mm and a series of miniature protective tubes
    Welding procedure
    80 sets of welding procedures can be defined
    Language display
    China, Britain, Korea, France, Russia, Italy, Germany, Spain, Portugal and many other languages
    Operating environment
    Which -25 ~ C (temperature), 0 ~ 95%RH (no dew), 0 ~ 5000m (elevation)
    Storage environment
    -40 to +80 DEG C (temperature), 0 ~ 95%RH (without condensation)
    Power Supply
    AC adapter: AC input voltage 85 ~ 260V
    Built in battery: voltage is 12V, 8Ah, full of electricity after welding / heating, at least 180 cores
    Size / weight
    140 (D) * 150 (W) * 160 (H) mm/2.8kg

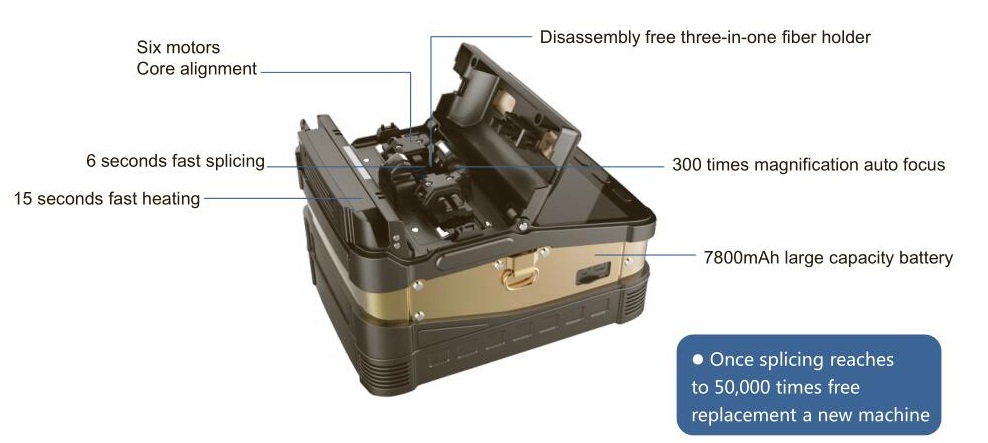

    Masterpiece High-end Luxury:
    - Six motors
    - Core alignment
    - 6 seconds fast splicing
    - 15 seconds fast heating
    - Disassembly free three-in-one fiber holder
    - 7800mAh large capacity battery
    - 300 times magnification auto focus
    - Once splicing reaches to 50,000 times free replacement a new machine

    Metal Body Aethetic Details:
    - Automatic heating
    - LED light
    - Convenient for night operation
    - Battery press & remove
    - Protective case
    - 5 inch display
    - Simultaneously align fibers
    - Loss display
    - 18 patent results
    - Lifetime free warranty


    Advantages:

    Compared to ordinary splicing machines.
    - Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen
    brightness is adjustable and it is convenient for outdoor sunshine environment operation.
    - The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology
    and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.


    Automatic FTTH Optical Fiber Fusion Splicer ai7 optical fiber fusion splicer


    Packing:

    - Carton Box

    - Wooden Pallet

    - Customized


    Shipping:

    - By international express such as: TNT, DHL, UPS, etc

    - By International air such as CA, AA, EA, etc

    - By sea
