    Plastic Fiber Optic Cable Identifier With VFL 230*43*48 900m Cable


    Plastic Optical Fiber Identifier , Fiber Optic Cable Identifier KCO - OFI400 With VFL


    Overview:

    • KCO-OFI400 is a new model fiber optic identifier.

    • -It adopts the micro-bend technology to do the on-line test without interrupting current service and no damage to the fiber. It can be used in both SM and MM networks.

    • As a new product, it remains the basic function of fiber optic identifier, but add a new VFL function for short distance fault location.

    • Different to the mental case fiber optic identifier, this fiber identifier only has 1 adapter, which can accommodate all type of adapter diameter <=3mm.

    • It avoids the interchange of connectors and make it more convenient and fast in operation.

    Features:

    • Plastic material and light weight

    • Added VFL function

    • Only 1 adapter

    • In-line test without interrupting the current service

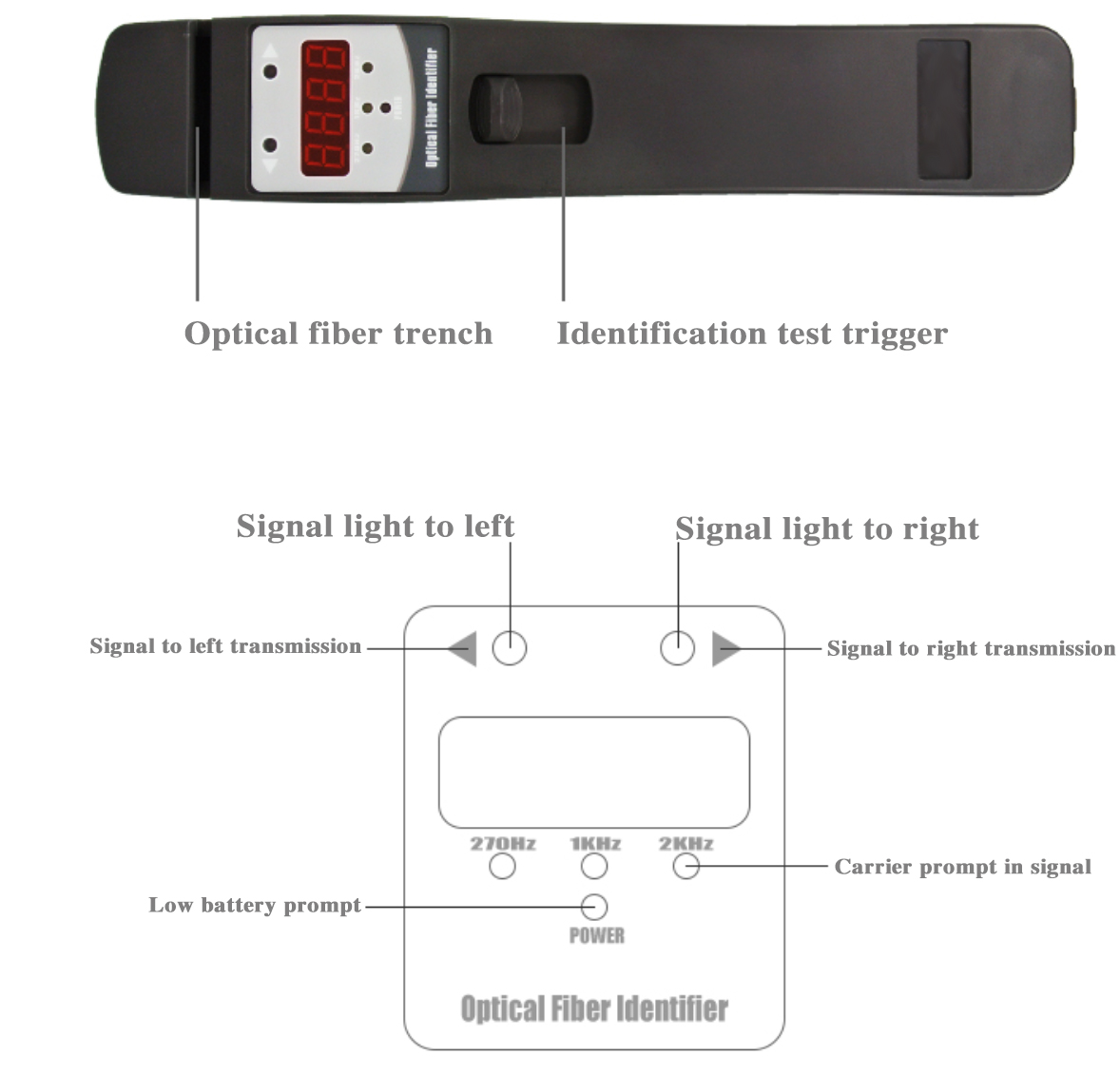

    • Signal direction and modulation display

    • Relative core power display

    • Low power indication

    • 60 hours working time

    Specifications:

    ModelKCO-OFI400
    Wavelength (nm)800~1700
    DetectorInGaAs
    Connector (mm)<3
    Modulation (Hz)CW/270/1K/2K
    DirectionLeft or Right
    Power Test Range (dBm, CW/0.9mm )-35~10
    Modulation Identification (Hz)270/1K/2K
    Insertion Loss (dB)<1
    VFL Wavelength (nm)650
    VFL Output Power (mw)10
    Battery (V)2pcs AA
    Working Time (h)60
    Operating Temperature (℃)0~+50
    Storage Temperature (℃)-10~+70

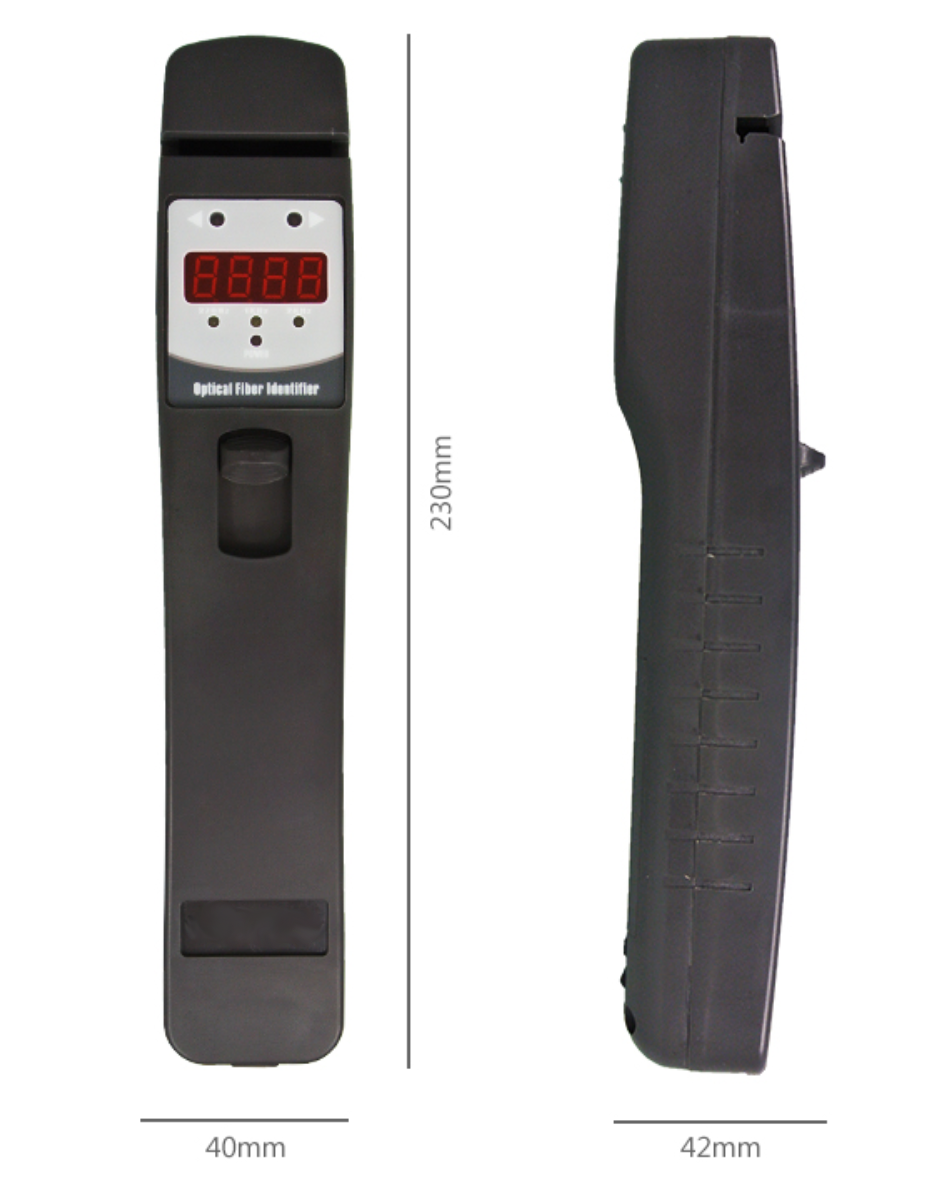

    Dimension (mm)230*43*48
    Weight (g)200

    Standard Accessories:

    Fiber optic identifier KCO-OFI4001 pc
    Battery2 pc
    Manual1 pc
    Carrying bag1 pc

    Product photos:


    Packing: Carton box, wooden pallet


    Shipping:

    - By international express such as: TNT, DHL, UPS, etc

    - By International air such as CA, AA, EA, etc

    - By sea
