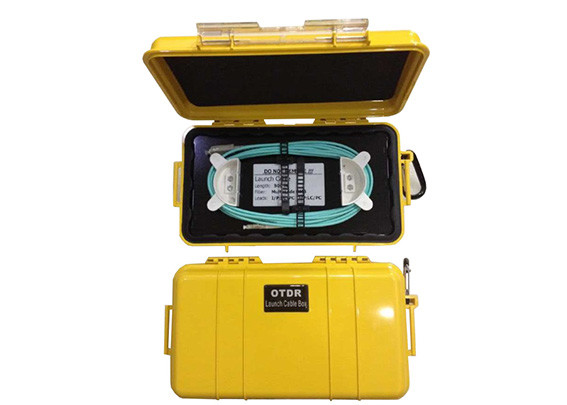

Fiber Optical OTDR Launch Cable Box Distance 2km With SC Connector

Descriptions:
- Designed to aid in the testing of fiber optic cable when using an OTDR.

- The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.

- Available in many different configurations and fiber lengths

Features:
• The OTDR test extension line, OTDR, OTDR products
• Mainly used to compensate for the OTDR test blind area, central fiber
• Without any fusion joint, small volume, light weight Easy to carry.
• Single-mode, multimode ( 62.5125 )
• Length 500M, 1KM, 2KM... 5KM ( custom )
• Loss less than or equal to 0.5dBmkm
• With excellent sealing performance, waterproof and dustproof explosion-proof
• Imported yellow shell
• Single-mode or multimode optical fiber
• Length 1-3 km selected at random
• Fiber optic connectors available: FC, LC, SC, ST/PC or APC

Functions:
- Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature .

Informations:

- Connector type: SC, LC, ST, FC, E2000. MPO etc
- Length: from 100m to 4KM
- Water resistant, crushproof and dust proof
- Material: SR Polypropylene
- Color: Black/Yellow
- Operating temperature -40°C to +80°C
- Type of fiber: corning SMF-28
- Lead length: 1m-5m, outside diameter 2.0mm or 3.0mm
- G652 type fiber.
- Back Reflection(RL) < -55 DB
- GR-326 Standard

(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm

Specifications:

Product pictures:

Ordering Information:
LB-[A]-[B]-[C]-[D]

For Example:

Single mode fiber, input FC/UPC; output LC/APC, 1000 meters long LB – FC – LCA – S – 1.0
Note: Other special adaptors or connectors are available upon request.

Package:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
