    FTTH CATV ST / APC Optical Cable Accessories Twist Lock 2.5 MM Ferrule


    FTTH CATV ST Type Fiber Optic Connector Twist Lock With 2.5 MM Ferrule


    Fiber Optic Connectors Descriptions:


    The FTTH CATV ST connector utilizes a bayonet twist-lock connection with 2.5mm ferrule. Available in singlemode and multimode, the ST connector features reliable and durable field installation.The design of the ST connector enables installers to crimp the back of the body directly onto the cable jacket and Kevlar


    Fiber Optic Connectors Features:


    - 900 micron, 2mm, 3mm cable applications.

    - Simplex, duplex and higher core densities.

    - High quality ceramic components and Material.
    - End-face geometry requirement complies to Telcordia GR-326-CORE.
    - 100% tested on optical performance (Insertion Loss & Return Loss).


    Fiber Optic Connectors Applications:

    - FTTH FTTX.

    - CATV system.

    - Telecommunication Network.

    - Local Area Network(LAN).

    - Testing Equipment.

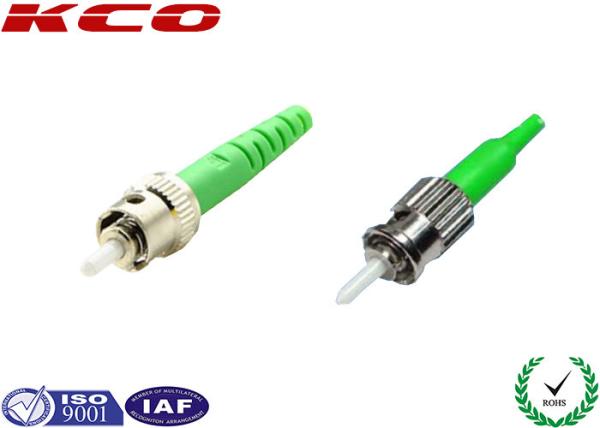

    Fiber Optic Connectors Product Pictures:



    Details about Fiber Optic Connectors:

    Connector FerruleCeramic
    Alignment SleeveCeramic
    Connector BodyUL 94V-0 rated Thermoplastic to meet standard; amiability ratings
    Crimp Insert/Crimp TubeNickel-Plated Brass/Thermoplastic Elastomer Polymer
    Dust CapNylon or PVC
    Strain Relief BootFlame retardant (UL-Rated 94-V0) polymer
    Connector StyleSC, FC, ST, LC, MTRJ, etc

    Fiber Optic Connectors Specifications:


    Item
    Single modeMultimode
    PCUPCAPC62.5/12550/12550/125 10G
    Insert Loss/connector
    (single Fiber)
    0.3dB Max. (0.2dB typ.)0.3dB Max. (0.2dB typ.)
    Return Loss≥45 dB≥50 dB≥60 dBN.A
    Insert Loss/MTRJ Connector0.5dB Max. (0.45dB typ.)0.5dB Max. (0.45dB typ.)
    Pull Strength≥98N≥98N

    Ordering Information:
    1, Connector type : SC, LC, FC, ST, MTRJ, etc
    2, Polish: UPC, PC, APC
    3, Mode: Single mode, Multimode
    4, Fiber Count: Simplex or Duplex
    5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
