    MPO MTP SM MM Optical Fiber Adapter OS2 OM1 OM2 OM3 OM4 OM5 Adaptor High Speed

    Ask Lasest Price
    Brand Name : kCO, Kocent Optec Limited
    Model Number : MPO-adt
    Certification : ISO9001, RoHS
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 3~5 working days
    • Product Details
    • Company Profile

    MPO MTP SM MM Optical Fiber Adapter OS2 OM1 OM2 OM3 OM4 OM5 Adaptor High Speed


    Plastic Fibre MPO Adaptor / MPO Ferrule MPO Adapter For 40G Network Upgrade


    MPO plastic fiber optic adapter

    - MPO fiber optic adapter is also called MPO fiber optical adapter, optic fiber adapter, optical fiber adapter, optic adapter, fiber adapter, optical adapter.

    - MPO adapter is adapter is a mechanical device designed to align fiber-optic connectors.

    - It contains the interconnect sleeve, that holds the two ferrules together.

    - The MPO adapter comes standard in black for plastic or metal housing for die cast.

    - We can supply MPO adapter for Single mode UPC and APC, and Multimode PC.


    Features:

    *Simplex and duplex available;
    *Panel clip for easy installation;
    *Increase panel density and quick plug in installation;
    *Available in several standard colors;
    *Meet bellcore GR-326 standard;
    *Insertion loss: SM<0.2dB, MM<0.2dB;
    *Durability (500 Mating): 0.2dB Max Increase;
    *Operating temperature: -40℃~85℃;
    *Storage temperature: -40℃~85℃.


    Applications:

    - Widely used in the ODF, Telecommunication networks

    - Optical communication system

    - Optical instruments measuring appliance

    - Optical fiber sensor

    - CATV

    - Active device termination

    - Telecommunication networks

    - Metro

    - Local Area Networks (LANs)

    - Data processing networks

    - Test equipment

    - Premise installations

    - Gigabit Ethernet

    - Video

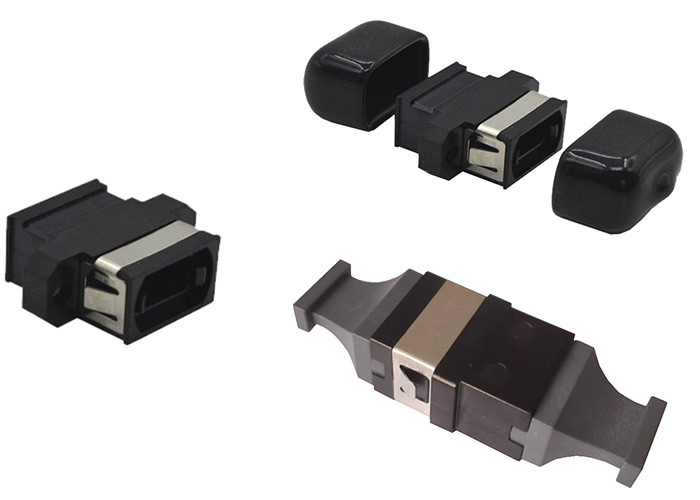

    Product pictures:

    MPO MTP SM MM Optical Fiber Adapter OS2 OM1 OM2 OM3 OM4 OM5 Adaptor High Speed


    Specifications


    HousingUL-Rated Plastic or Die Cast
    Clip & ShutterStainless Steel
    Durability< 0.3dB change, 500 mating cycles
    Operating Temperature-40℃~+70℃
    Storage Temperature-40℃~+85℃

    Environment and Mechanical


    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidity cycling40ºC, 95%,96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC≤0.2dB

    Availability
    * Simplex/Duplex available;
    * Metal body,plastic body available;
    * Hybrid adapter available;
    * Various boot color available;
    * OEM/ODM available.


    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
