Single Mode MTP MPO Fiber Breakout Cable 8 Cores LC 10G OM3 Patch Cord

About MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord:

- MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end.

- The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins.

- All Kocentoptec's MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard.

- We can do Standard type and Elite type both.

- For the jacket cable we can do 3.0mm round cable also can be flat jacketed ribbon cable or bare ribbon MTP cables.

- We can offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, 9/125, 50/125, 62.5/125, SM, MM, Simplex, Duplex, 12core MTP/MPO patch cables, 24core MTP/MPO patch cables, 48core MTP/MPO patch cables all is available.

- MPO/MTP OM3 3.0mm fiber optic breakout cables

- MPO/MTP-LC fiber optic harness patch cables

- MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

- The Data Center application with high dense degree environment

- The optical fiber to the building

- The internal connector application in fiber equipment.

We can provide MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord for single mode, multimode, simplex, duplex or multi-fibers. Also OEM Service is available, such as cable length, color, cover materials, package all can be customized. All our MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord meet RoHS Compliant, and 100% test Insert loss before shipment.

MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord cable Constructions:

MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord Features:

- Single mode and multi mode (flat) APC(catercorner 8 degree angled)available

- High fiber density (maximum 24 fibers for Multimode)

- Fiber in single connector: 4, 8, 12 24

- Insert/Pull latching connector

- High reflection loss with APC

- Comply with Telcordia GR-1435-CORE specification and Rosh standard

MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord Applications:

- FTTH , CATV, LAN, MAN, WAN, Test & Measurement

- Video transmission, Data transmission

- Active Device Termination

- Premise Installations

- Telecommunication and Data processing Networks

- Industrial, medical & military

- Systems Integration for Long Haul, Metro and Access Network

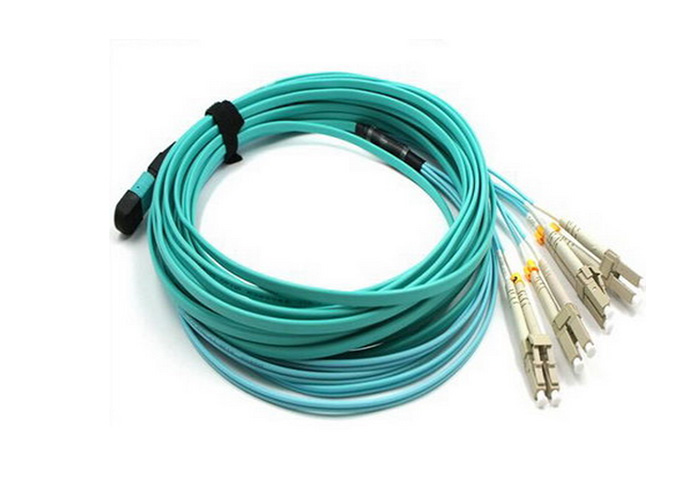

MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord cable Products Pictures:

MTP/MPO Connector Specifications:

MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord Ordering Informations:

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

① ② ③ ④ ⑤ ⑥

Notices:

①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

②Ferrule End-face: PC, UPC, APC

③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

④Fiber Quantity: 4 core, 8 core, 12 core, 24 core

⑤Cable Length: 1, 2, 3 meter or customized

⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Our MTP/MPO-8LC duplex 10G OM3 fiber optic patch cord packing ways:

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
