Light Weight MTP MPO Fiber Breakout Cable 192 Cores LC Strands ,
Fan Out Cable
Descriptions:
- MPO/MTP Fiber Optic Patch Panel is fit with 19'' standard of
fiber optic cabinet.
- It use in data center or builing data room.
- This 2U patch panel maximum can install 8 pcs of MPO 24 cores
modular.
- Kocent Optec Limited also can supply 1U, 2U, 3U and 4U of MPO MTP
Patch Panel.
- OEM and ODM service is opening for all of old and new customer.
- Typical MPO MTP fiber optic rack mount patch panel is with 2U 19’ standard size use for MTP MPO fiber breackout cable cassettle,
inside the patch panel, it can be splice trays with 1xN MPO fiber
cable assemblies, or it can use our MPO fiber optic cassette to
integrate into the patch panel, the 2U MPO fiber patch panel can be
with max 192 cores output optical strand, the output connectors can
be SC/FC/ST/LC.
Quick informations:
- Connector 1: MPO, MTP truck cable
- Connector 2: LC, FC, ST, SC or customized 4 to 24 strands cable
- Cable length: 0.5m, 1.0m, 1.5m or customized
- Patch panel size: 480x245x2U(mm)
- Capacity: 24 cores, 48 cores, 96 cores, 192 cores
- Maximum upload with 8 pcs of cassettes
- Adapter type: LC, SC, ST, FC or customized
Features:
- Integrate fiber patch panel with easy plug and play fiber
cassette module for optimizing cabling management efficiency
- Light weight, easy to install
- Easy for installation and operation .
- Available for the installation of FC/SC/ST/LC adaptor.
- Mount to standard EIA 19'' rack rails
- Provides a complete system solution for connectivity
- Provide higher patch field density in fewer rack units saving
valuable space
- Assures flexibility and ease of network deployment and moves,
adds, and changes

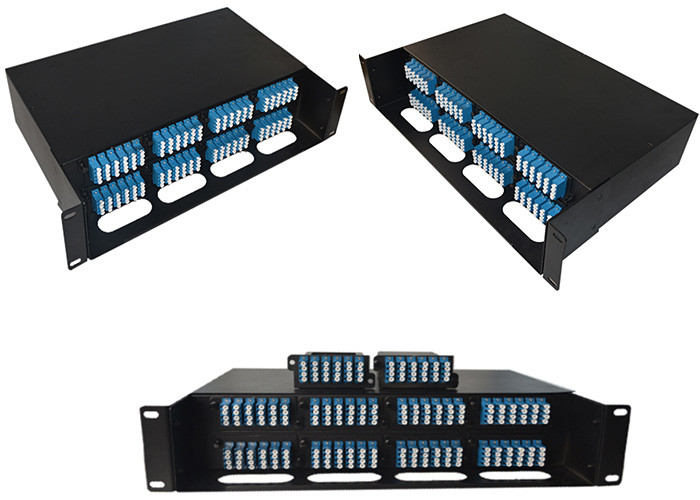

Product picutures:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
