MPO MTP APC Fiber Optic Patch Jumper Cord SM MM OM1 OM2 OM3 OM4 OM5
Product detail:
- Connector side A: MPO APC, MPO, MTP
- Connector side B: MPO, MTP, FC, LC, ST, SC, E2000, MTRJ, DIN, D4,
MU...
- Cable fiber count: 8 cores, 12 cores, 24 cores, ...
- Cable diameter: 3.0mm, ...
- Cable type: round, flat
- Cable Length: customized
- Fan-out kits: available
- Break-out kits: available
- Cable sheath: PVC, LSZH, TPU, ...
- Cable sheath color:
Single mode: yellow
OM1, OM2: Orange
OM3: Aqua
OM4: violet, pink
OM5: Lime
Armored cable: Blue, Gray, Yellow, Aqua, customized
Applications:
- FTTX (FTTH, FTTO, FTTB, FTTA, ...)
- Apply for CATV, LAN,
- Telecom network,
- Test equipment
- Telecommunication networks
- Active device termination
- Metro, Tram
- Local Area Networks (LANs)
- Test equipment
- Premise installations
Features:
- Various connector types available
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Descriptions:
- The single-mode and multimode MPO products are multi fiber
connectors used in high-density backplane and Printed Circuit
Board(PCB) applications in data and telecommunications system. The
MPO connector offers up to 12 times the density of standard
connectors, providing significant space and cost savings.
- MPO patch cord utilize precision molded MT ferrules, with metal
guide pins and precise housing dimensions to ensure fiber alignment
when mating. The MPO can be mass terminated in combination of
4,8,12 or 24 fibers.
- MTP/MPO multi-fiber trunk cables are usually in mini-round cables
and ribbon cables, with fanout kits broken down into 2~24 fiber
0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc.
- Cable total length, fanout length, connector type are customized.
Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
Product Construction:
A: MPO connectot
L: Total length
L1: Fanout length
B: Connector ( FC, LC, ST, SC, ...)

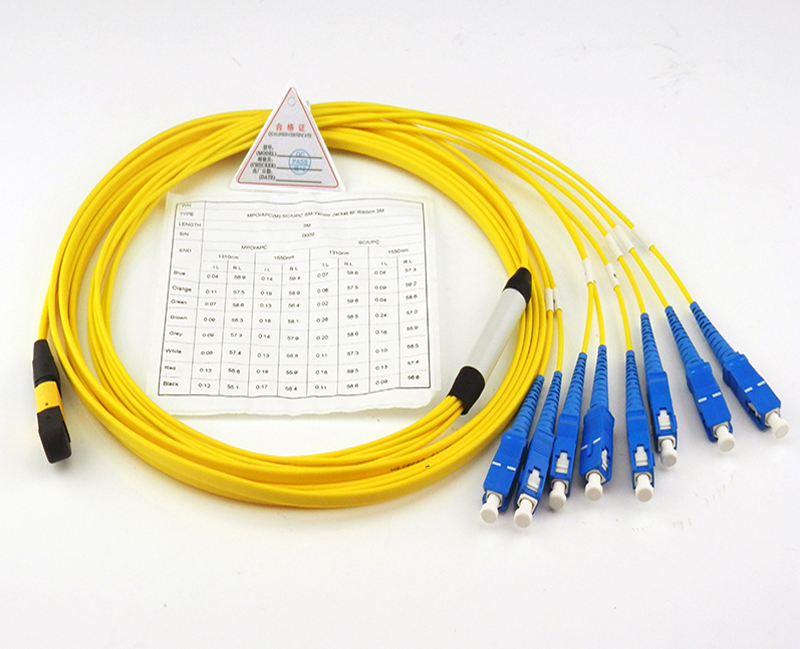

Products Photo:
Ordering Informations:
MPO/PC–MPO/PC-SM-12CORE–2M-LSZH
① ② ③ ④ ⑤ ⑥
Notices:
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
