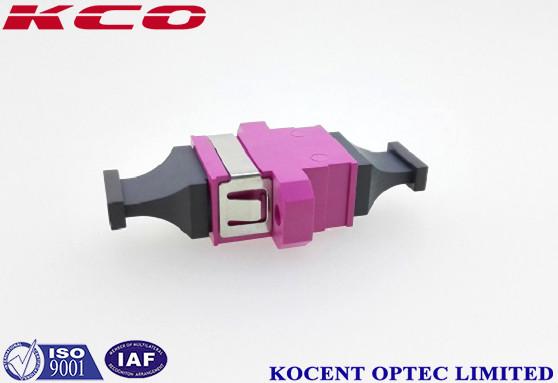

    Female OM4 MPO MTP Fiber Optic Adapters With Violet Pink Color Full Flange MPO Adaptor

    Ask Lasest Price
    Brand Name : kCO, Kocent Optec Limited
    Model Number : MPO-adt
    Certification : ISO9001, RoHS
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 3~5 working days
    • Product Details
    • Company Profile

    Female OM4 MPO MTP Fiber Optic Adapters With Violet Pink Color Full Flange MPO Adaptor


    Female OM4 Adaptor MPO MTP Optic Fiber Adapter Violet Pink Color Plastic Full Flange


    Overview:

    - MPO/MTP adaptor provides alignment for a male and female MPO/MTP connector.

    - MPO/MTP fiber optical adapter comply with industry standard TIA - 568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style).

    - The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.

    - Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

    - Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs.

    - In the case of the MPO/MTP system the alignment is carried out by two small pins fitted to one of the connectors and the adapter is designed to support and lock the connectors.

    - When joining MPO/MTP connectors, one connector must always be male with pins and one must be female without pins.

    - The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

    - Main raw material is environmental grade PVC.

    - We could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.


    Spec Performance:

    - IL: <0.2dB,

    - Withdrawal force (g/f): 200~600

    - Durability: <0.10 dB typical change, 500 matings

    - Temperature range: -40°C to +80°C


    Application:

    - Patch panels, ODF and ODP, FDB, terminal box, ....

    - Optical networks demarcation and monitoring point.

    - Telecommunication

    - LAN & WAN

    - Network

    - Broadband

    - FTTx

    Size:

    Product advantage:

    • Apply for CATV, LAN, Telecom network, test equipment
    • MTP MPO Singlemode Multifiber Adapte
    • Multi Mode or Single Mode, Simplex or Duplex optional
    • PC / APC available
    • Square, round, single / coupled, quad 2 cores or 4 cores shape optional
    • Ceramic sleeve, copper, zinc alloy and plastic housing
    • IL≤0.2dB, RL≥50dB (pc); RL≥60dB (apc)
    • Operating temp.: -40°C~+85°C
    • Standard plugging force: 2~6N
    • Durability > 1000 times

    Product Photo:






    Environment and Mechanical:

    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidity cycling40ºC, 95%,96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC≤0.2dB

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
