LTE ODVA LC Plug 2 Fibers Single Mode G657A1 LSZH 4.8mm Armored
Fiber Optic Patch Cord
For Base Station
Application:
- ODVA Fiber Optic Patch cord is are commonplace with harsh
environments where chemicals, corrosive gases and liquids
- Inside and outside industrial plant and equipment that interface
with industrial Ethernet networks
- Remote interface applications such as towers and antennae as well
as FTTX in PON and at the home applications
- Mobile routers and internet hardware
KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch
cord.
Special in outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC
patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI
patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4
patch cord.
We supply all kinds of field operations fiber optic patch cord with
different types of water-proof connector, use for Telecom 3G, 4G,
LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we
supply Telecom standard of goods to our customer.
Description:
- ODVA Connectors are designed to exceed the requirements of ODVA.
- The connectors meet IP68 environmental sealing ratings and are
the ideal choice for a low cost.
- It is easy to use solution in Industrial, Fiber to the Antenna
(FTTa), or any other harsh environmental applications.
- This outdoor waterproof connector attaches to adapter on panel of
RRH.
- The common LC, SC, MPO connector inside allows easier testing and
cleaning.
- There are two types of connector plugs available: threaded and
easy-connect bayonet.

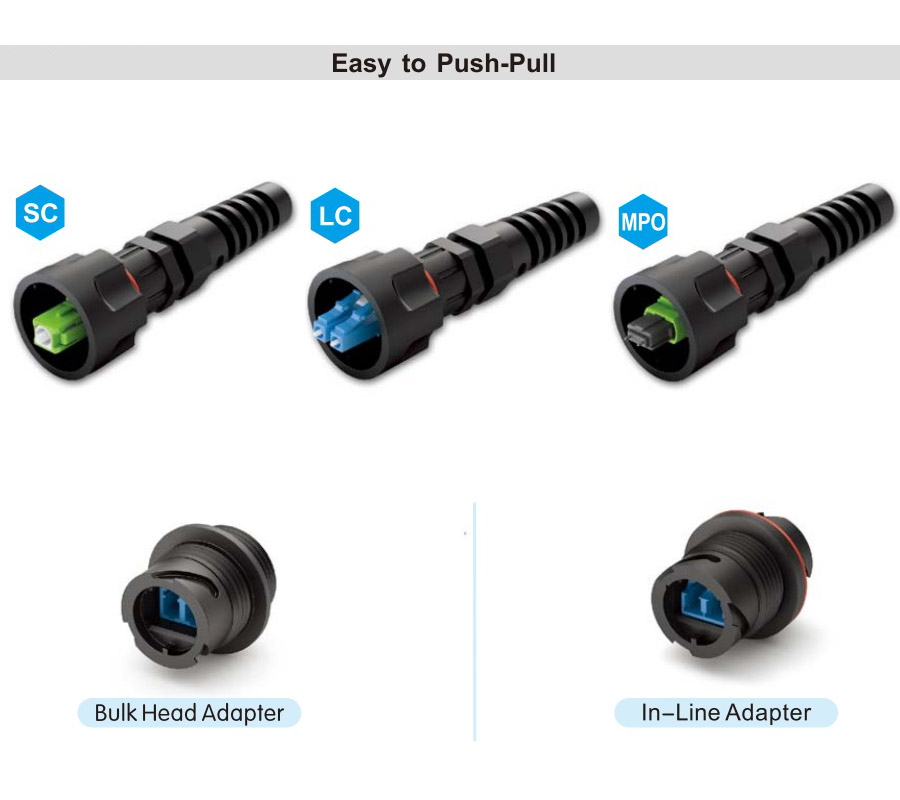

- We are offering includes SC/Simplex (1-fiber), LC/Duplex (2-fiber) and MPO
& MPO/APC male or female (1 to 12-fibers).
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side A: ODVA connector |
| Side B: ODVA connector, DLC(duplex LC), SC, ST, FC, MPO/MTP,... |
| Fiber count | 2 cores, 4 cores and more |
| Fiber Type | SM (G.652D/G.657A) |
| MM (OM1/OM2/OM3) |
| Jacket Materials | LSZH/ OFNR/ PVC/ PE |
| Cable diameter | 4.8mm, 7.0mm |
| Testing Wavelengths | SM: 1310±30/1550±30nm |
| MM: 850±30/1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 | ≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB (PC/UPC) |
| ≥55dB (APC) |
| ≥35dB (UPC) |
| Exchange ability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord |
| Operating Temperature | -14℃~+ 85℃ |
| Storage Temperature | -40℃~+85℃ |
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable,
package bag, label or any where. It is no any problem. Our OEM and
ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
