SC/APC Fast Connector 0.9mm Bare Fiber Quick Assembly Connector for
FTTH GPON EPON
About fiber optic fast connectors:
- SC/APC fiber optic fast connector also call SC/APC fiber optic
quick connector, fiber optical field assembly connector, optical
fiber fast connector, optic fibre quick connector, fibre quick
connector, optical quick connector.
- Field assembly fast connector (quick connector) can perfect
fulfill the custom cable length, it can be installed in field, no
epoxy, no power deed, it can be installed in 2 minutes.
- There are available in SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC,
FC/APC, ST/UPC.
- It use for 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable and
2x3.0mm fiber optic FTTH cable.
Description
1. Twin end-face of pre embedded fiber is polised in the factory..
2. Fiber optics is aligned in V-groove through the ceramic ferrule.
3. Side cover design provide complete preservation of the matching
liquid.
4. Ceramic ferrule with pre-embedded fiber is polished to APC.
5. Length of the FTTH cable is controllable
6. Simple tooling, easy operation, portable style and reusable
design.
7.Connector size: 49.5*7*6mm or produced as per client's request.
Fast connectors Specifications:
| Applicable for | Drop cable. Indoor cable(0.9/2.0/3.0mm) |
| Optical fiber diameter | 125μm |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB |
| Return loss | ≥50dB |
| Fastening strength of naked fiber | >5N |
| Fastening strength of naked fiber holder | >10N |
| Tensile strength | >50N |
| Using temperature | -40°C~+75°C |
| On-line tensile strength (20N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m, once per direction, totally 3
times) | IL ≤ 0.5dB RL ≤ 5dB |
Product Photo:

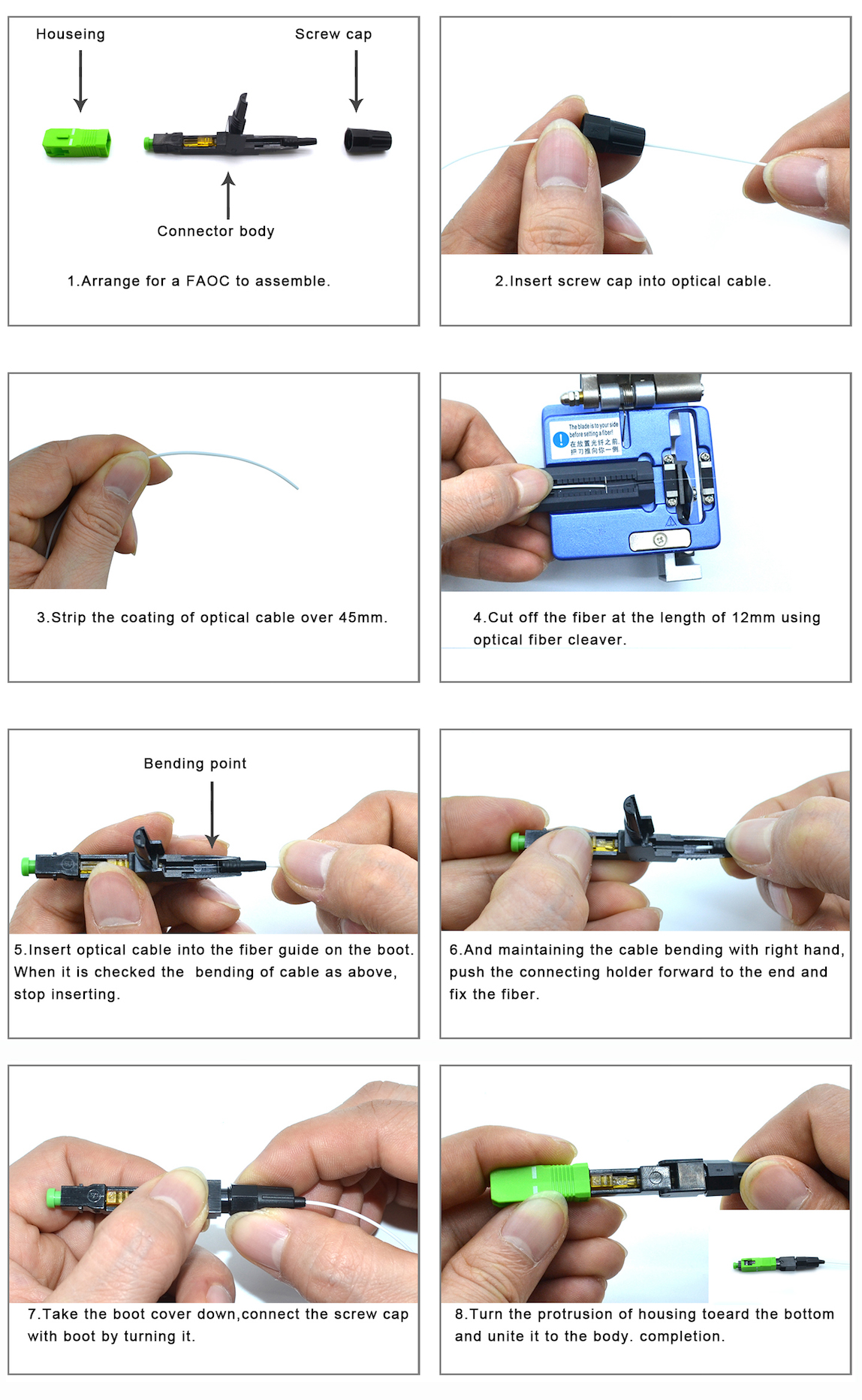

Fast connector usege:
Relevant Solutions
- Easy operating,
- The connector can be directly used in ONU, also with fasten
strength more than 5 kg, it is widely used in FTTH project of
network revolution. It also reduce the use of sockets and adapters,
save cost of project.
- With 86 standard socket and adapter, the connector makes
connection between drop cable and patch cord.
- The 86 standard socket provides complete protection with its
unique design.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
