    Single Mode Monomode Fiber Optic Adapter Lc Upc Shutter Full Flange Blue Color

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : LC/UPC-DX-Shutter-NF
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    Single Mode Monomode Fiber Optic Adapter Lc Upc Shutter Full Flange Blue Color


    Full Flange LC/UPC Shutter Adaptor Optic Fiber Adapter Single Mode MonoMode Blue Colour


    Description:

    - Fibre optic cable adapters are used to provide cable to cable connection. Kocent Optec Limited has a wide range of high-quality fibre adapters which are equipped with precision alignment sleeves and improved reconnect ability.

    - Optical fiber adapter is removable (activities) between optical fiber and optical fiber connection device, it is to put the fiber of two surface precision docking, so that the optical output of light energy to maximize the coupling to the receiving optical fiber, and optical link due to the intervention and to minimize the effects on the system, it is the basic requirement of optical fiber adapter

    - LC/UPC auto shutter fiber optic adapters are specially designed to suit FTTH applications.

    - The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser.

    - Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.

    - All products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.


    Quick Information:
    - Name: LC/UPC Duplex Shutter Adapter full/ without flange
    - Fiber type: Single mode (SM) 9/125
    - Signal way: duplex (2 ways)
    - Material: Plastic
    - IL: less than 0.2dB
    - RL: More than 50dB
    - P/N: LC/UPC-DX-Shutter-NF

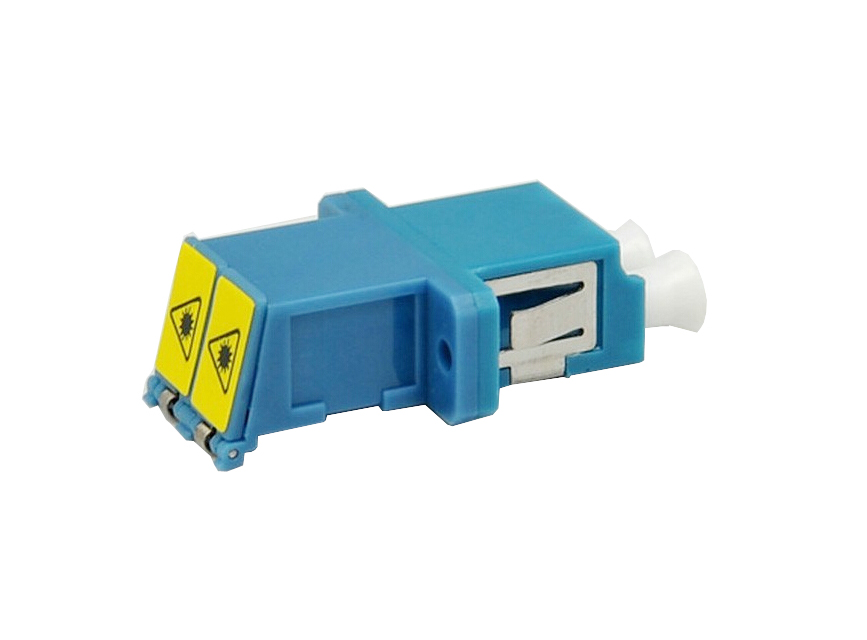

    Product pictures:




    Specification:

    ParameterUnitDescription
    Insertion lossdB≤ 0.2
    Return lossdBPC≥45 UPC≥50 APC≥60
    Mechanical endurance(500T)dB≤ 0.2
    ExchangeabilitydB≤ 0.2
    Operating Temperature°C-40~+75
    Storage Temperature°C-40~+85
    Relative Humidity%95
    ParameterUnitOptical Attenuator
    FixedVariable
    Operation wavelengthnm1310/15501200~1600
    Attenuation valuedB+/- 0.5(≤10 dB)0~3
    +/-1.0 >10 dB)
    Max. Optic input powermW500500
    Max. PDLdB≤0.1≤0.1
    Return lossdBUPC>50
    APC<60

    Optical Performance
    ItemPremium GradeStandard Grade
    Insertion Loss≤0.1dB≤0.2dB
    Durability1000 times1000 times

    Environmental and Mechanism
    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling-40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC≤0.2dB

    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.




    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
