    SC APC UPC Shutter Fiber Optic Adapters , FTTH GEPON Fiber Optic Connectors

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : SC/APC
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    SC APC UPC Shutter Fiber Optic Adapters , FTTH GEPON Fiber Optic Connectors


    SC APC and UPC Shutter Fiber Optic Adapter For FTTH GEPON Telecom Grade 60dB RL


    Quick Information:

    - Color: Green

    - IL: 0.2dB

    - RL: 60dB

    - Cap type: Shutter cap type in one side

    - P/N: Adapter-SCA-Shutter-02

    - Name: Fiber Optic Adapter

    - Connect type: SC/APC


    Applications:

    - Testing instruments

    - Connection between devices

    - Connection between fiber optical patch cords

    - CATV, MANS, WANS

    - FTTH, FTTX


    Advantage of the fiber optic adapters:

    - Low Insertion Loss means there is little reduction in light intensity along the transmission router.

    - High Reliability

    - Also compliant with the IEC and ROSH standards

    - Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

    - We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
    - These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.


    Descriptions:

    - Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

    - The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.

    - LC fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.

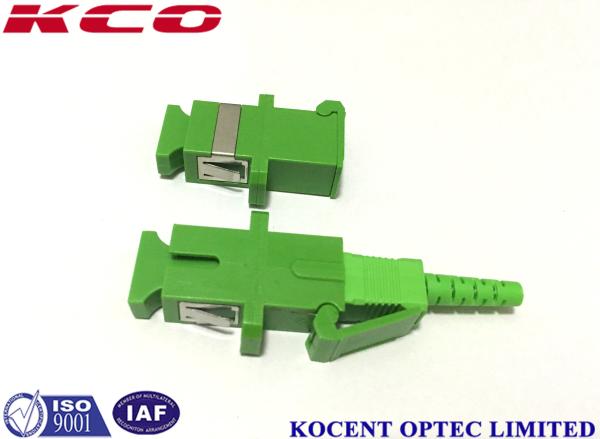

    Product pictures:



    Specification of fiber optic adapters:

    ParameterSpecifications
    Mating Connector TypeSC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
    Fiber Type of ConnectorSingle ModeMultimode
    Adapter ColorBlue, green, metallicBeige, Metallic
    Testing Wavelength1310nm,1550nm850nm,1300nm
    Insert LossTypical≤0.15dB, max≤0.2dBTypical≤0.15dB, max≤0.2dB
    Repeatability≤0.10dB
    Exchangeability≤0.20dB
    Durability1000Mating, max≤0.20dB
    Housing MaterialPlastic or metal
    Operating Temperature-20°C~+70°C
    Storage Temperature-40°C~+85°C
    Alignment SleeveCeramic (ZrO2) or customized
    Channel NumberSimplex, duplex, quad .

    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
